Ground your kinetix 3 drive to the subpanel – Rockwell Automation 2071-Axx Kinetix 3 Component Servo Drive User Manual
Page 15
Kinetix 3 Component Servo Drives 15
Publication 2071-IN001E-EN-P - August 2014

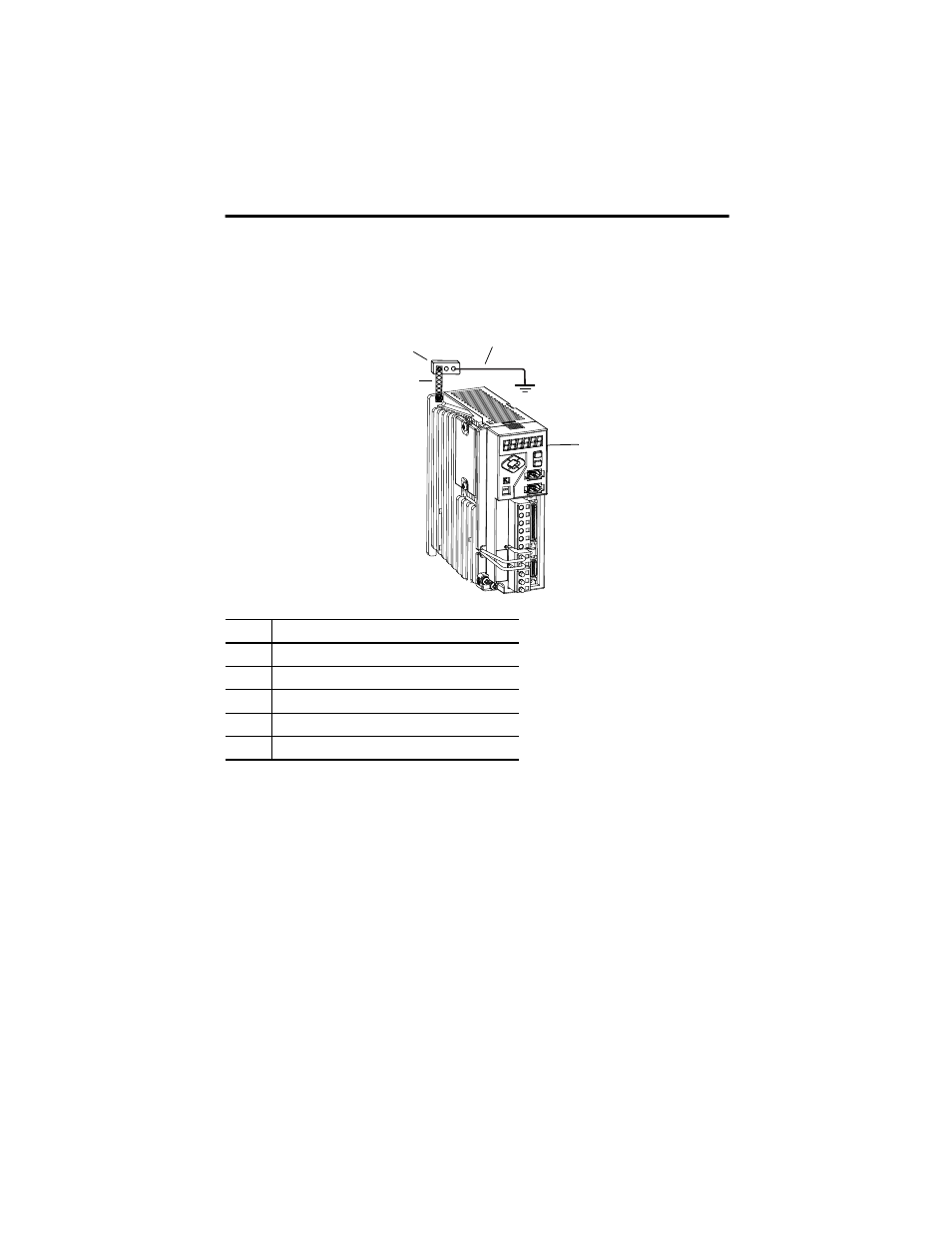

Ground Your Kinetix 3 Drive to the Subpanel
Bond the Kinetix 3 drive to the cabinet ground bus. To ground, attach a braided ground strap or
0.4 mm
2
(12 AWG) solid-copper wire, 100 mm (3.9 in.) long between the top mounting screw
and the bonded cabinet ground.
Item
Description
1
Mounting screw
2
Braided ground strap
3
Bonded cabinet-ground bus
4
Ground grid or power distribution ground
5
2071-AP4 Kinetix 3 drive shown
3
4
2
1
5
