A RENA B ASIC E DITION U SER ’ S G UIDE
16
• •
•
•
•

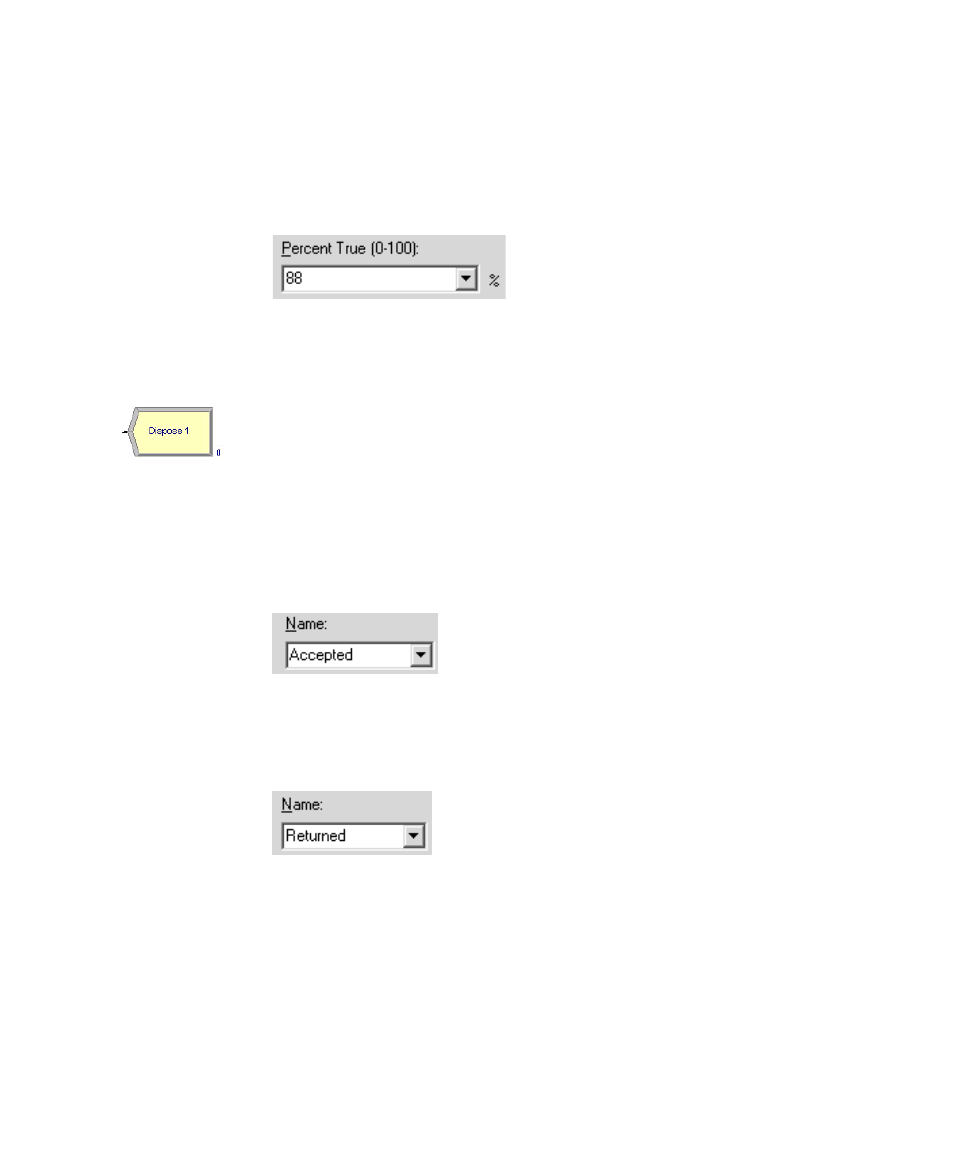

3. For the Percent True field, type 88 to define the percent of entities that will be treated
with a “True” decision (i.e., will depart through the exit point at the right of the Decide
module).
4. Click OK to close the dialog box.
Accepted, Returned (Dispose module)
In our simple process for reviewing mortgage applications, all the work that we’re
interested in is done. Now, we’ll remove the mortgage applications from the model,
terminating the process with a Dispose module. Because there are two possible outcomes
of the mortgage application process—applications can be accepted or returned—we’re
using two Dispose modules that will count the number of applications under each
outcome.
1. Double-click the first Dispose module (connected to the True condition branch of the
Decide module) to open its property dialog box, and in the Name field, type
Accepted.
2. Click OK to close the dialog box.
3. Double-click the other Dispose module to open its property dialog box. In the Name
field, type Returned.
