A RENA B ASIC E DITION U SER ’ S G UIDE
6
• •
•
•
•
The Arena modeling environment
If Arena is not already running, start it from the Windows Start menu and navigate to
Programs > Rockwell Software > Arena. The Arena modeling environment will open

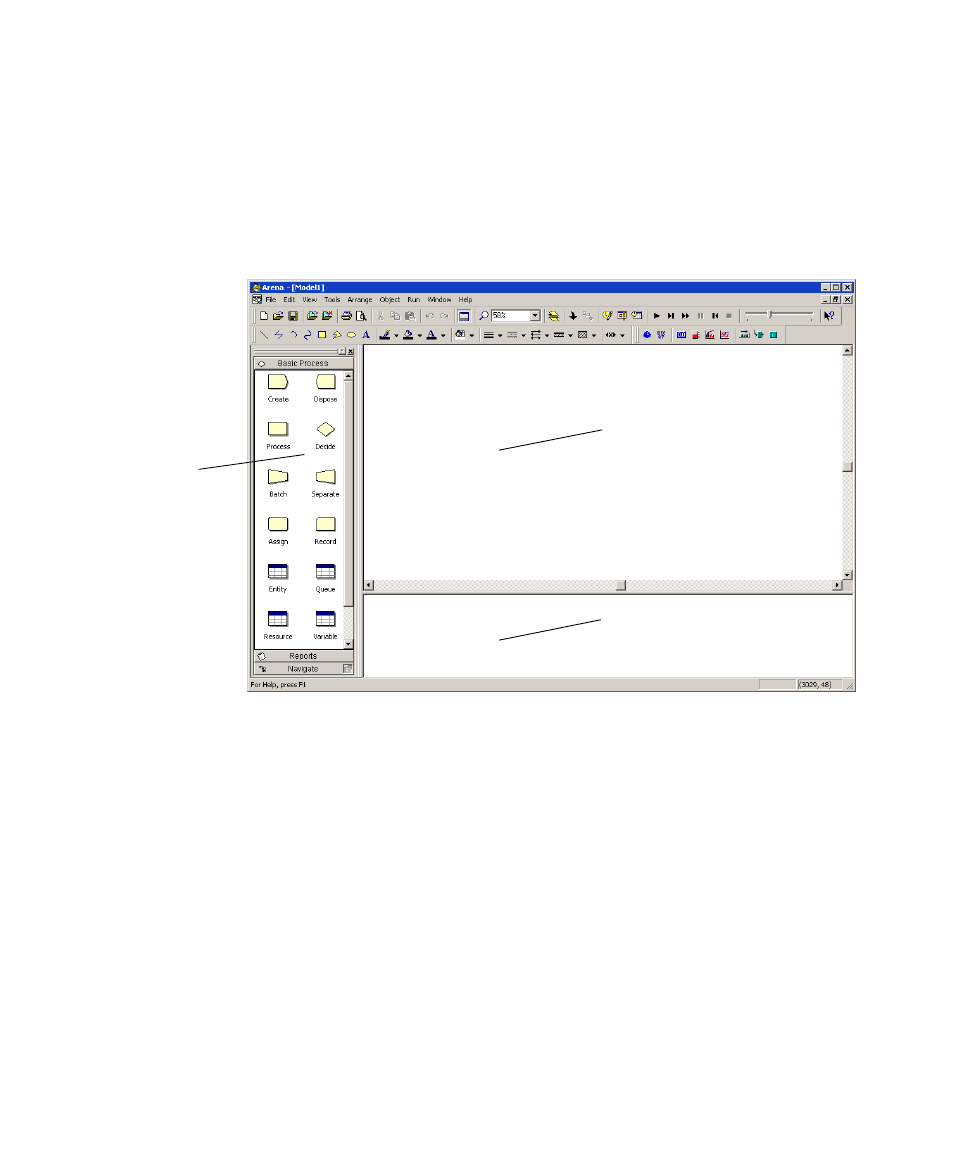

with a new model window, as shown below.
To model your process in Arena, you’ll work in three main regions of the application
window. The Project Bar hosts panels with the primary types of objects that you will work
with:
„
Basic Process panel: Contain the modeling shapes, called modules, that you’ll use to
define your process.
„
Reports panel: Contains the reports that are available for displaying results of simula-
tion runs.
„
Navigate panel: Allows you to display different views of your model, including
navigating through hierarchical submodels and displaying a model thumbnail.
Model window
flowchart view
Model window
spreadsheet view
Project Bar
The Project Bar
usually is docked at
the left of the Arena
application window,
but can tear off or
dock at another
position like any
toolbar.
