A RENA B ASIC E DITION U SER ’ S G UIDE
8
• •
•
•
•
Process the applications
Next in our flowchart is a Process module that represents the Review Application step.
1. Be sure that the Create module is selected so that Arena will automatically connect the
Process to the Create module.

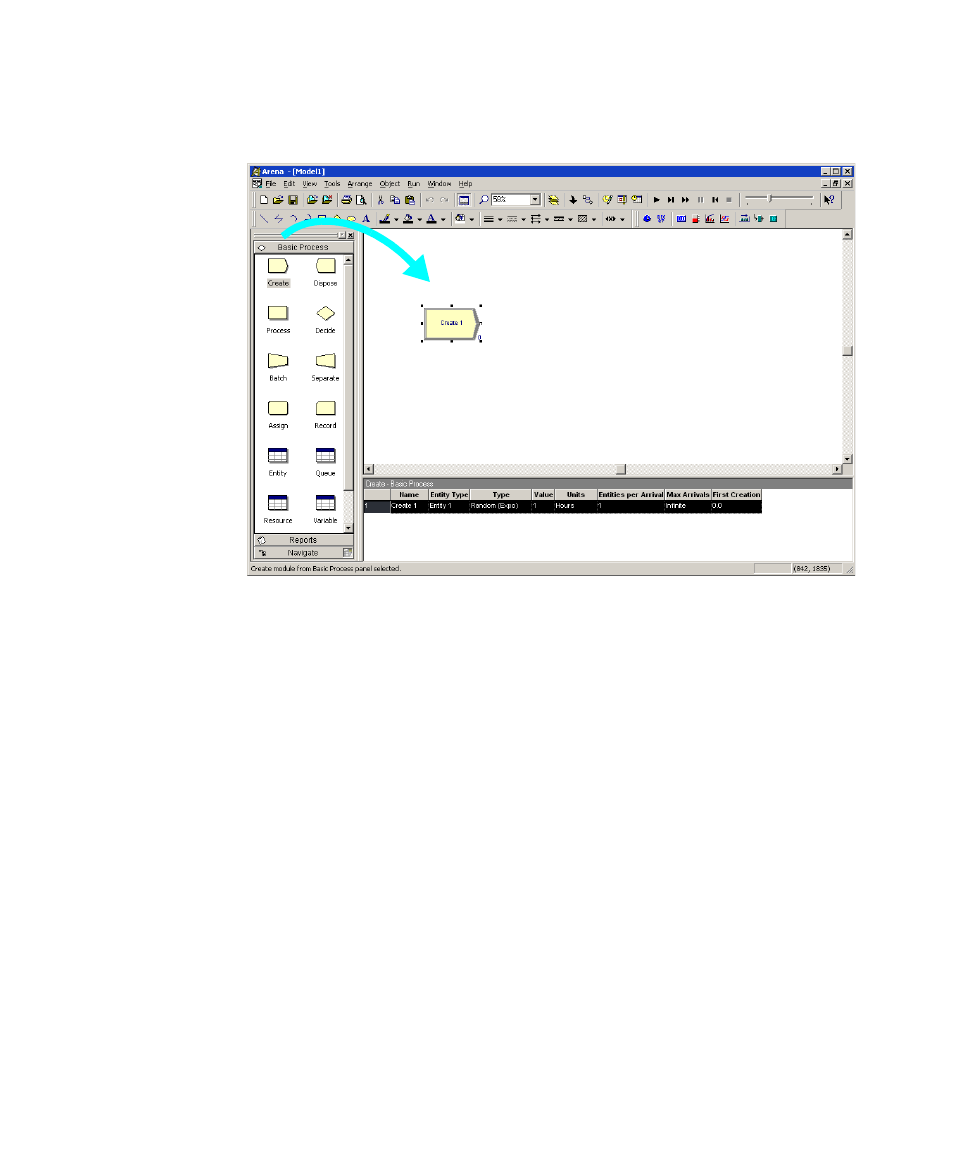

2. Drag a Process module from the Basic Process panel into the model window, placing
it to the right of the Create. Arena will automatically connect the two modules.
As with the Create, the Process module has a default name that we’ll replace later.
Every process flow
starts with a
Create module.
When you simulate
the flowchart,
individual entities
will be created
according to timing
information you
supply in the
Create module
properties. After it’s
created, each entity
moves from the
Create module to
the next shape in
the process flow.
If your Create and
Process weren’t
connected auto-
matically when you
placed the Process,
check the Object >
Auto-Connect menu
to verify that it’s
checked. If it’s not,
select it to turn on
this option.
