Kinetix 6200 and Kinetix 6500 IAM and AM Power Modules 13
Rockwell Automation Publication 2094-IN011D-EN-P - August 2013

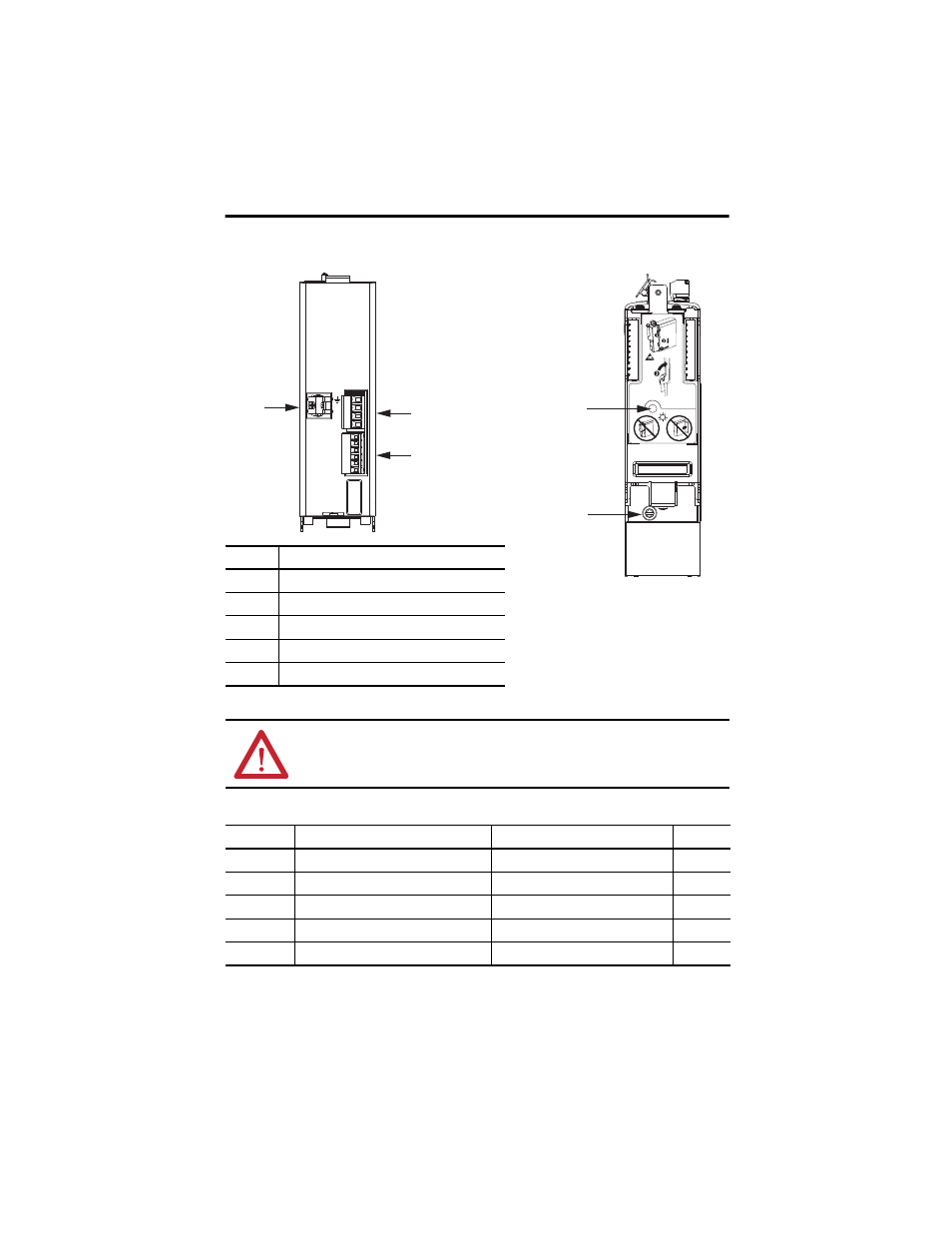

AM Power Module Features and Indicators
IAM/AM Module Connectors
ATTENTION: To avoid damage to equipment, do not mount your Bulletin 2094 control
module to the power module when the Power-applied indicator is on. Remove all input
power from the IAM power module before mounting the control module.
Designator
Description
Connector
Module
CPD
Control input power (drive)
2-position plug/header
IAM
IPD
VAC input power (drive) and DC bus
6-position plug/header
IAM
CED
Contactor enable
2-position plug/header
IAM
MP
Motor power
4-position plug/header
IAM/AM
BC
Motor/resistive brake
6-position plug/header
IAM/AM
1
2
3
W
V
U
MBRK -
MBRK +
COM
PWR
DBRK -
DBRK +
1 2 3 4
1 2 3 4 5 6
5
4
Item
Description
1
Motor cable shield clamp
2
Motor power (MP) connector
3
Motor/resistive brake (BC) connector
4
Power-applied indicator
5
Mounting screw
AM Power Module, Top View
(2094-BMP5-M is shown)
AM Power Module, Front View
(2094-BMP5-M is shown)
