Rockwell Automation 1771-ASB/E Remote I/O Adapter User Manual User Manual
Page 64

Settings for 1771–AS and 1771–ASB Series A, B, C and D Remote I/O Adapters
B–2
Publication 1771ĆUM001A-US-P - February 2000
Applies to:
Description
Figure
B.16
I/O Chassis Backplane Switch Assembly Settings for Remote Adapter
Module in PLCĆ5 Family Processor System
1771-ASB series C andD
B.17
I/O Chassis Backplane Switch Assembly Settings for Remote Adapter
Module in PLCĆ5 Family, SLC and ControlLogix Processor Systems in
Remote Configuration
1771-ASB series C andD
B.18
I/O Chassis Backplane Switch Assembly Settings for Remote Adapter
Module in PLCĆ5/250 Processor System
1771-ASB series C andD
Figure B.1

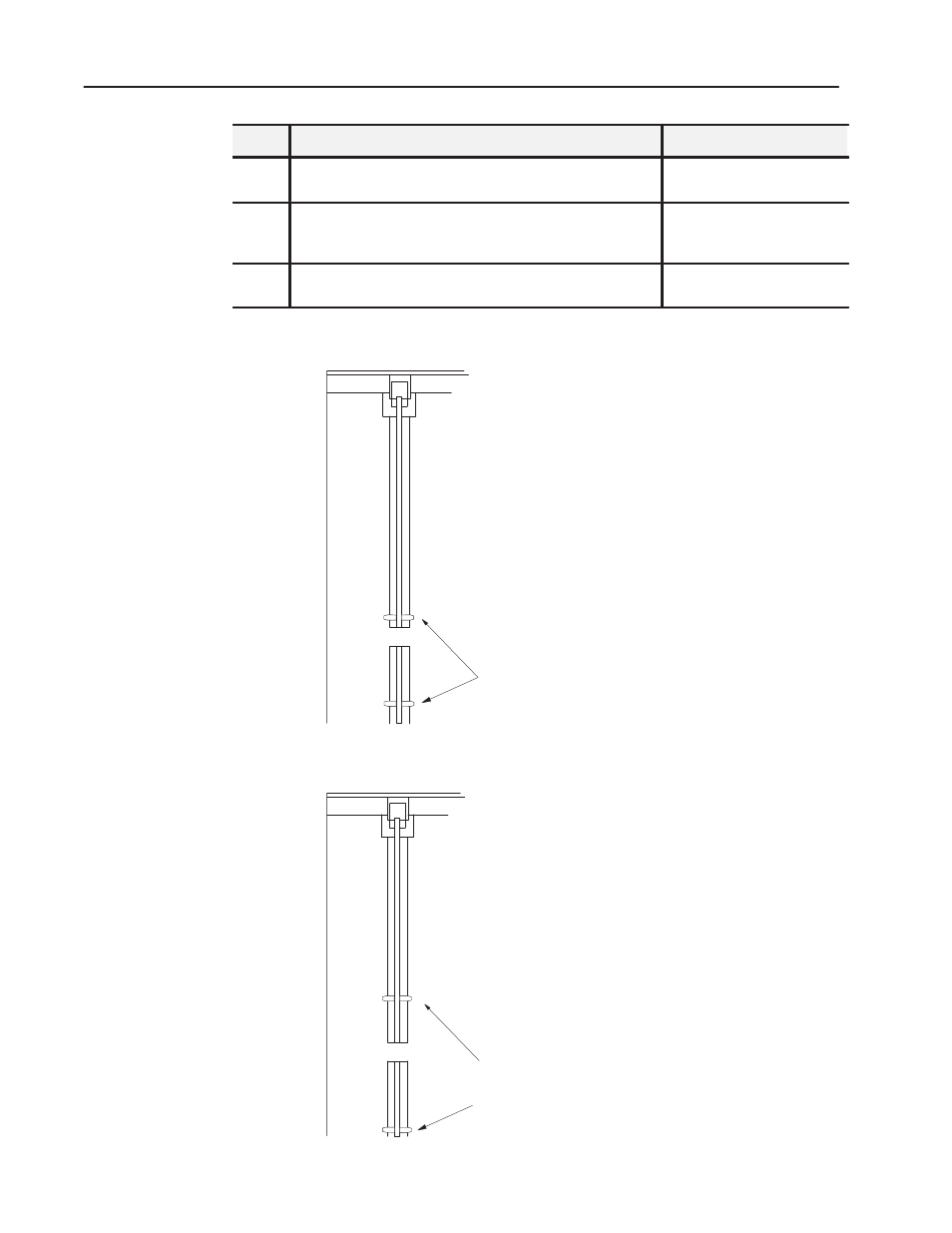

Keying Diagram for 1771-ASB series A, B, C and D
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
2
4
6
8
10
12
14
16
8
0
22
Insert keying bands between:
upper connector - 54 and56
lower connector - 16 and18
2
1
12252
Figure B.2
Keying Diagram for 1771-AS Remote I/O Adapter
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
2
4
6
8
10
12
14
16
8
0
22
Insert keying bands between:
upper connector - 44 and46
lower connector - 20 and22
2
1
12252
