6 ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B

Publication 1792D-IN050A-EN-P - February 2001

Please refer to publication 889-CP001A-EN-P and 889-TD001A-EN-P
for Rockwell Automation cables and cord sets offerings.

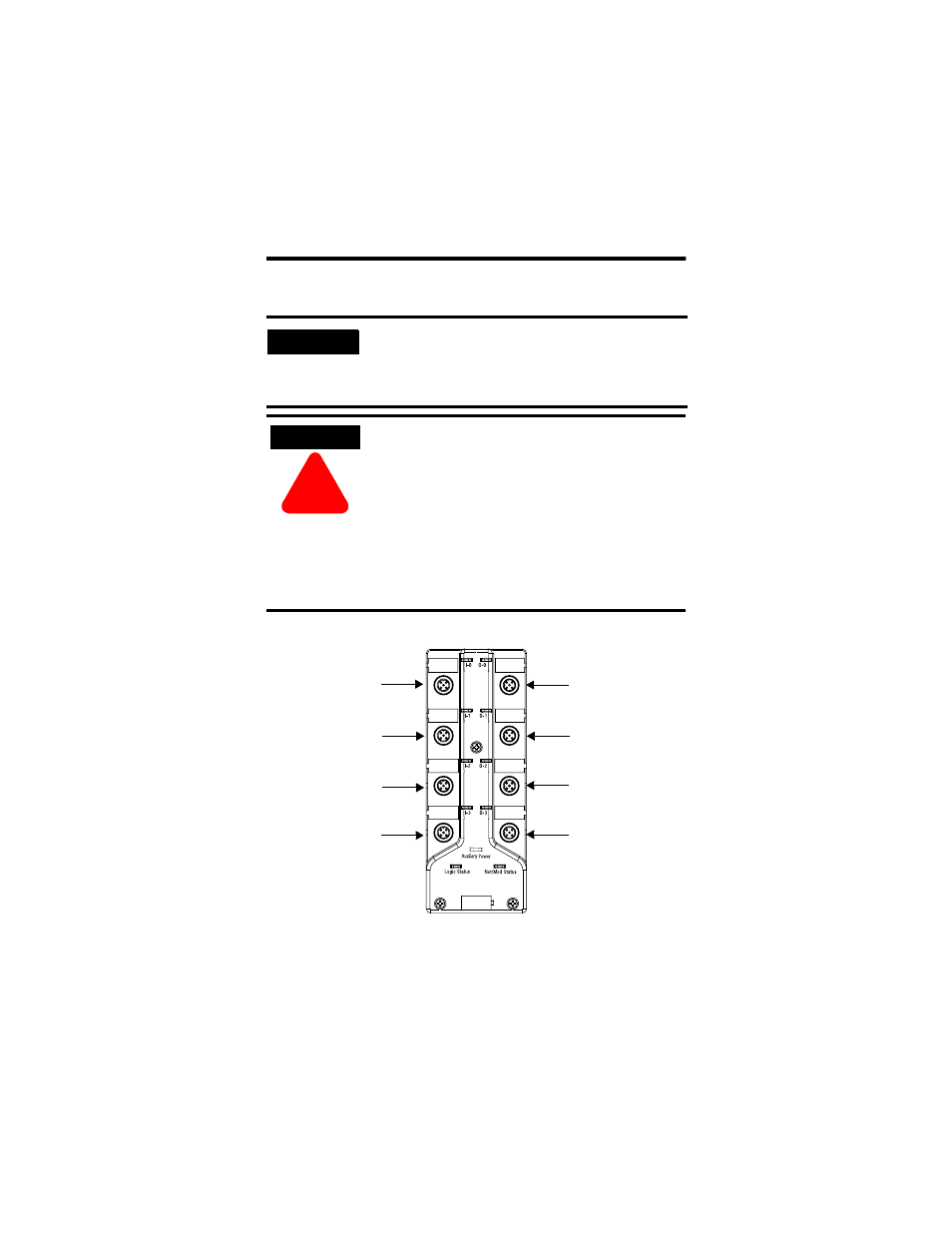

I/O connectors for this module are shown below.

IMPORTANT

If the devices (sensors) connected to the input
connections require Class 2 power to operate, the
DeviceNet connections of this equipment must be
powered by a Class 2 source.

ATTENTION

ÿ

Make sure all connectors and caps are
securely tightened to properly seal the
connections against leaks and maintain IP67
requirements.

For maximum noise immunity, input and
output cable return wires must be properly
terminated. When inputs and outputs are
connected in loopback, return wires should
be connected together.

I/O cable length should be less than 30
meters.

42760

Input 0

Input 1

Input 2

Input 3

Output 0

Output 1

Output 2

Output 3

Connector A

Connector B

Connector C

Connector D

Connector E

Connector F

Connector G

Connector H
