ArmorBlock MaXum 4 Input / 4 Output Module with 8 Connectors, Series B 5

Publication 1792D-IN050A-EN-P - February 2001

Note: Dimensions change according to the cable base and
module combination used.

Connect the Input / Output Cord Sets to the MaXum
Module

This module uses 5 pin micro (12mm) style PCB mounted connectors.

Eight micro caps cover the connectors on your module. Remove the
caps and connect your cord sets to the appropriate ports.

Use the micro caps to cover and seal unused ports. Pinout diagrams
for the connectors are shown next.

Align the
screws to
properly
assemble the
module to the
base.

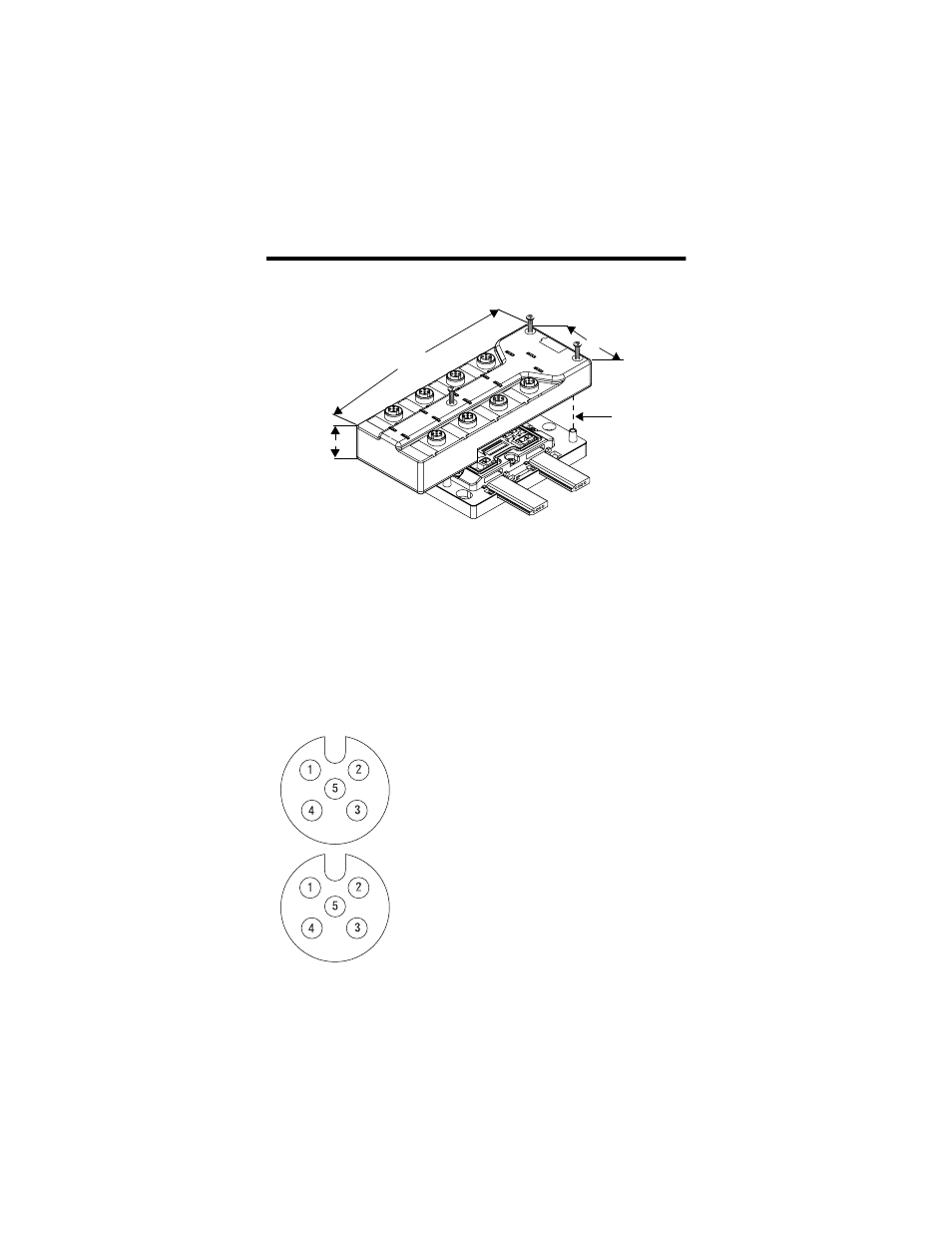

Cable Base 1792D-CBFM is
used for this example.

Assembled
dimensions in (mm)

1.9 (48.26)

2.7 (68.6)

6.85 (174mm)

42759

Input Micro-Connector

(View into Socket)

Pin 1 Sensor Source voltage

Pin 3 Return Logic Ground

1

Pin 4 Input A
Pin 5 Not Used

Output Micro-Connector

(View into Socket)

Pin 1 Not Used
Pin 3 Auxiliary Power Ground
Pin 4 Output A
Pin 5 Not Used

41452

1

Logic Ground is approximately 0.4V

above DeviceNet V- measured at the
module.
