6 Compact I/O Thermocouple/mV Input Module
Publication 1769-IN026C-EN-P - February 2010

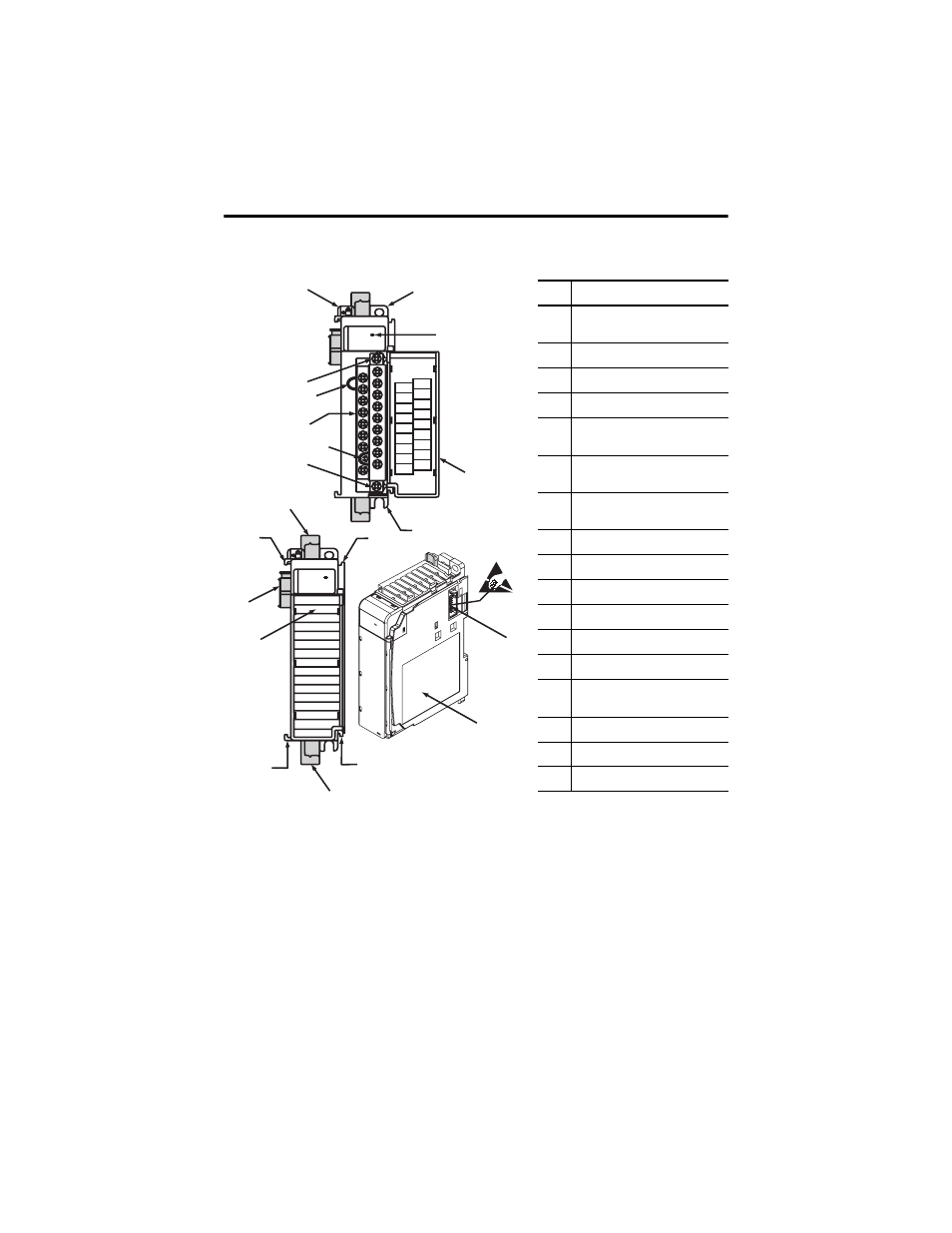

Module Description
Item Description
1 Bus lever
(with locking function)
2a Upper-panel mounting tab
2b Lower-panel mounting tab
3 Module status indicator
4 Module door with terminal
identification label
5a Movable bus connector with
female pins
5b Stationary bus connector with
male pins
6 Nameplate label
7a Upper tongue-and-groove slots
7b Lower tongue-and-groove slots
8a Upper DIN-rail latch
8b Lower DIN-rail latch
9 Write-on label (user ID tag)
10 Removable terminal block (RTB)
with finger-safe cover
10a RTB upper-retaining screw
10b RTB lower-retaining screw
11 CJC sensors
10a
10b
4
10
11
11
2b
3
2a 1
5a
9 5b
6
7a
7b
8b
7b
8a
7a
1769-IT6
DANGER
Do Not Remove RTB Under Power Unless Area is Non-Hazardous
Ensure Adjacent
Bus Lever is Unlatched/Latched
Before/After
Removing/Inserting Module
CJC 0-
IN 5+
NC
CJC 1+
IN 3+
IN 4+
IN 4-
IN 5-
CJC 0+
NC
IN 0-
IN 1-
IN 2-
IN 0+
IN 1+
IN 2+
CJC 1-
IN 3-
OK
Thermocouple/mV
OK
Thermocouple/mV
