Ground the thermocouple/mv input module – Rockwell Automation 1769-IT6 Compact I/O Thermocouple/mV Input Module User Manual
Page 15

Compact I/O Thermocouple/mV Input Module 15
Publication 1769-IN026C-EN-P - February 2010

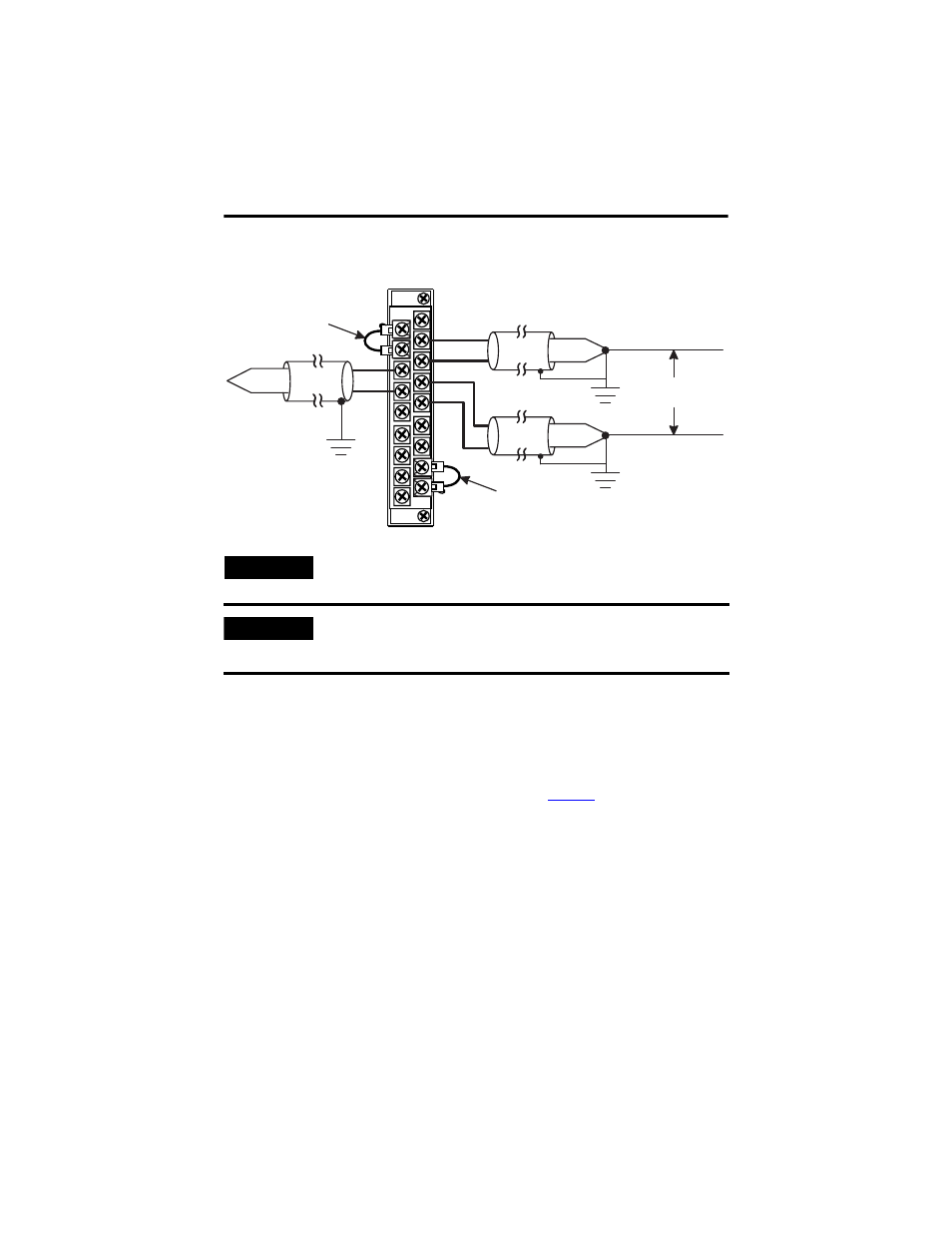

Terminal Block with CJC Sensors and Thermocouple Junctions
Ground the Thermocouple/mV Input Module
panel. Additional grounding connections from the module’s mounting tabs or DIN rail (if
used) are not required unless the mounting surface cannot be grounded. Refer to Industrial
Automation Wiring and Grounding Guidelines, publication
1770-4.1
, for additional
information.
TIP
When using an ungrounded thermocouple, the shield must be connected to ground at the
module end.
IMPORTANT
When using grounded and/or exposed thermocouples that are touching electrically
conductive material, the ground potential between any two channels cannot exceed
±10V DC, or temperature readings will be inaccurate and the module may be damaged.
NC
IN 0+
IN 0-
IN 3+
IN 1 +
IN 3-
IN 1-
IN 4+
IN 2+
IN 4-
IN 2-
IN 5+
IN 5-
NC
+
-
+
-
+
-
CJC 0+
CJC 0-
CJC 1-
CJC 1+
Within 10V DC
CJC Sensor
Grounded Thermocouple
Ungrounded
Thermocouple
CJC Sensor
Grounded Thermocouple
