Compact I/O Thermocouple/mV Input Module 13

Publication 1769-IN026C-EN-P - February 2010

Wire the Finger-safe Terminal Block

When wiring the terminal block, keep the finger-safe cover in place.

1. Loosen the terminal screws to be wired.

2. Route the wire under the terminal pressure plate.

You can use the bare wire or a spade lug. The terminals accept a 6.35 mm (0.25 in.)
spade lug.

3. Tighten the terminal screw, making sure the pressure plate secures the wire.

Recommended torque when tightening terminal screws is 0.68 N•m (6 lb•in).

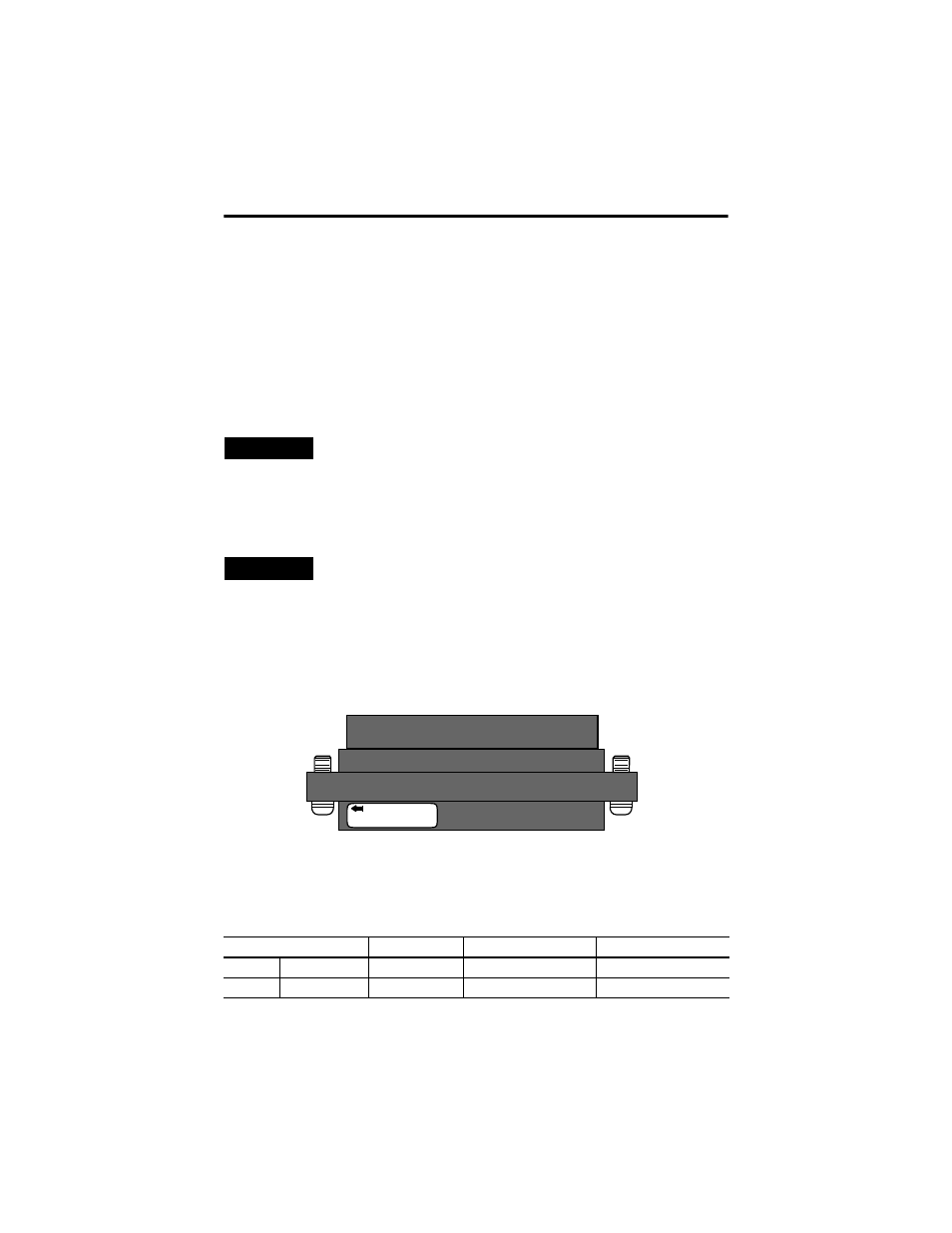

If you remove the terminal block from the module, use the write-on label on the side
of the terminal block to identify the module location and type.

Wire Size and Terminal Screw Torque

Each terminal accepts as many as two wires with these restrictions.

TIP

The terminal screws are non-captive. Therefore, it is possible to use a ring lug
(1/4 in. maximum o.d. with a 0.139 in. minimum i.d. (M3.5)) with the module.

TIP

If you need to remove the finger-safe cover, insert a screwdriver into one of the square
wiring holes and gently pry the cover off. If you wire the terminal block with the
finger-safe cover removed, you will not be able to put it back on the terminal block
because the wires will be in the way.

Wire Type

Wire Size

Terminal Screw Torque

Retaining Screw Torque

Solid

Cu-90 °C (194 °F) 14…22 AWG

0.68 N•m (6 lb•in)

0.46 N•m (4.1 lb•in)

Stranded

Cu-90 °C (194 °F) 16…22 AWG

0.68 N•m (6 lb•in)

0.46 N•m (4.1 lb•in)

SLOT # _____

MODULE TYPE ______
