Compact 1769-OF4VI Isolated Analog Output Module 9
Rockwell Automation Publication 1769-IN076B-EN-P - August 2010

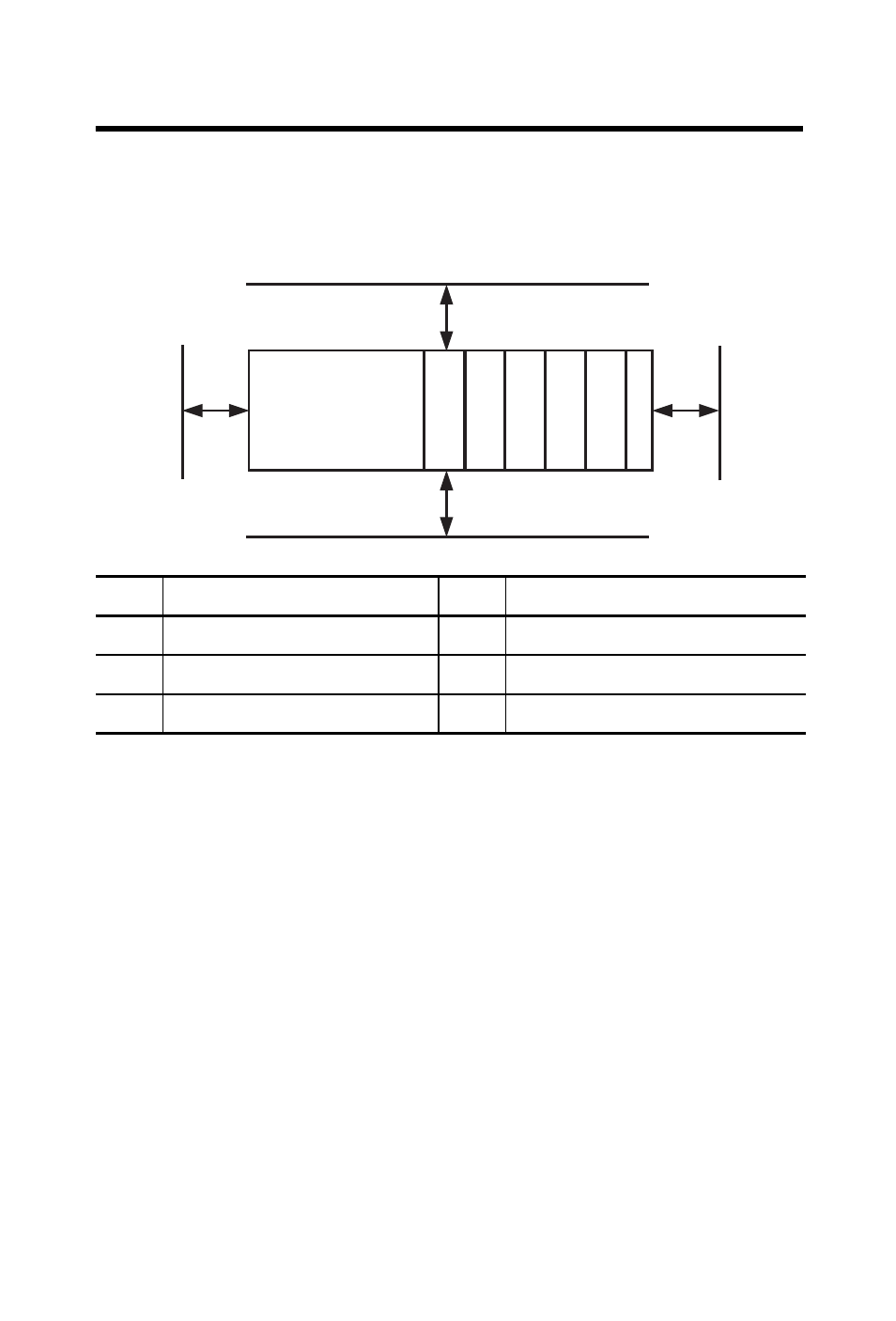

Minimum Spacing
Maintain spacing from enclosure walls, wireways, and adjacent equipment.
Allow 50 mm (2 in.) of space on all sides for adequate ventilation.
Panel Mounting
Mount the module to a panel using two screws per module. Use M4 or #8
panhead screws. Mounting screws are required on every module.
Item Description Item Description
1 Top 4 Side
2 Compact I/O modules 5 Bottom
3 End cap 6 Host controller
1
5
4 4
6
2 2 2 2 2 3
