10 Compact 1769-OF4VI Isolated Analog Output Module
Rockwell Automation Publication 1769-IN076B-EN-P - August 2010

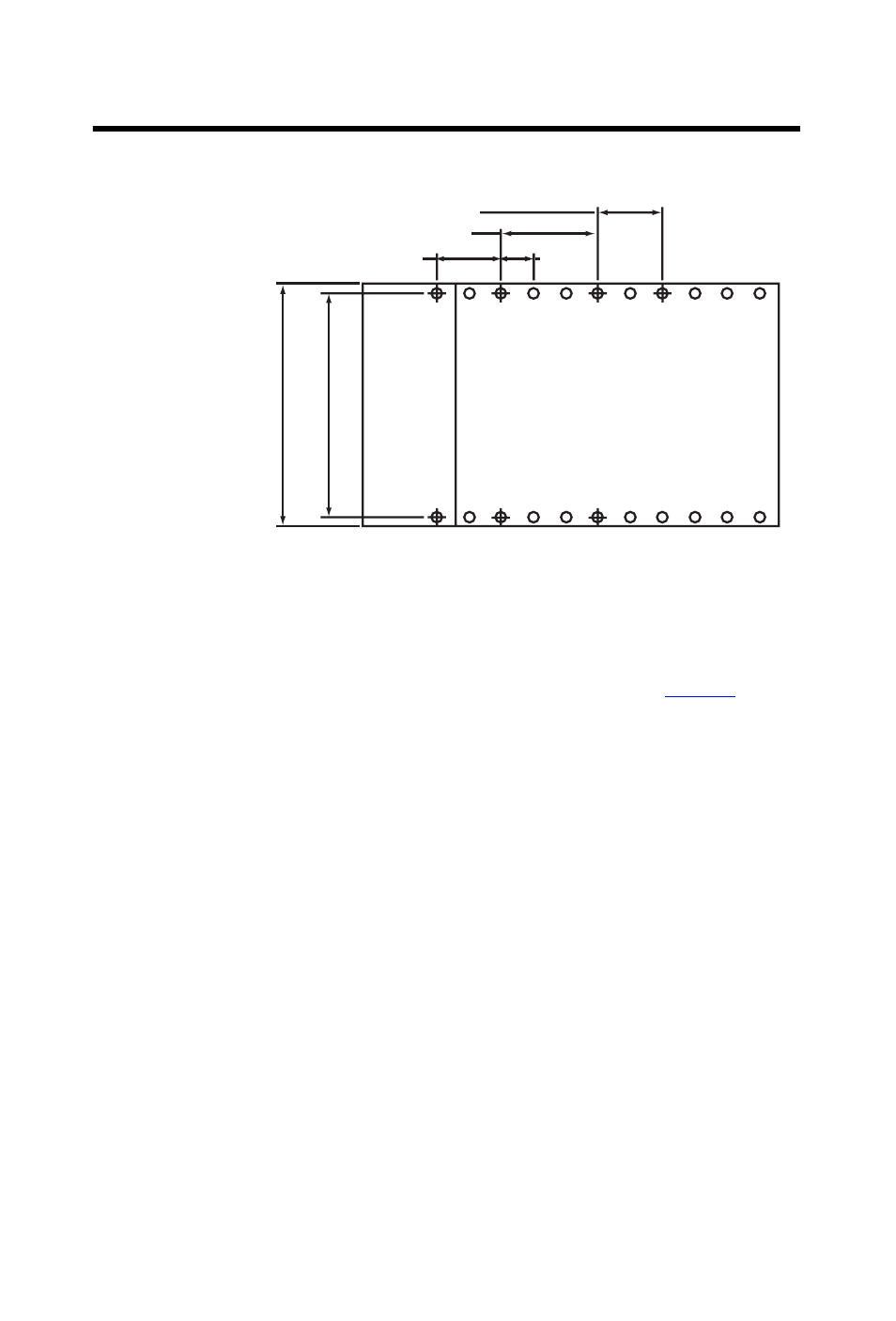

Panel Mounting Using the Dimensional Template
Panel Mounting Procedure Using Modules as a Template
The following procedure lets you use the assembled modules as a template for
drilling holes in the panel. If you have sophisticated panel mounting
equipment, you can use the dimensional template provided on
page 10 . Due
to module mounting hole tolerance, it is important to follow these
procedures.
1. On a clean work surface, assemble no more than three modules.
2. Using the assembled modules as a template, carefully mark the center of
all module-mounting holes on the panel.
3. Return the assembled modules to the clean work surface, including any
previously mounted modules.
4. Drill and tap the mounting holes for the recommended M4 or #8 screw.
5. Place the modules back on the panel, and check for proper hole
alignment.
Spacing for single-wide modules 35mm (1.378 in.)
Spacing for one-and-a half-wide modules 52.5mm (2.067 in.)
Refer to host controller documentation for this dimension.
Host Controller
Note: Overall hole spacing
tolerance:
±
0.4mm (0.016 in.).
30535-M
