DeviceNet Functions
Object Model The Pico DeviceNet Interface is based on the Communications
Adapter Profile according to the ODVA specifications (Release V2.0).
The DeviceNet object model can be used to describe all 1760-DNET
functions. The object model reflects the principle of communication at
the application layer. This manual deals in the following only with
objects relevant for your application. Primary topic is the
manufacturer-specific class Pico object.

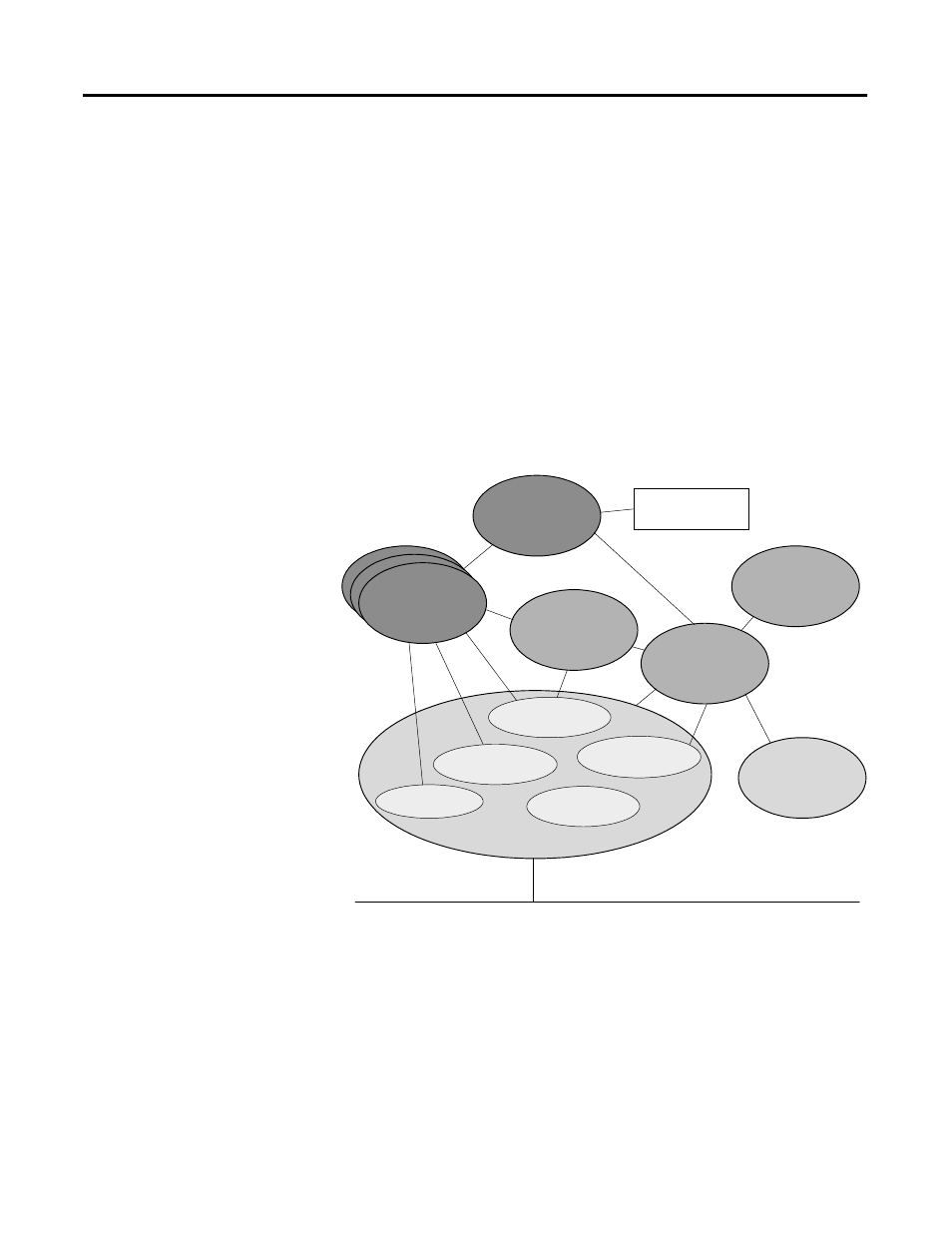

Figure 3.5 DeviceNet Objects
The DeviceNet objects in the illustration can be compiled again as
‘Management objects’, ‘Connection objects’ and ‘Manufacturer-specific
objects’.
Object
Polled I/O
Connection
COS/Cyclic I/O
Connection
Bit Strobed I/O
Connection
Explicit Message
Connection
Dynamic
Connection
DeviceNet
Object
Message Router
Object
Acknowledge Handler
Object
Identity
Object
Pico
Object
Pico-LINK
Protocol Handler
Assembly
Object
Connection Object
DeviceNet
