40 Publication 1769-UM019A-EN-P - October 2008
Chapter 3 Module Data, Status, and Channel Configuration
Configuration Data File The configuration file lets you determine how each individual input
channel will operate. Parameters such as the input type and data
format are set up by using this file. This data file is writable and
readable. The default value of the configuration data table is all zeros.

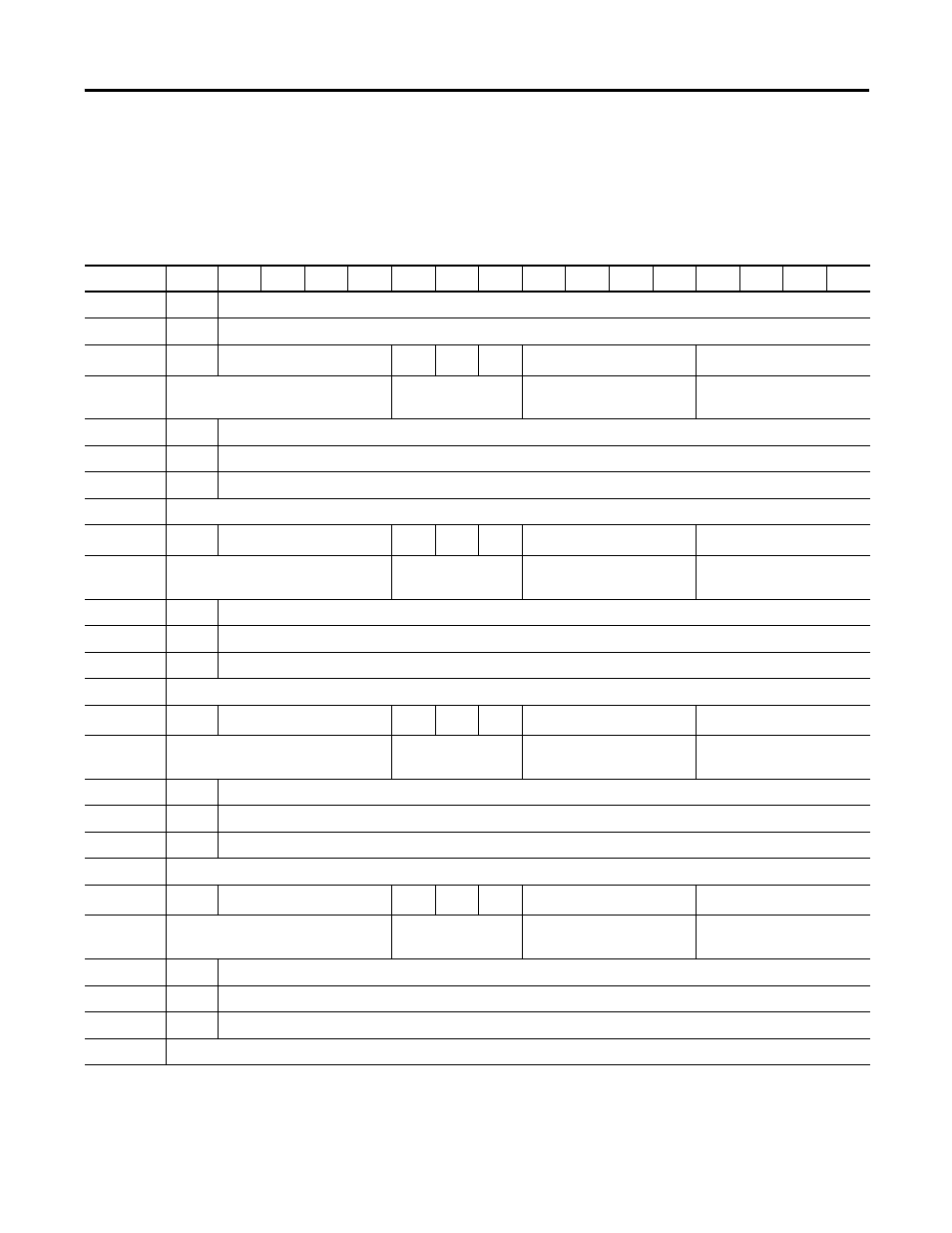

Configuration Data File
Word/Bit 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00
Word 0 0 Real Time Sample Value
Word 1 ETS Reserved
Word 2 EC Reserved EA AL
EI
(1) Reserved Input Filter Sel Ch0
Word 3 Reserved Input Data Format
Ch0 Reserved Input Type/Range Select Ch0
Word 4 SGN Process Alarm High Data Value Channel 0
Word 5 SGN Process Alarm Low Data Value Channel 0
Word 6 SGN Alarm Dead Band Value Channel 0
Word 7 Reserved
Word 8 EC Reserved EA AL
EI
(1) Reserved Input Filter Sel Ch1
Word 9 Reserved Input Data Format
Ch1 Reserved Input Type/Range Select Ch1
Word 10 SGN Process Alarm High Data Value Channel 1
Word 11 SGN Process Alarm Low Data Value Channel 1
Word 12 SGN Alarm Dead Band Value Channel 1
Word 13 Reserved
Word 14 EC Reserved EA AL
EI
(1) Reserved Input Filter Sel Ch2
Word 15 Reserved Input Data Format
Ch2 Reserved Input Type/Range Select Ch2
Word 16 SGN Process Alarm High Data Value Channel 2
Word 17 SGN Process Alarm Low Data Value Channel 2
Word 18 SGN Alarm Dead Band Value Channel 2
Word 19 Reserved
Word 20 EC Reserved EA AL
EI
(1) Reserved Input Filter Sel Ch3
Word 21 Reserved Input Data Format
Ch3 Reserved Input Type/Range Select Ch3
Word 22 SGN Process Alarm High Data Value Channel 3
Word 23 SGN Process Alarm Low Data Value Channel 3
Word 24 SGN Alarm Dead Band Value Channel 3
Word 25 Reserved
