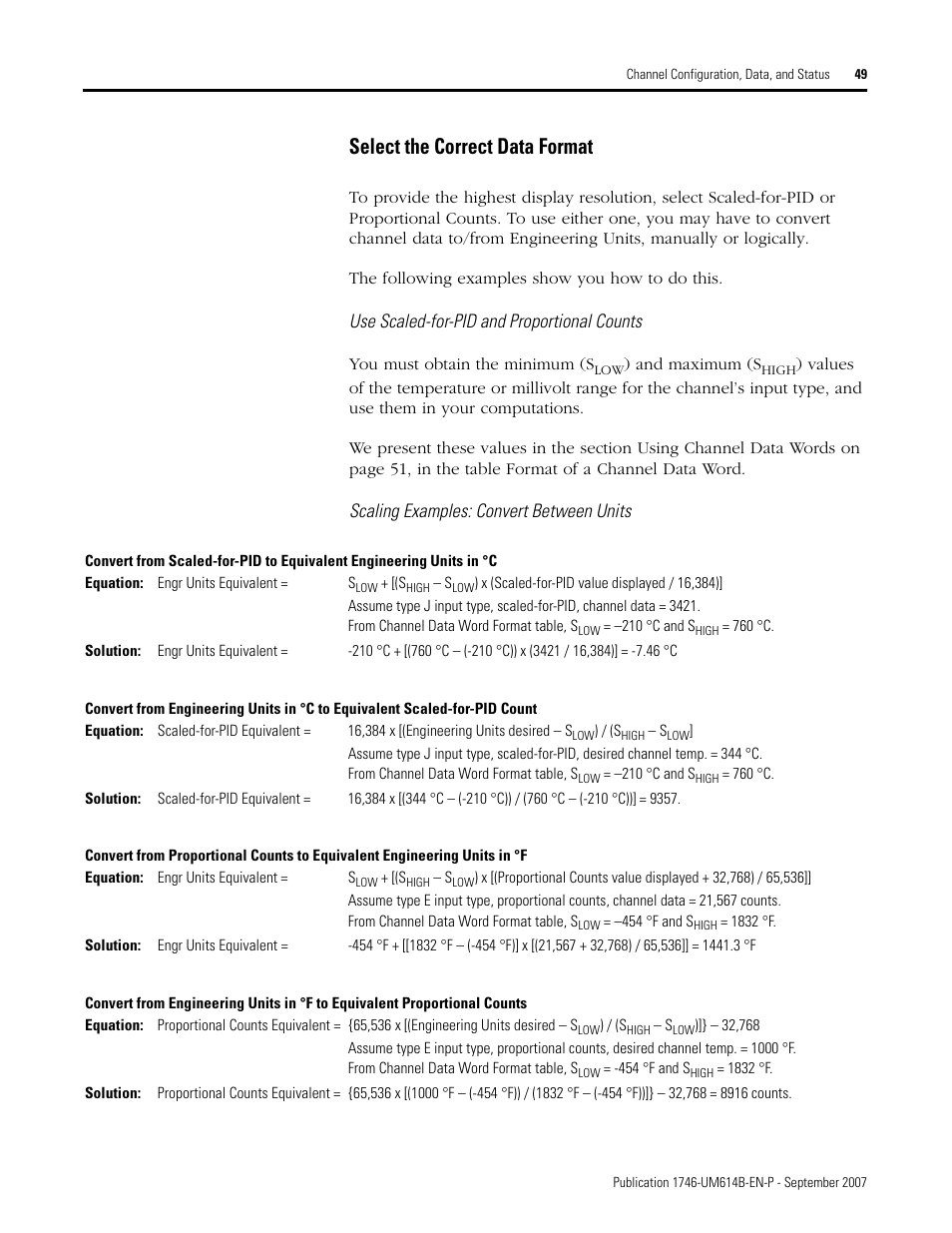

Select the correct data format, Use scaled-for-pid and proportional counts, Scaling examples: convert between units – Rockwell Automation 1746-INT4 Thermocouple/MV Isolated/ User Manual User Manual
Page 49
