Page 8

8
Publication
1756-IN612B-EN-P - December 2009
To install these products, refer to these publications.
Determine Module Slot Location
Install the module in any slot in the ControlLogix chassis. You can install
multiple 1756-EN2TR or 1756-EN3TR modules in the same chassis. The

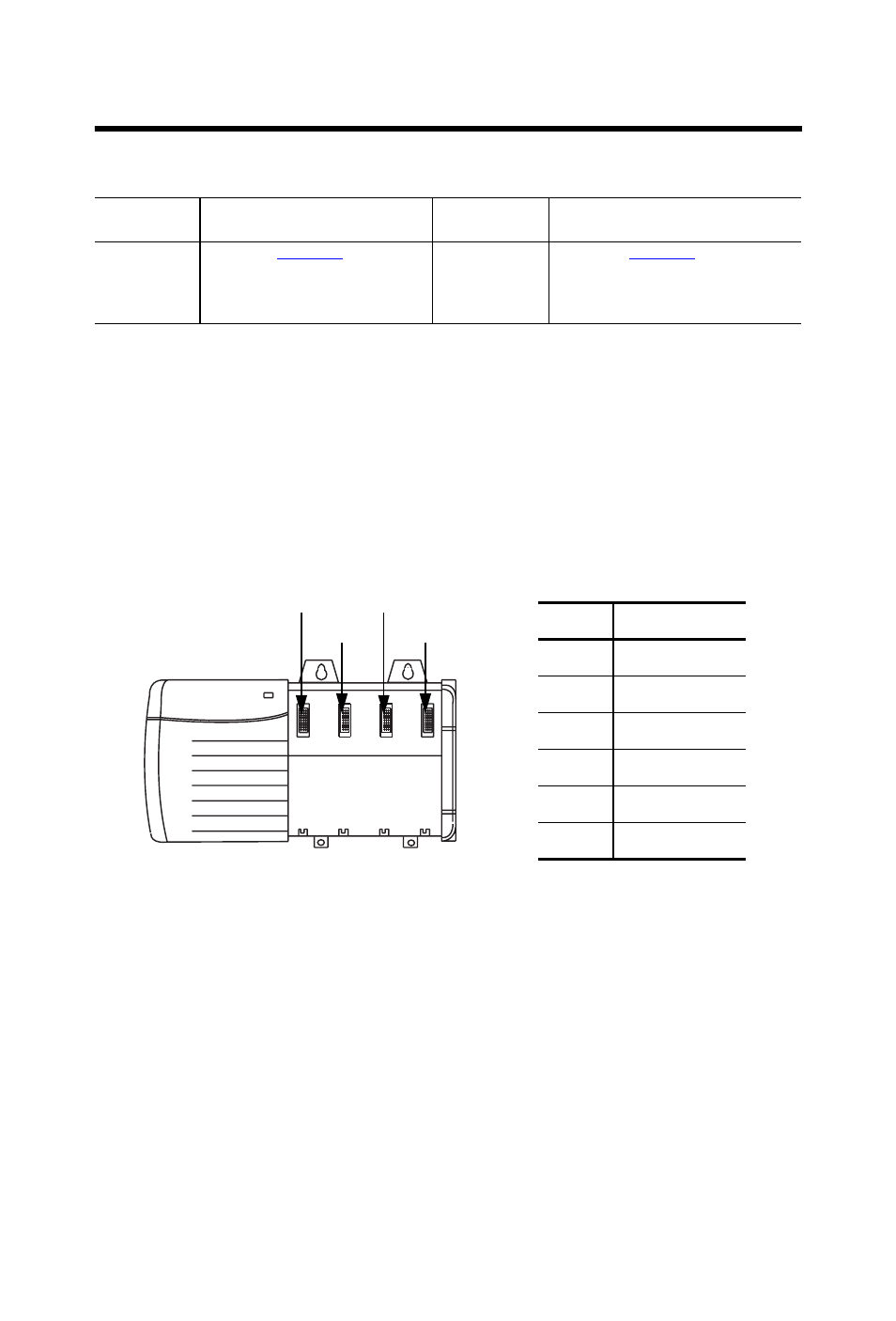

following figure shows chassis slot numbering in a 4-slot chassis. Slot 0 is the
first slot and is always the leftmost slot in the rack.
1
4
5
6
2
20806
3
Item
Description
1
Power supply
2
Chassis
3
Slot 0
4
Slot 1
5
Slot 2
6
Slot 3
Set the Network Address
The module is shipped with the rotary switches set to 999 and BOOTP
enabled. You can set the network Internet Protocol (IP) address three ways.
• Use the rotary switches on the top of the module.
• Use a BOOTP server or Dynamic Host Configuration Protocol
(DHCP) server.
• Use Rockwell Automation RSLinx Classic or RSLogix 5000 software.
Chassis Type
Chassis Installation Instructions
Power Supply
Power Supply Installation
Instructions
1756-A4/B
1756-A7/B
1756-A10/B
1756-A13/B
Publication
1756-PA72/C,
1756-PB72/B,
1756-PA75/B,
1756-PB75/B
Publication
