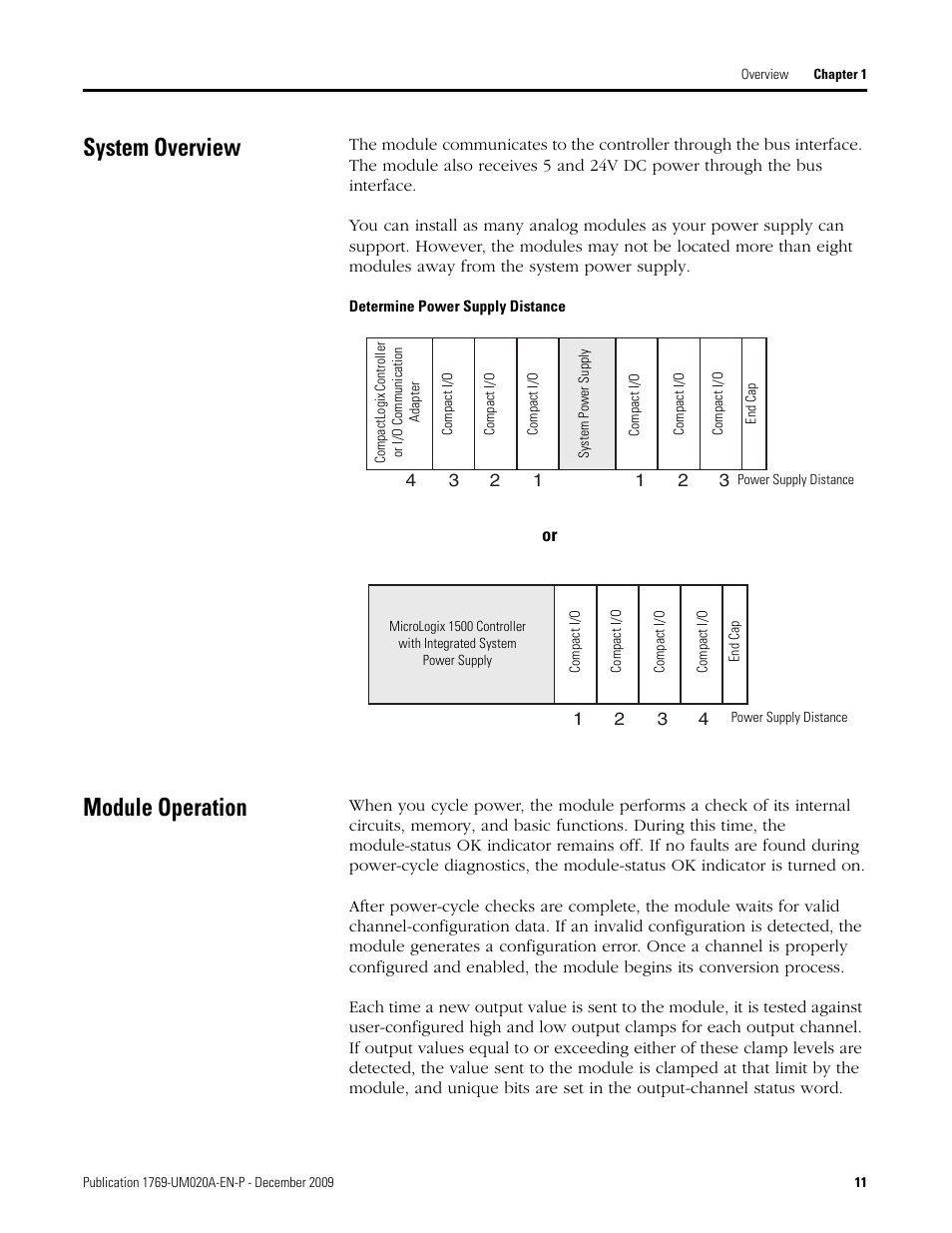

System overview, Module operation, System overview module operation – Rockwell Automation 1769-OF4 Compact Analog Output Module User Manual
