Page 19

INSTALLATION 19

5. Install a pen in the lower left penholder of the plotter. Install the

appropriate marker card in the respective plate location.
Hint: You can avoid wasting marker cards during this calibration by
taping a clear transparency over the entire marker card.

6. Next, select the "File" menu,

then "Plot..." or press the

button

on the toolbar ; the

Plot window then appears
(make sure that the Plotter is
switched on and loaded with
the appropriate Marker Card).

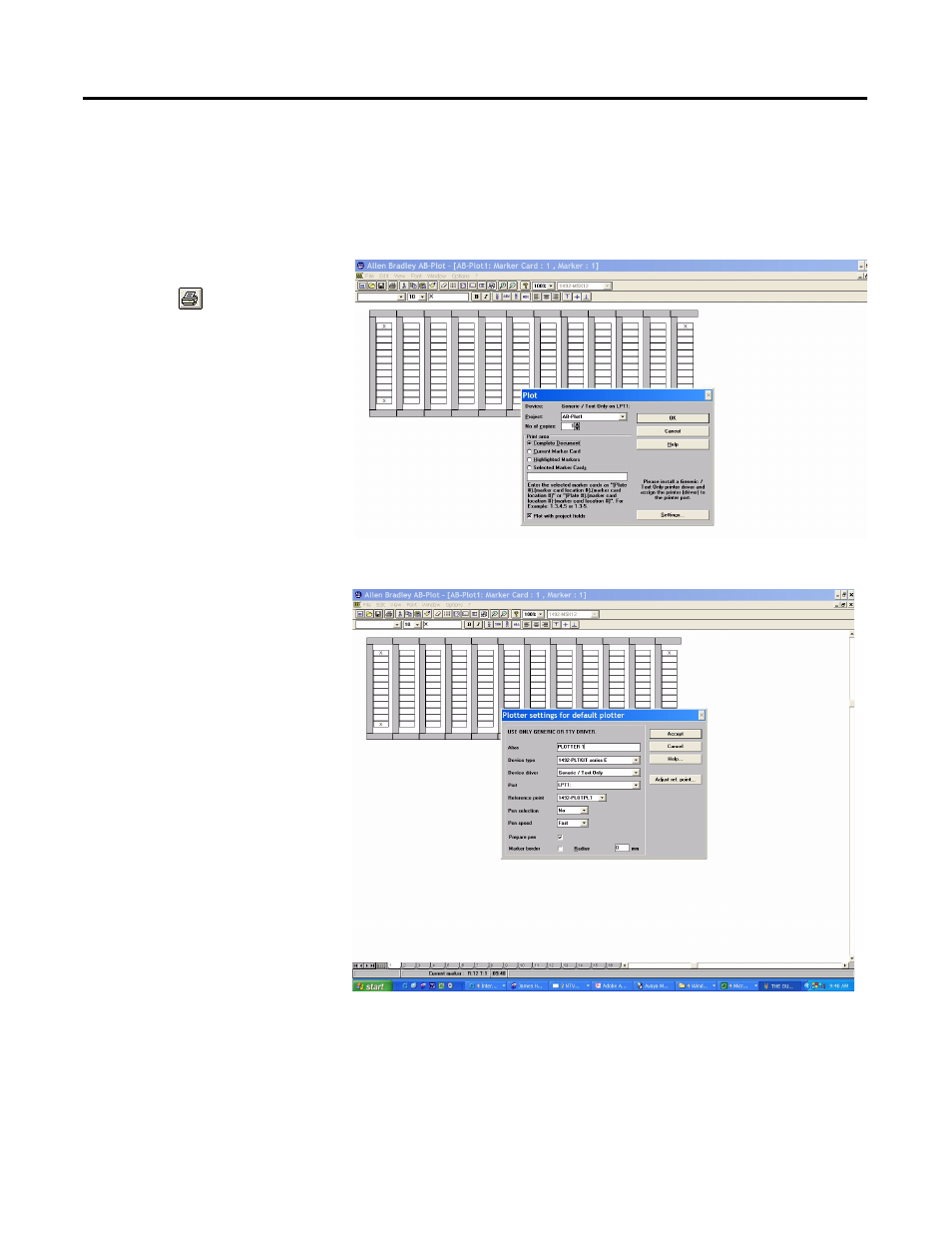

Figure 26 The Plot Window

7. Click on the "Settings..."

button; the settings for the
default plotter window will
open, at which point you may
set various plotter settings.
Note: Refer to Figure 27 The
Plotter Settings Window
(Parallel Port Connection) if
you connected using a parallel
port.
Refer to Figure 28 The Plotter
Settings Window for Default
Plotter (USB Connection) if
you connected using a USB
port.

Figure 27 The Plotter Settings Window (Parallel Port Connection)
