Rockwell Automation 700-HX Multifunction Digital Timer - Manual (Page 23)

Publication 700-UM002B-EN-D - June 2010

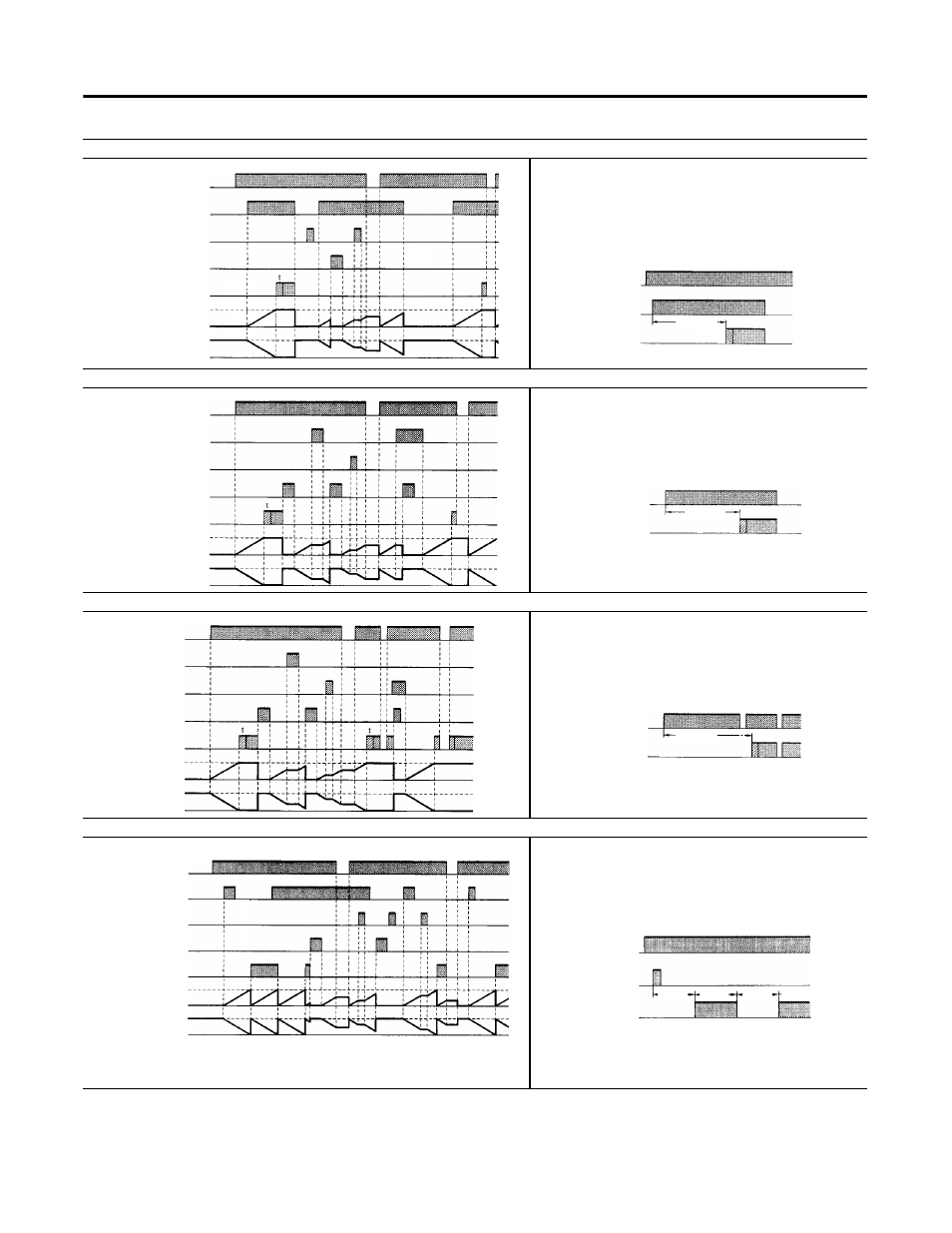

3-12 Functions
Output Mode A-1: Signal ON-Delay 2 (Timer resets when power comes ON.)
Output mode A-2: Power ON Delay 1 (Timer resets when power comes ON)
Output mode A-3 Power ON Delay 2 (Timer does not reset when power comes ON)
Output mode B: Repeat Cycle 1 (Timer resets when power comes ON.)
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
Timing starts when the start signal goes ON, and is
reset when the start signal goes OFF.
While the start signal is ON, the timer starts when the
power comes ON or when the reset input goes OFF.
The control output is controlled using a sustained or
one-shot time period.
*Output is instantaneous when setting is 0.
Basic Operation
Power
Start signal
input
Timing
Output
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram UP
DOWN
0
0
Set value
Timing starts when the reset input goes OFF.
The start signal disables the timing function (i.e., same
function as the gate input).
The control output is controlled using a sustained or
one-shot time period.
*Output is instantaneous when setting is 0.
Basic Operation
Power
Timing
Output
.
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
t
Timing starts when the reset input goes OFF.
The start signal disables the timing function (i.e.,
same function as the gate input).
The control output is controlled using a sustained or
one-shot time period.
*Output is instantaneous when setting is 0.
Basic Operation
Power
Timing
Output
Sustained
.
Power
Start signal
Gate
Reset
Control output
Set value
Timing
diagram
UP
DOWN
0
0
Set value
Sustained
Output Timing starts when the start signal goes ON.
The status of the control output is reversed when time
is up (OFF at start).
While the start signal is ON, the timer starts when the
power comes ON or when the reset input goes OFF.
* Normal output operation will not be possible if the
set time is too short.
Set the value to at least 100 ms (contact output
type).
** Start signal input is disabled during timing.
Basic Operation
Power
**
Start signal
input
Timing
Output
Timing Timing Timing
