Functions 3-9

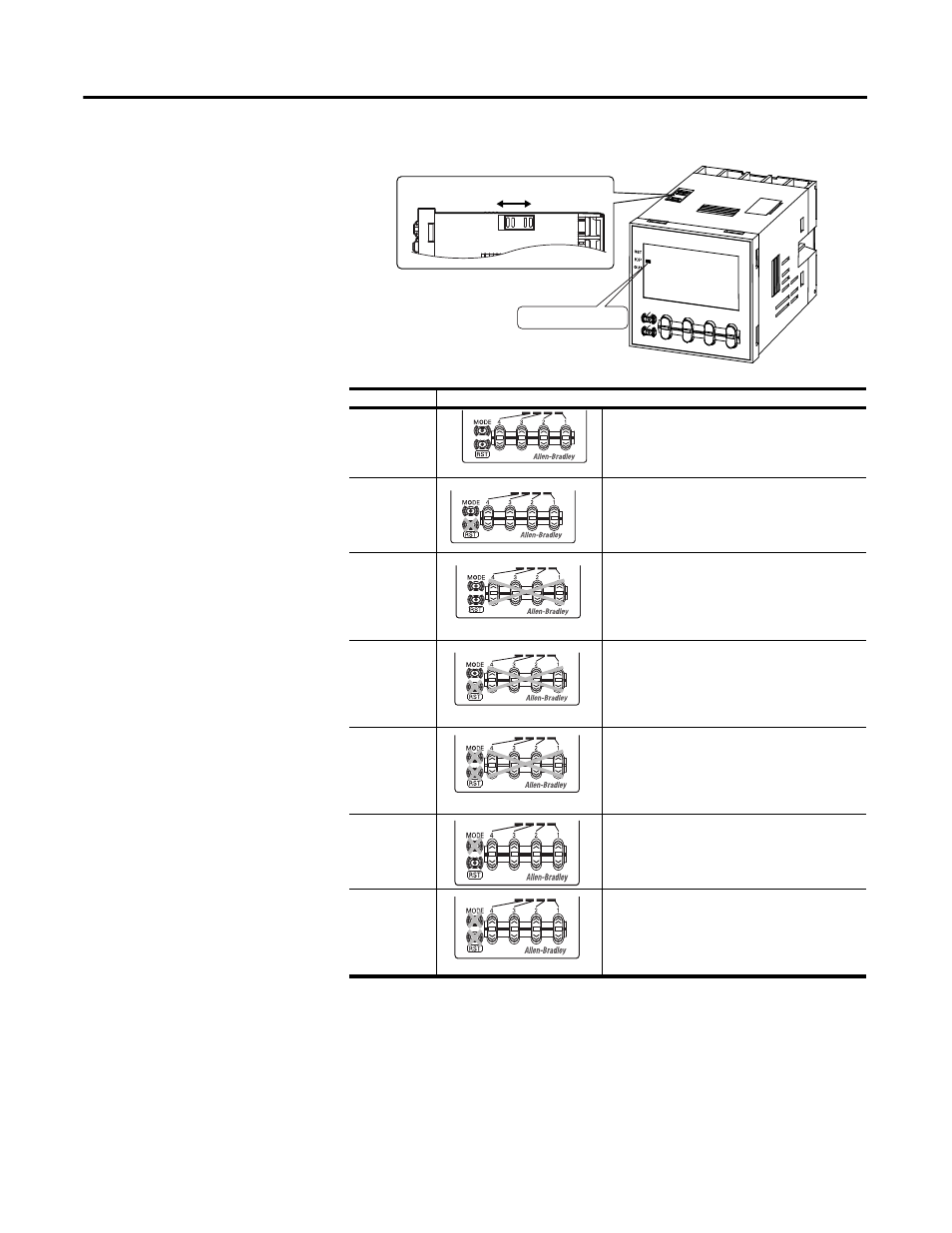

Level
Meaning
KP-1
(default
setting)
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode.
KP-2
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode. Also prohibits use of the reset key.
KP-3
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode. Also prohibits use of the up and down
keys.
KP-4
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode. Also prohibits use of the reset, up and
down keys.
KP-5
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode. Also prohibits use of any operation
keys.
KP-6
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode. Also prohibits use of the mode key.
KP-7
Prohibits changing the mode to timer/repeat
cycle selection mode or function setting
mode. The 700-HX can only be used in run
mode. Also prohibits use of mode and reset
keys.
ON
OFF
Key protect indicator
Note: Factory-set to OFF
(See note)
