Rockwell Automation 20D-P2-SLBO PowerFlex 700S Drive Phase II Control SynchLink Board User Manual
Page 6
6
Rockwell Automation Publication 20D-IN010B-EN-P - November 2010
SynchLink™ Board for PowerFlex® 700S Drives with Phase II Control

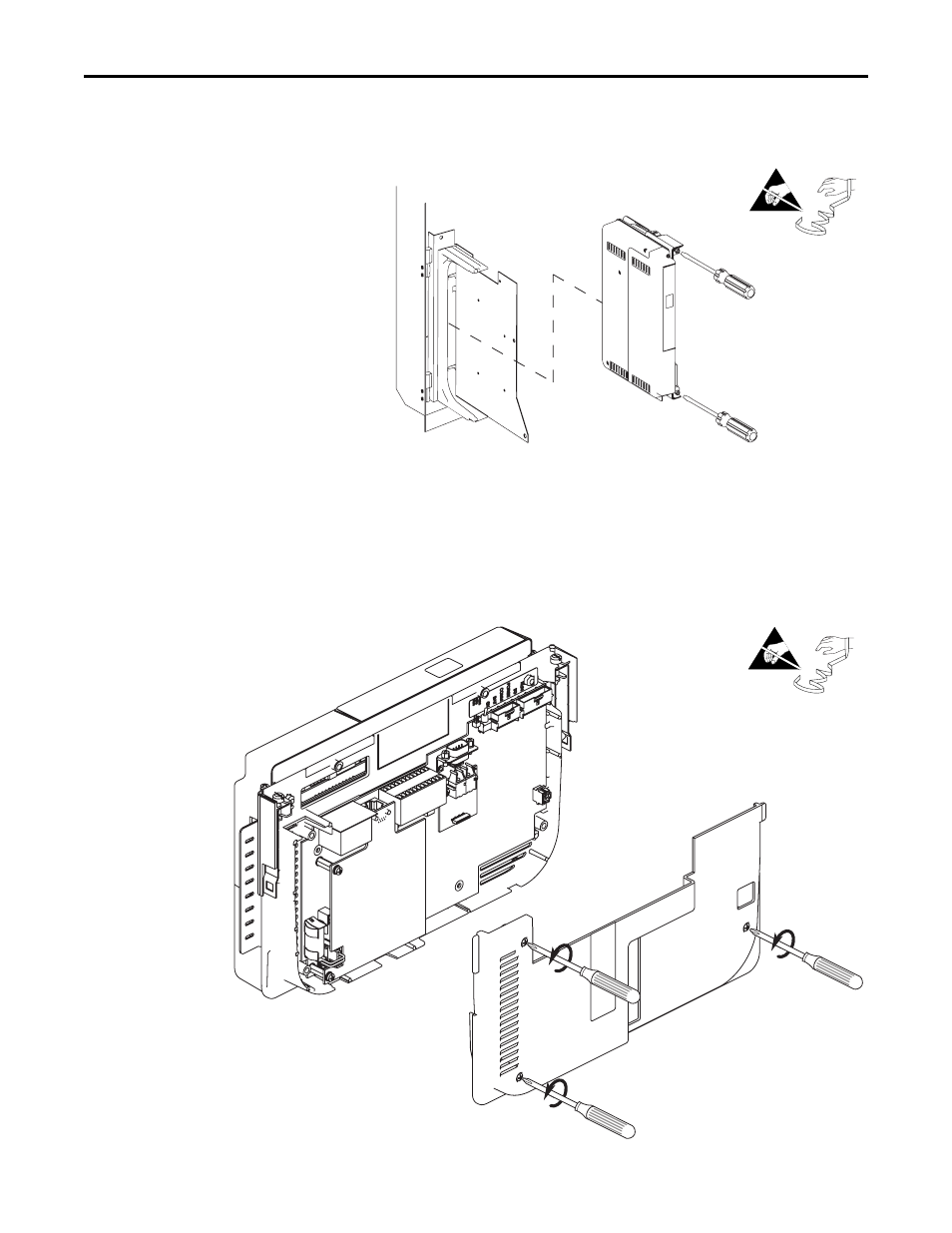

5. Loosen the two mounting screws on the front of the control assembly and
slide the control cassette off the mounting bracket.
Step 4: Remove the Inside
Cover from the Control
Cassette
• Loosen the three screws on the face of the front cover and remove the
cover.
Frame 9 shown
=
Proper tightening torque for reassembly
is 0.8… 1.1 N•m (7…10 lb•in)
Loosen three screws and remove cover
=
