SynchLink™ Board for PowerFlex® 700S Drives with Phase II Control
Step 2: Open/Remove the
Drive Cover(s)

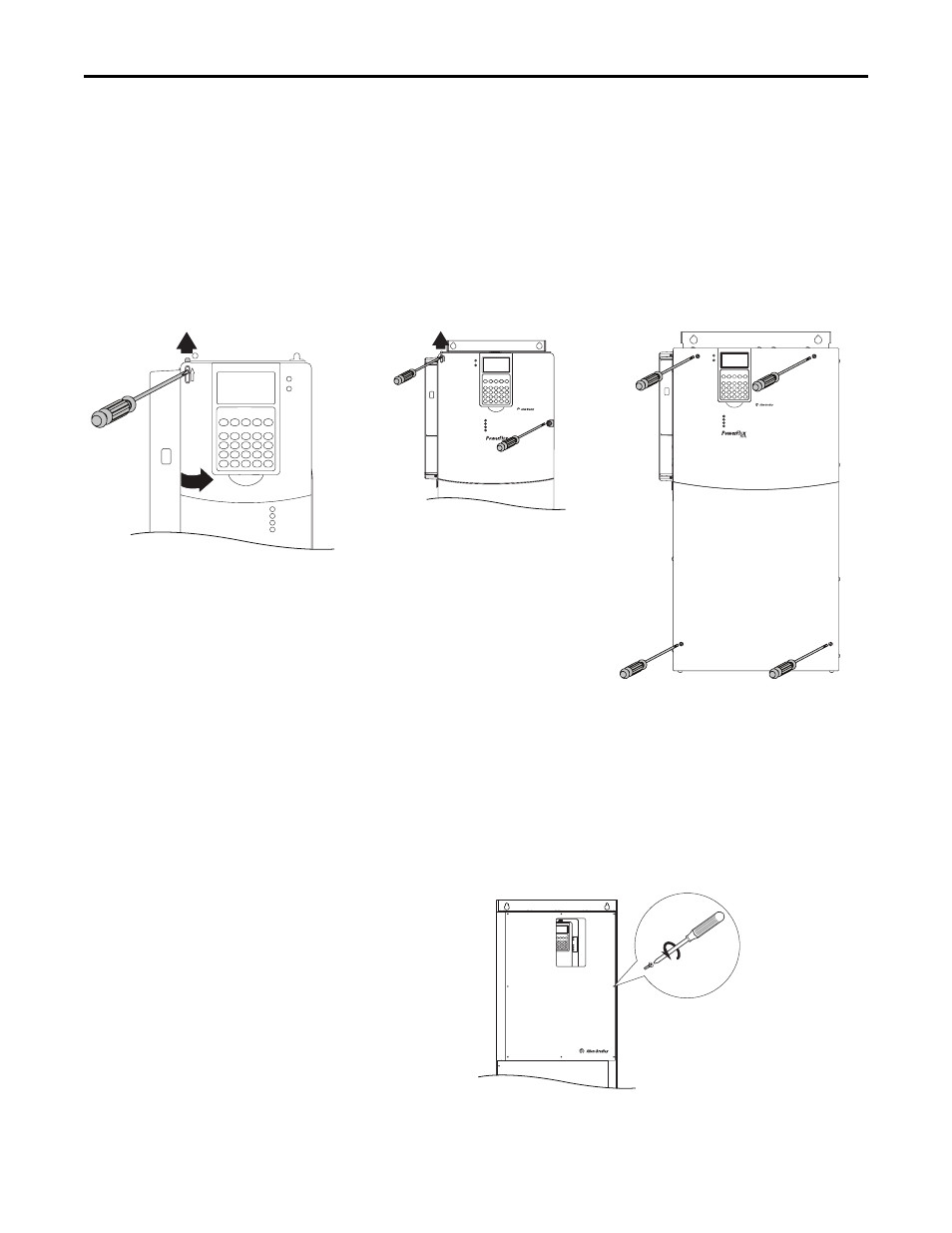

Frames 1…6
• Frames 1…4: Locate the slot in the upper left corner. Slide the locking tab
up and swing the cover open.
• Frame 5: Slide the locking tab up, loosen the right-hand cover screw and
remove the cover.
• Frame 6: Loosen the two screws on the bottom drive cover and slide the
bottom cover down and out. Loosen the two screws on the top cover and
remove the cover.
Frames 9…14
• Frame 9: Remove the eight POZIDRIV screws that secure the top cover
to the drive and remove the cover.
• Frame 10…14: Open the enclosure door on the bay that holds the control
frame.
S
Frames 1…4
Frame 5
Frame 6
Proper tightening torque
for reassembly is
3 N•m (27 lb•in)
Frame 9
