4

Rockwell Automation Publication 20D-IN010B-EN-P - November 2010

SynchLink™ Board for PowerFlex® 700S Drives with Phase II Control

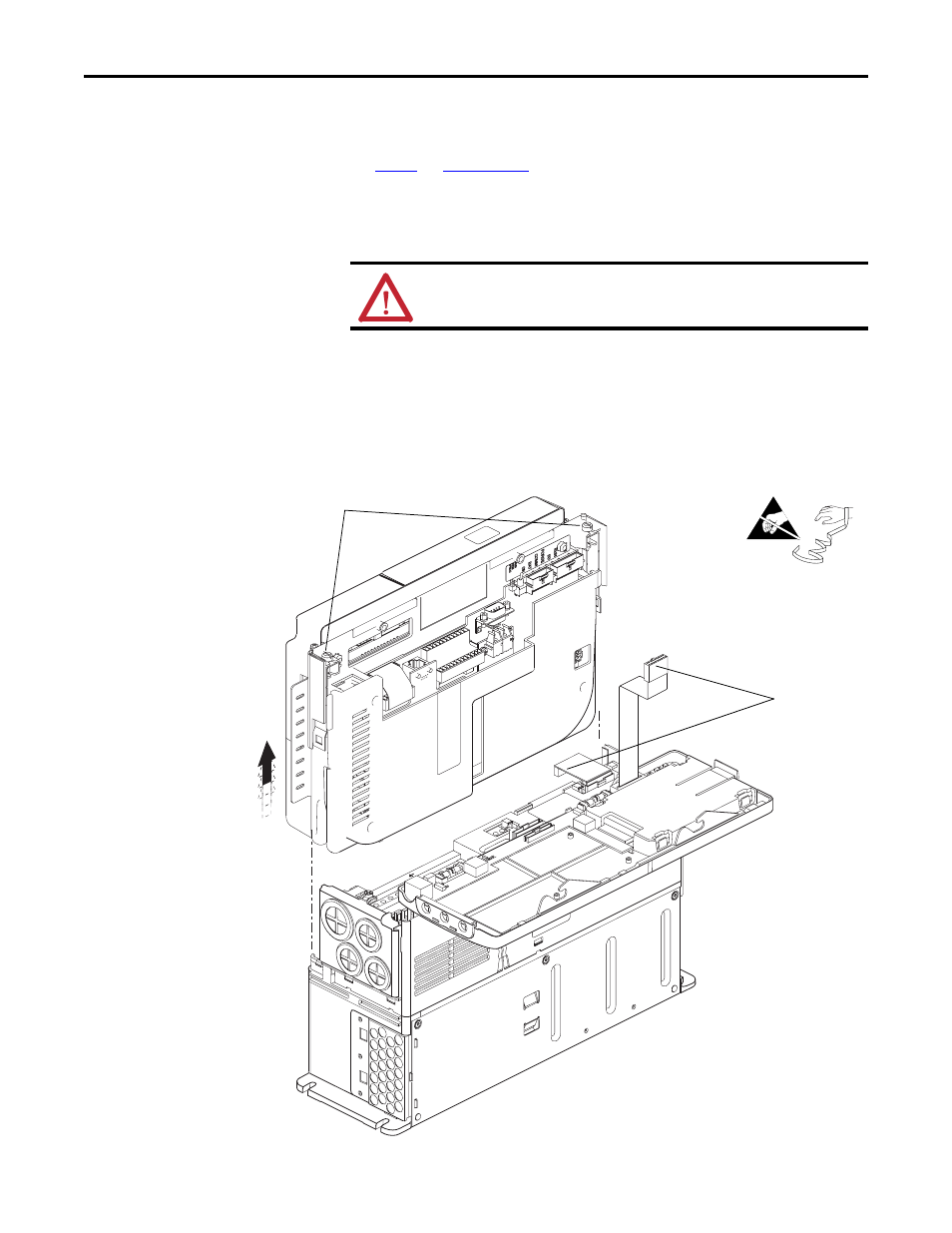

Step 3: Remove the
Control Cassette from the
Drive

Frames 1…6

See

page 3

for

Frames 9…14

control cassette removal instructions.

1. If necessary, disconnect any fiber-optic ControlNet and SynchLink cables

from the control assembly.

2. Disconnect any remaining I/O and communications cables from the

control assembly.

3. Disconnect the ribbon cables that connect to the main control board.
4. Loosen the two screws on the front of the cassette.
5. Remove the cassette from the drive chassis.

ATTENTION: Hazard of permanent eye damage exists when using optical
transmission equipment. This product emits intense light and invisible
radiation. Do not look into fiber-optic ports or fiber-optic cable connectors.

BR1

BR2

DC+

DC-

PE

U/T1

V/T2

W/T3

R/L1

L2

=

Loosen two screws

Remove
cassette

Disconnect
ribbon cables
