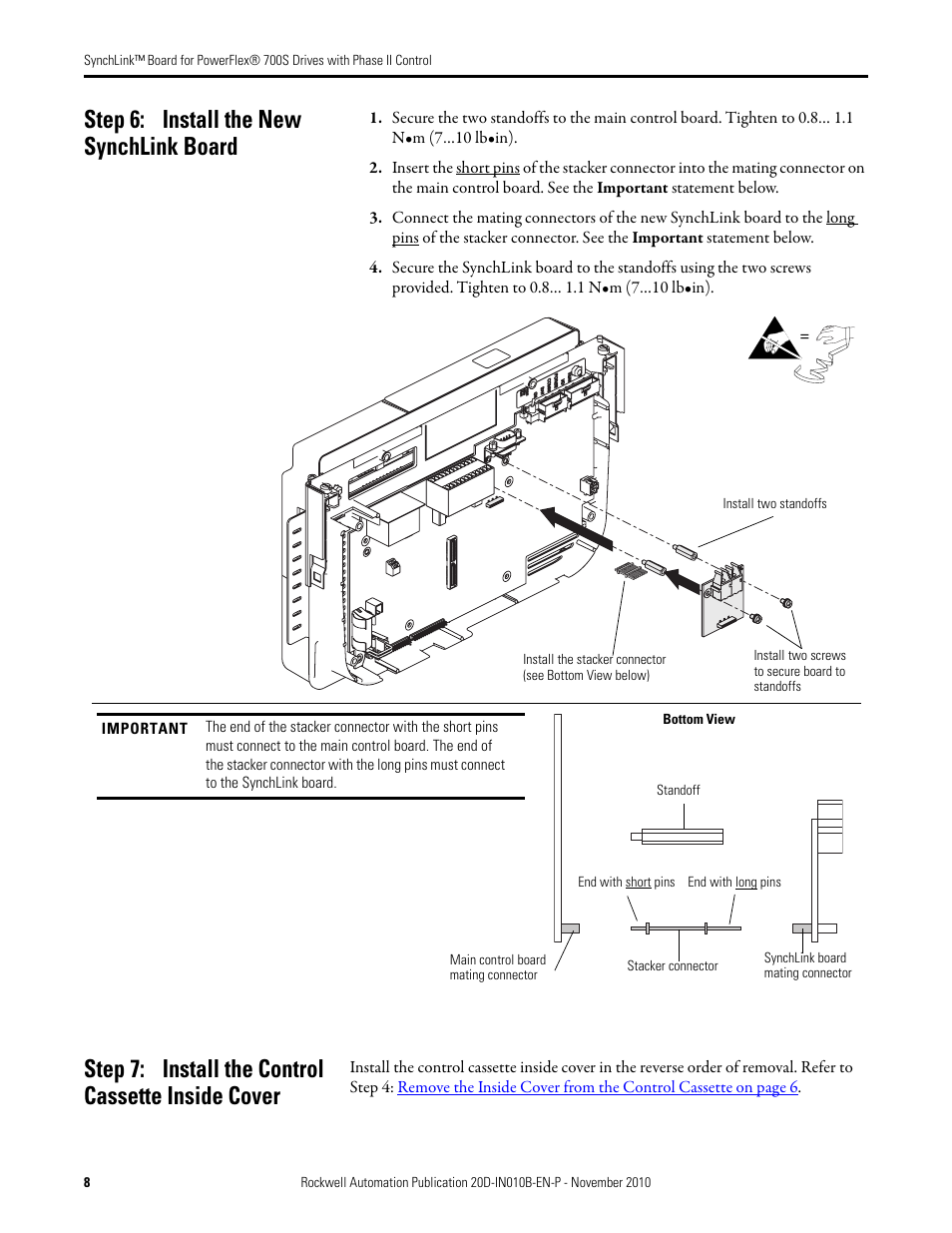

Step 6: install the new synchlink board, Step 7: install the control cassette inside cover – Rockwell Automation 20D-P2-SLBO PowerFlex 700S Drive Phase II Control SynchLink Board User Manual
