Page 30: Using the powerflex 7-class him -2

3-2
Configuring the Adapter
If your drive has either an LED or LCD HIM (Human Interface Module),
you can use it to access parameters in the adapter as shown below. It is
recommended that you read through the steps for your HIM before
performing the sequence. For additional HIM information, refer to your
PowerFlex Drive User Manual or the HIM Quick Reference card.

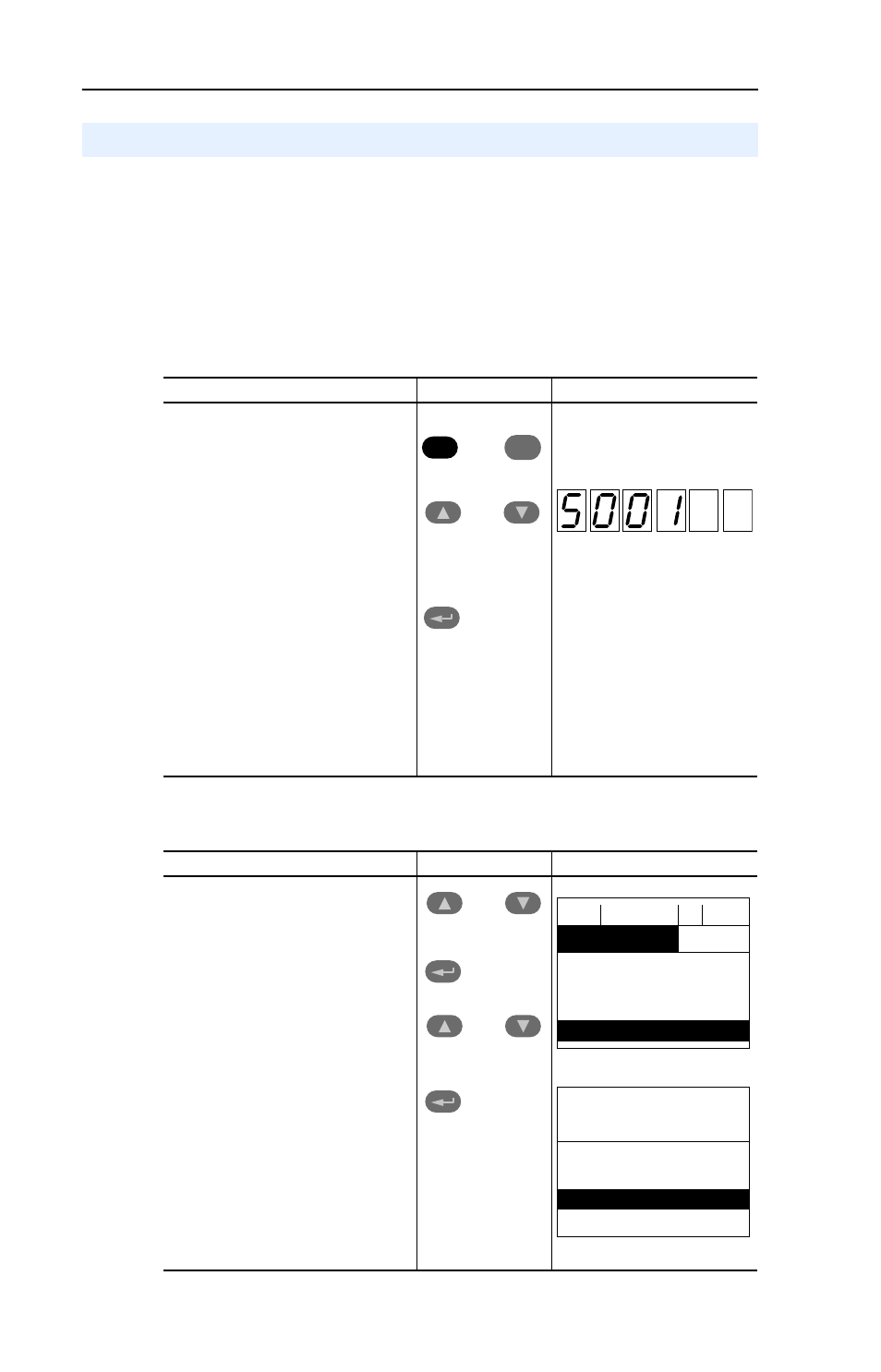

Using an LED HIM
Using an LCD HIM
Using the PowerFlex 7-Class HIM
Step
Key(s)
Example Screens
1. Press ALT and then Sel (Device)
to display the Device Screen.
2. Press the Up Arrow or Down
Arrow to scroll to the
20-COMM-B adapter. Letters
represent files in the drive, and
numbers represent ports. The
adapter is usually connected to
port 5.
3. Press the Enter key to enter your
selection. A parameter database
is constructed, and then the first
parameter is displayed.
4. Edit the parameters using the
same techniques that you use to
edit drive parameters.
Step
Key(s)
Example Screens
1. In the main menu, press the Up
Arrow or Down Arrow to scroll to
Device Select.
2. Press Enter to enter your
selection.
3. Press the Up Arrow or Down
Arrow to scroll to the
20-COMM-B adapter.
4. Press Enter to select the adapter.
A parameter database is
constructed, and then the main
menu for the adapter is
displayed.
5. Edit the parameters using the
same techniques that you use to
edit drive parameters.
ALT
Sel
OR
Device
AND
OR
OR
F->
Stopped
Auto
0.00
Hz
Main Menu:
Diagnostics
Parameter
Device Select
Port 5 Device
20-COMM-B
Main Menu:
Diagnostics
Parameter
Device Select
