PowerFlex 400 Adjustable Frequency AC Drive Quick Start English-7

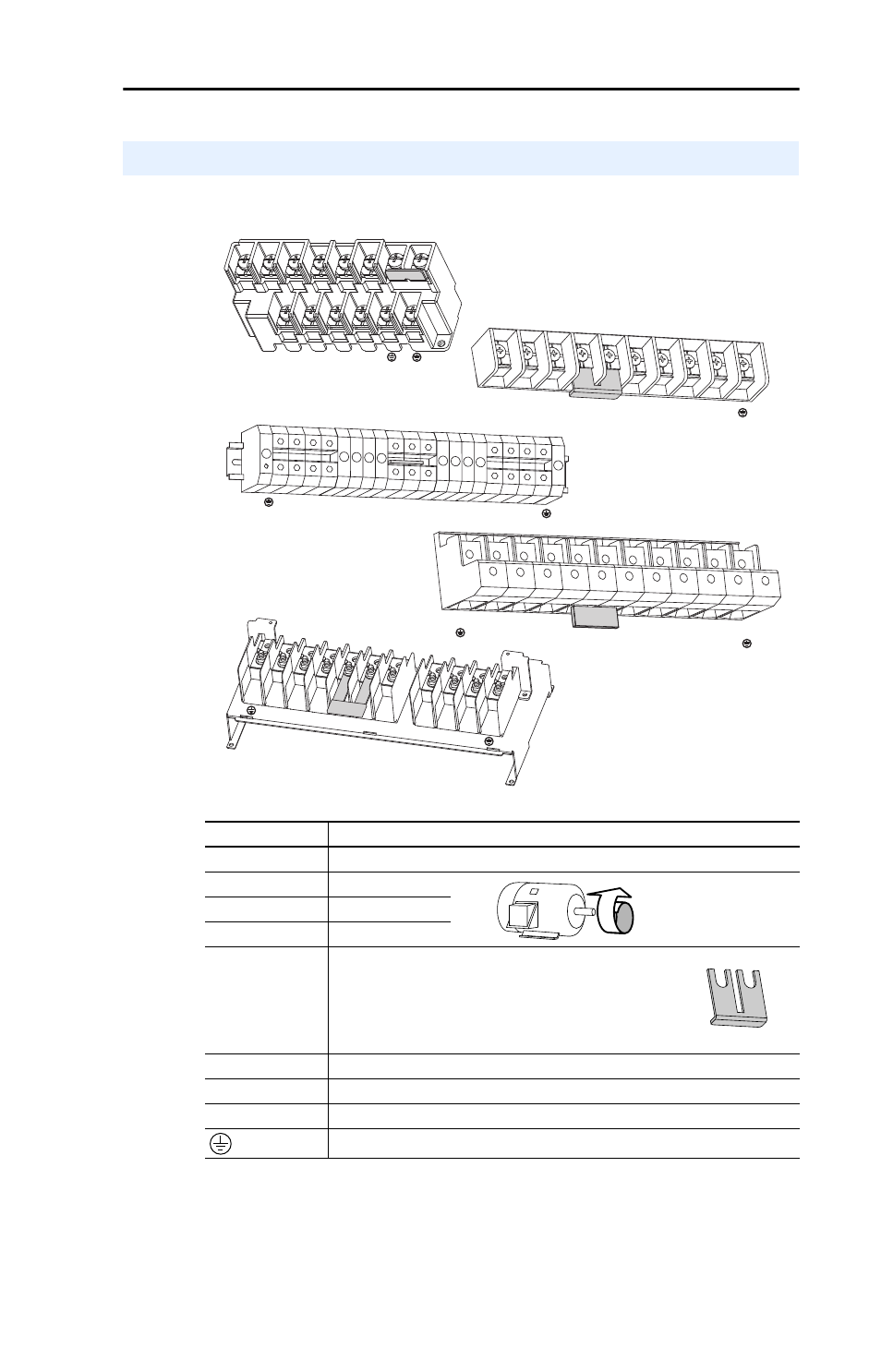

Figure 3: Power Terminal Blocks
Power Wiring
Terminal
(1)
Description
R/L1, S/L2, T/L3 3-Phase Input
U/T1
To Motor U/T1
=
Switch any two motor
leads to change
forward direction.
V/T2 To Motor V/T2
W/T3 To Motor W/T3
P2, P1
DC Bus Inductor Connection
Drives are shipped with a jumper between Terminals
P2 and P1. Remove this jumper only when a DC Bus
Inductor will be connected. Drive will not power up
without a jumper or inductor connected.
DC–, DC+ DC Bus Connection (Frame C Drives)
P2, DC– DC Bus Connection (Frame D, E, and F Drives)
BR+, BR– Not Used
Safety Ground - PE
(1)
Important: Terminal screws may become loose during shipment. Ensure that all
terminal screws are tightened to the recommended torque before applying power to
the drive.
R/L1 S/L2 T/L3 P1 P2 DC– U/T1 V/T2 W/T3
R/L1 S/L2 T/L3 P1
P2 DC– U/T1 V/T2 W/T3
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3 P2 P1
BR– BR+ DC+ DC–
R/L1S/L2T/L3
P1 P2 DC–
U/T1V/T2W/T3
R/L1 S/L2 T/L3 P1
P2 DC–
U/T1 V/T2 W/T3
