Rockwell Automation 22C PowerFlex 400 AC Drive Quick Start - FRN 1-4.xx User Manual
Page 15
PowerFlex 400 Adjustable Frequency AC Drive Quick Start
English-15

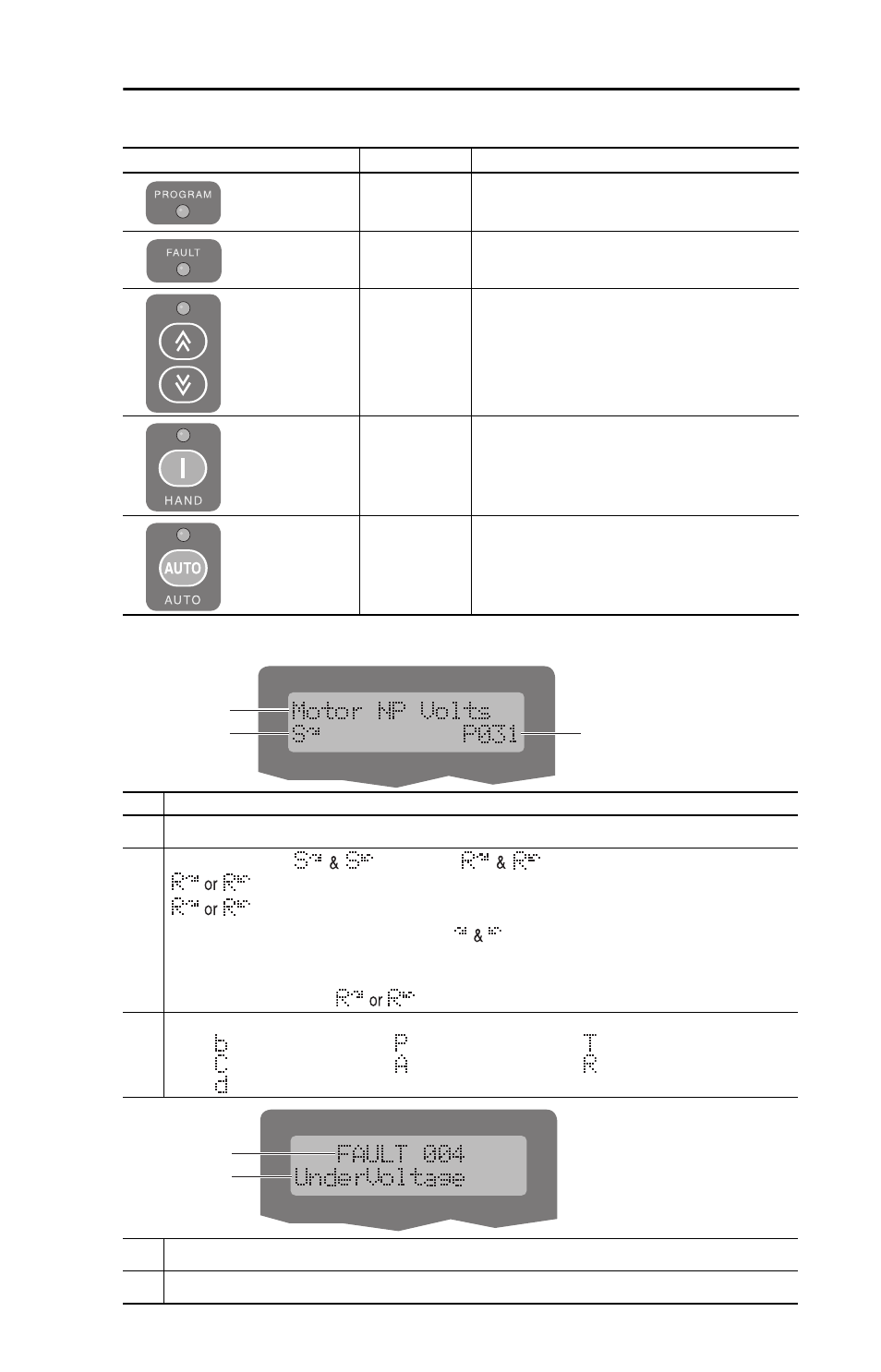

LED Status Indicators
LCD Display
LED
LED State
Description
Program Status Steady Red
Indicates parameter value can be changed.
Selected digit will flash.
Fault Status
Flashing Red
Indicates that the drive is faulted.
Speed Status
Steady Green
Indicates that the digital speed control keys are
enabled.
Hand Status
Steady Green
Indicates that the Run/Start key is enabled.
Auto Status
Steady Yellow
Indicates that the drive is in Auto mode.
No.
Description
➊
Parameter Name
➋
Run/Stop Status:
= Stopped /
= Running
flashes to indicate that the drive is stopping, but is still decelerating.
flashes when DC Injection is commanded.
Direction Indication: The Direction Arrow
indicates the commanded direction of
rotation. If the Arrow is flashing, the drive has been commanded to change direction, but is still
decelerating.
Sleep Mode Indication:
flashes to indicate that the drive is in sleep mode.
➌
Parameter Group and Number:
= Basic Display
= Basic Program
= Terminal Block
= Communications
= Advanced Program
= Aux Relay Card
= Advanced Display
➍
Fault Indication and Fault Number
➎
Fault Name
➊
➋
➌
➍
➎
