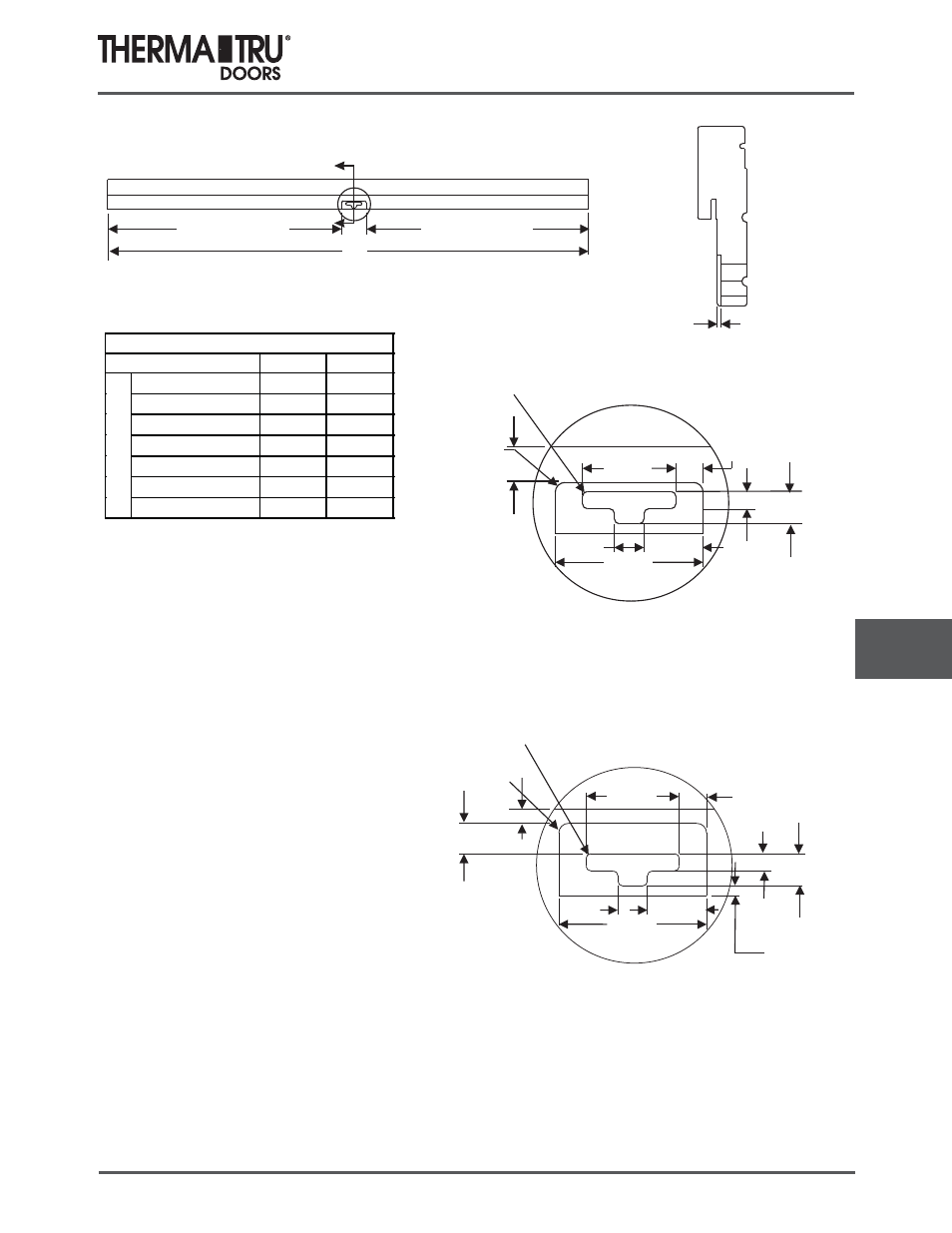

Frame Parts
Comp 10 2014 (U1 REVISED) 10.9
Head Jambs
A
3/32”
B (Left Active)
.750”
3.750”
1.505”
2.375”
Detail Cut
Through
R.125 (8)
R .250” (2)
.668”
.750”
3.750”
1.505”
.250”
2.375” .692”
.437”
Detail Cut
Through
.822”
.822”
R.125” (8)
R.250” (2) .693”
.801”
.437”
.363”
Standard MPLS
Impact MPLS
A B
407U = 4/0 FRENCH 48.718 21.583
487U = 4/8 FRENCH 56.718 25.583
507U = 5/0 FRENCH 60.718 27.583
547U = 5/4 FRENCH 64.718 29.583
587U = 5/8 FRENCH 68.718 31.583
607U = 6/0 FRENCH 72.718 33.583
707U = 7/0 FRENCH 84.718 39.583
7/
8"
AS
TR
AG
AL
FRENCH DOOR WITH MULTI-POINT LOCK
B (Right Active)
