Frame Parts
10.10 2014 (U1 REVISED) Comp 10

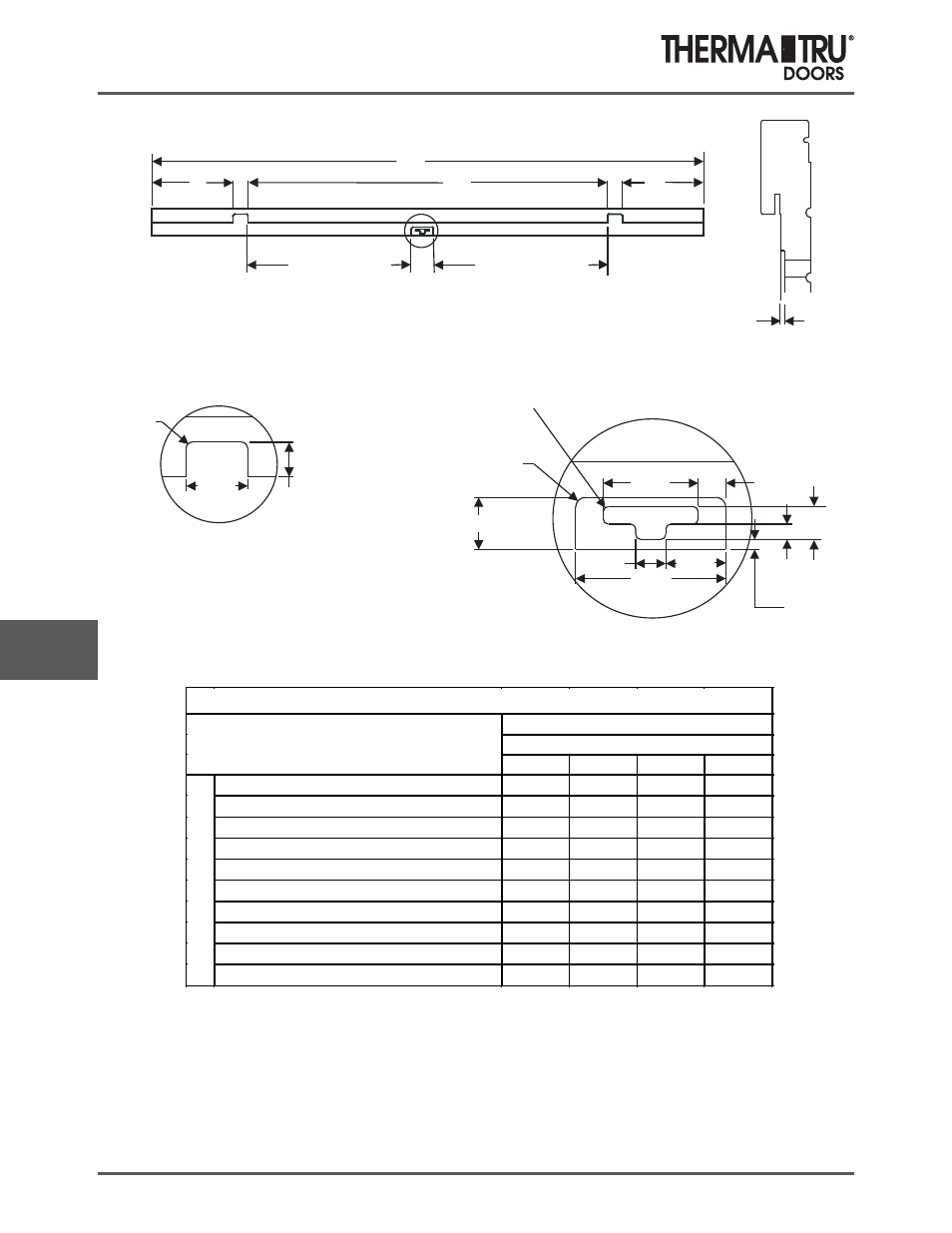

Head Jambs
R 1/4” (2)
2.520”
1.359”
R 1/8” (8)
R 1/4” (2)
1-5/16”
3/4”
3-3/4”
1-1/2”
1/4”
2-3/8” 11/16”
3/8”
3/32”
Detail Cut
Through
G (Left Active) G (Right Active)
C
A
B B
MPLS FRENCH W/2 VENTING SIDELITES
53/64”
A B C G
487U12 = 4/8 FRENCH W/2-12" VENTING SL 84.126 11.677 55.732 25.106
487U14 = 4/8 FRENCH W/2-14" VENTING SL 88.126 13.677 55.732 25.106
507U12 = 5/0 FRENCH W/2-12" VENTING SL 88.126 11.677 59.732 27.106
507U14 = 5/0 FRENCH W/2-14" VENTING SL 92.126 13.677 59.732 27.106
547U12 = 5/4 FRENCH W/2-12" VENTING SL 92.126 11.677 63.732 29.106
547U14 = 5/4 FRENCH W/2-14" VENTING SL 96.126 13.677 63.732 29.106
587U12 = 5/8 FRENCH W/2-12" VENTING SL 96.126 11.677 67.732 31.106
587U14 = 5/8 FRENCH W/2-14" VENTING SL 100.126 13.677 67.732 31.106
607U12 = 6/0 FRENCH W/2-12" VENTING SL 100.126 11.677 71.732 33.106
607U14 = 6/0 FRENCH W/2-14" VENTING SL 104.126 13.677 71.732 33.106
7/
8"
AS
TR
AG
AL
WIDE MULLION
CONTINUOUS WITH 2 VENTING SIDELITES
(MACHINING CODE F)
