Frame Parts
Comp 10 2014 (U1 REVISED) 10.19

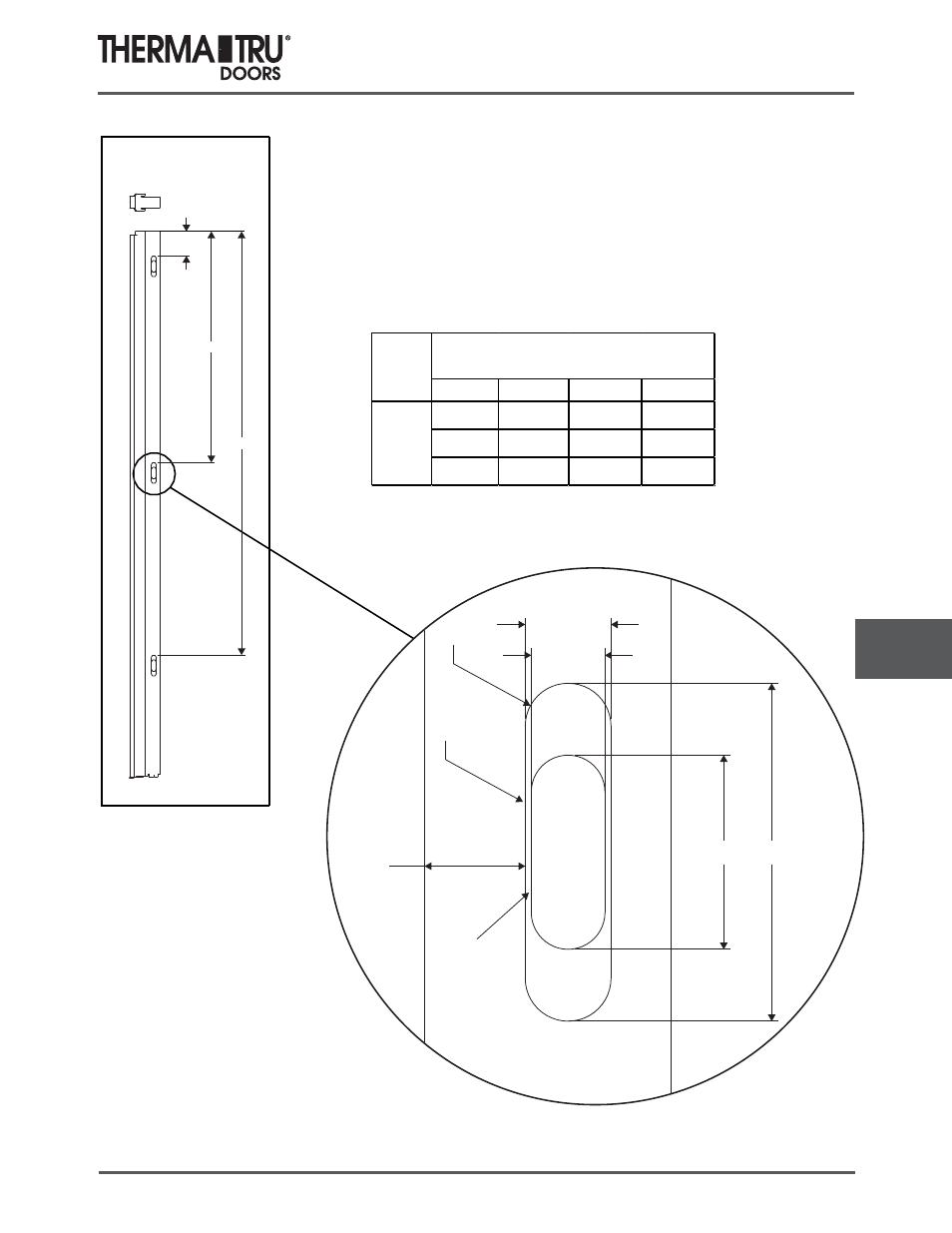

Mullions
Top of
Mullion
TONGUE (1)
TONGUE (2)
TONGUE (3)
.766”
.658”
FULL R
.898”
1.733” 3.016”
Vented Sidelite Lock
Mortise Location
UNIT SIZE TONGUE 1 TONGUE 2 TONGUE 3
6/6 3.489 32.989 60.491
6/8 3.286 32.786 60.288
8/0 16.286 48.786 76.288 UN
DE
RS
IZ
E
VENTING SIDELITE MPLS
SECONDARY MACHINING CODE V
.074” Deep
1.000”
Deep
