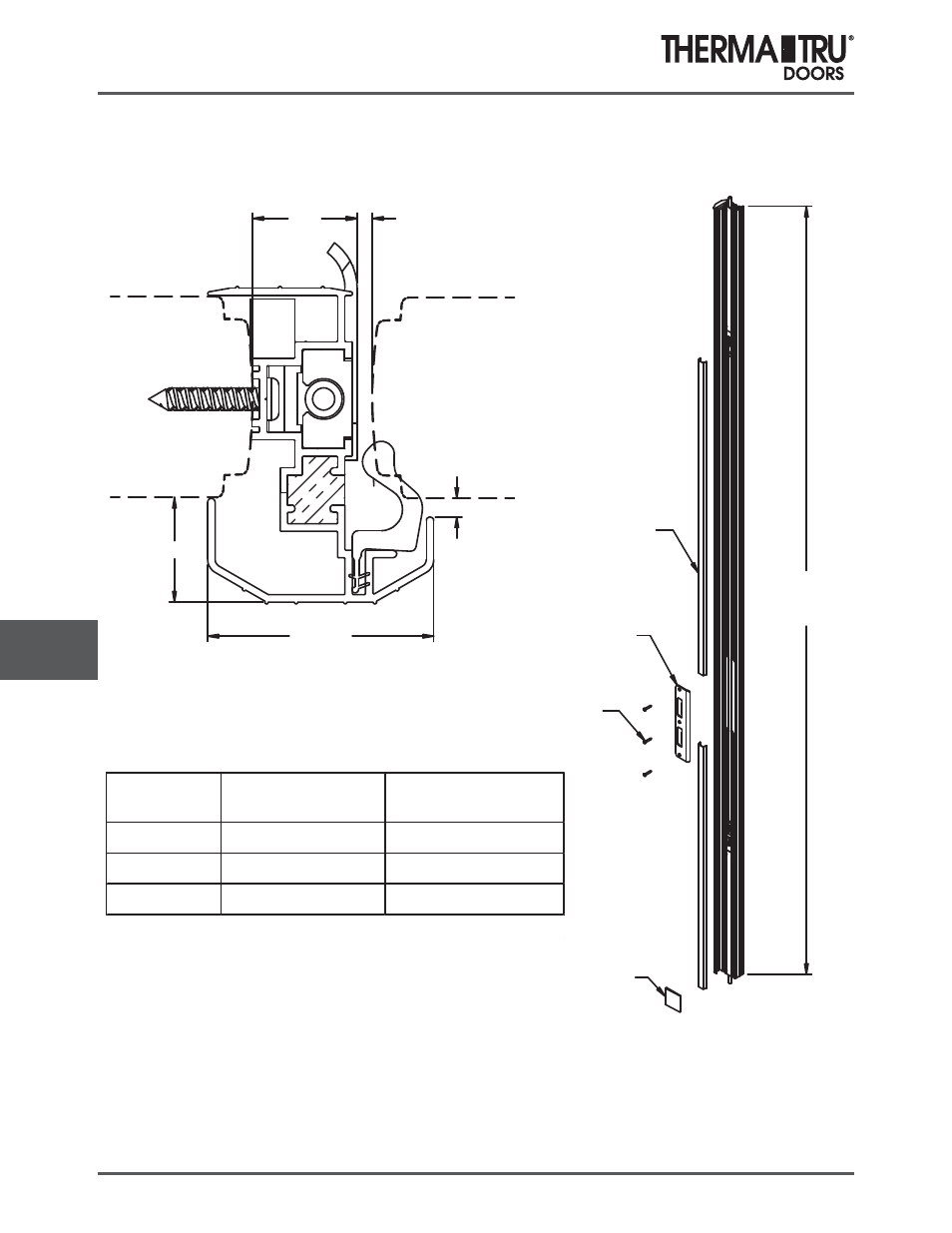

Frame Parts
10.22 2014 (U1 REVISED) Comp 10
Multi-Point Lock
Manual Shootbolt
5/32"
1 29/32"
7/8"
7/8" 1/8"
Vinyl Cover
#8 x 1-1/2"
Screws
Strike Plate
Corner Seal Pad
Astragal
Height
(Less Boots)
Astragals come complete with the necessary hardware.
See COMP 14.
KKZ,/',d
/E^t/E'^dZ'>
KsZ>>,/',d
Khd^t/E'^dZ'>
KsZ>>,/',d
ϲͬϲ ϳϲ͘ϳϬϮ ϳϲ͘ϳϬϮ
ϲͬϴ ϳϵ͘Ϭϰϳ ϳϵ͘Ϭϰϳ
ϴͬϬ ϵϱ͘Ϭϰϳ ϵϱ͘Ϭϰϳ
Stainable & Standard
Aluminum 7/8" Astragal
