Frame Parts
Comp 10 2014 (U1 REVISED) 10.7

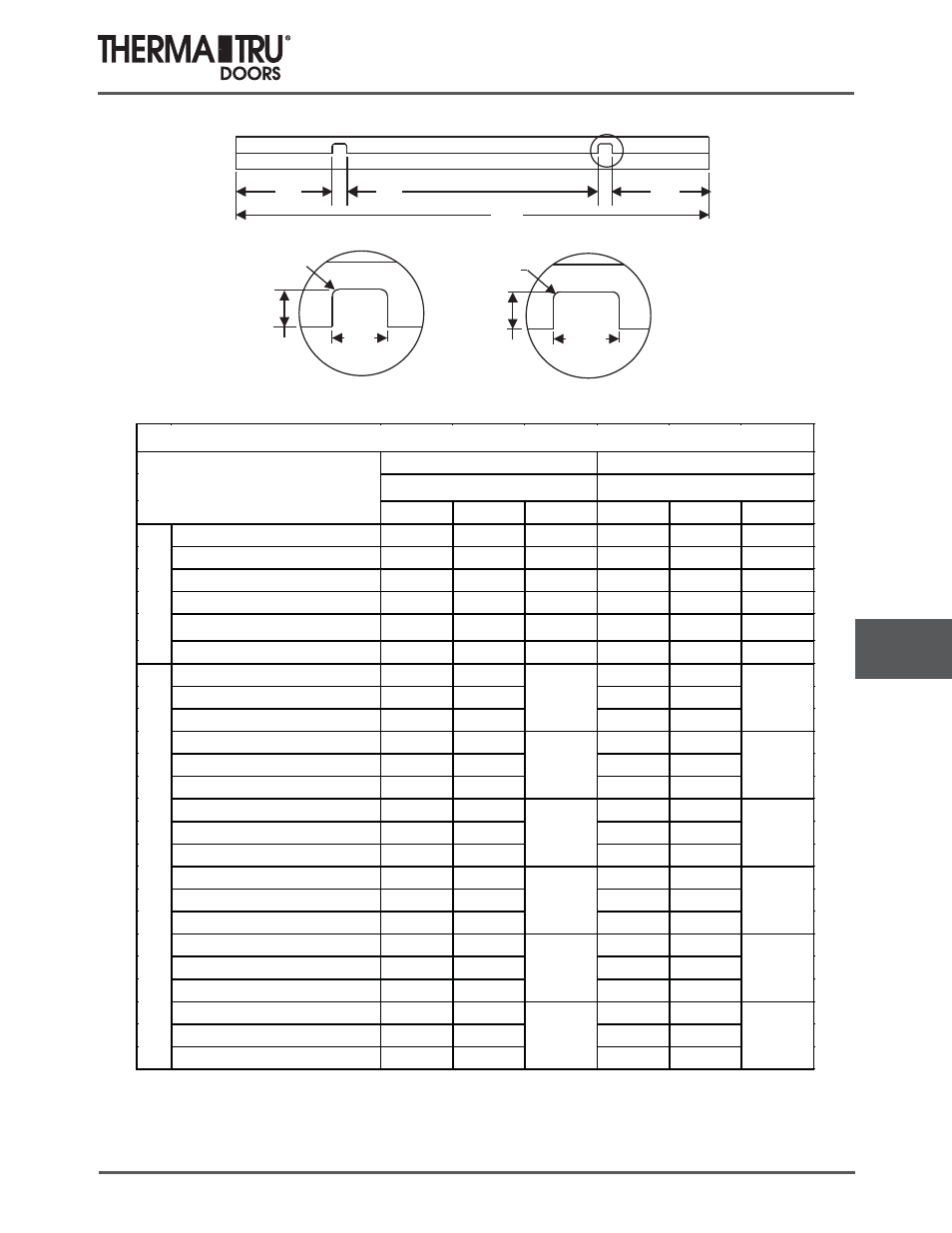

Head Jambs
A
B
Code E
2.020”
1.359”
R .250 (2)
Code F
2.520”
1.359”
C B
R .250 (2)
A B C A B C
70U = 7/0 TRIPLE 86.000 27.490 26.980 87.000 27.490 26.980
76U = 7/6 TRIPLE 92.000 29.490 28.980 93.000 29.490 28.980
80U = 8/0 TRIPLE 98.000 31.490 30.980 99.000 31.490 30.980
86U = 8/6 TRIPLE 104.000 33.490 32.980 105.000 33.490 32.980
90U = 9/0 TRIPLE 110.000 35.490 34.980 111.000 35.490 34.980
106U = 10/6 TRIPLE 128.000 41.490 40.980 129.000 41.490 40.980
24UD10 = 2/4 W/2-10" SL 50.000 9.490 51.000 9.490
24UD12 = 2/4 W/2-12" SL 54.000 11.490 55.000 11.490
24UD14 = 2/4 W/2-14" SL 58.000 13.490 59.000 13.490
26UD10 = 2/6 W/2-10" SL 52.000 9.490 53.000 9.490
26UD12 = 2/6 W/2-12" SL 56.000 11.490 57.000 11.490
26UD14 = 2/6 W/2-14" SL 60.000 13.490 61.000 13.490
28UD10 = 2/8 W/2-10" SL 54.000 9.490 55.000 9.490
28UD12 = 2/8 W/2-12" SL 58.000 11.490 59.000 11.490
28UD14 = 2/8 W/2-14" SL 62.000 13.490 63.000 13.490
21UD10 = 2/10 W/2-10" SL 56.000 9.490 57.000 9.490
21UD12 = 2/10 W/2-12" SL 60.000 11.490 61.000 11.490
21UD14 = 2/10 W/2-14" SL 64.000 13.490 65.000 13.490
30UD10 = 3/0 W/2-10" SL 58.000 9.490 59.000 9.490
30UD12 = 3/0 W/2-12" SL 62.000 11.490 63.000 11.490
30UD14 = 3/0 W/2-14" SL 66.000 13.490 67.000 13.490
36UD10 = 3/6 W/2-10" SL 64.000 9.490 65.000 9.490
36UD12 = 3/6 W/2-12" SL 68.000 11.490 69.000 11.490
36UD14 = 3/6 W/2-14" SL 72.000 13.490 73.000 13.490
TR
IP
LE U
N
IT
S
C
O
NT
IN
UO
US
W
IT
H
2 S
ID
EL
IT
ES
TRIPLE AND SINGLE WITH 2 SIDELITES
STANDARD MULLION WIDE MULLION
(MACHINING CODE E) (MACHINING CODE F)
40.980
26.980
28.980
30.980
32.980
34.980
40.980
26.980
28.980
30.980
32.980
34.980
