Frame Parts

Comp 10

2014 (U1 REVISED)

10.5

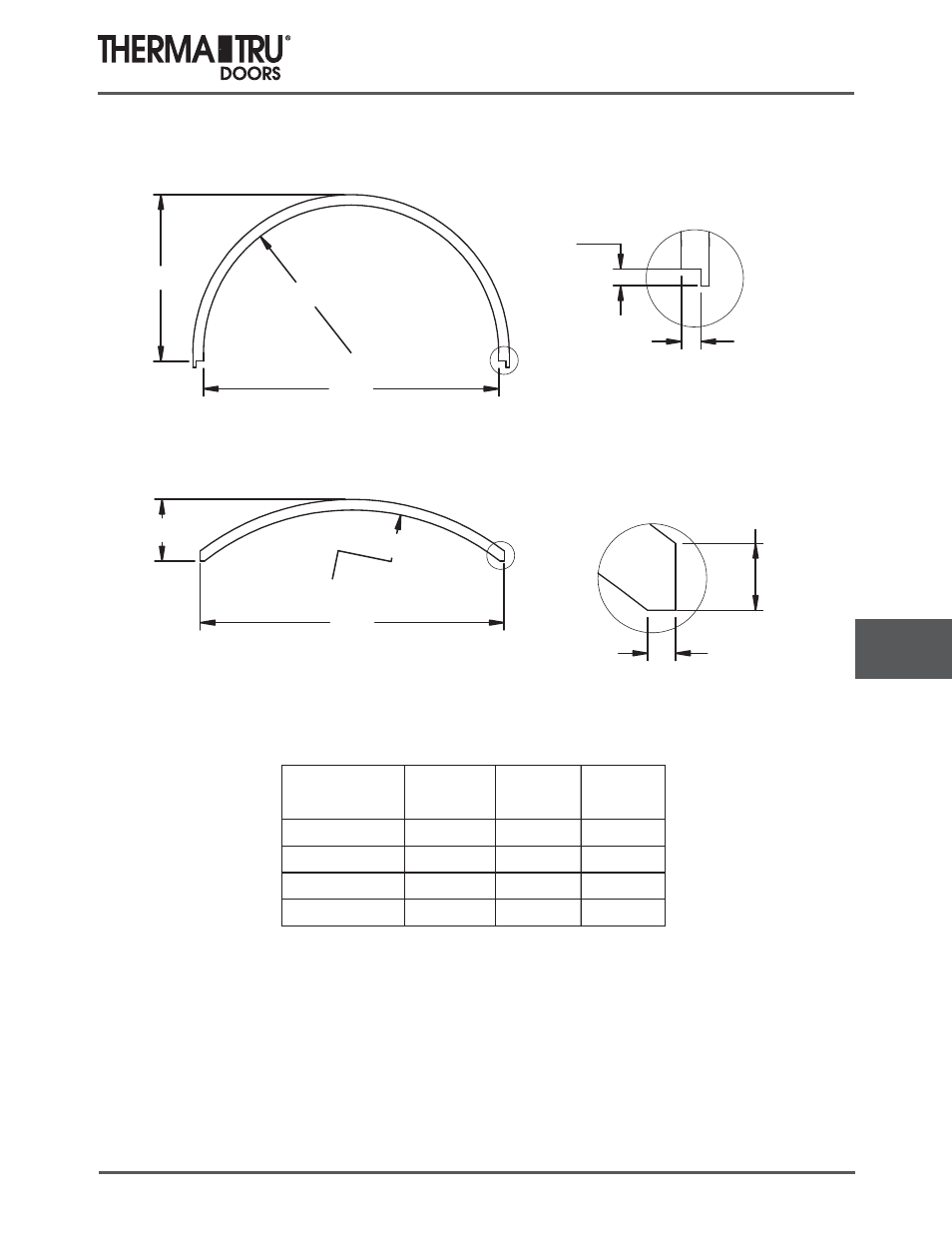

Arch & Radius Head Jambs

UNIT SIZE

LENGTH

"A"

RADIUS

"B"

HEIGHT

"C"

3/0 RADIUS 34.972" 17.486" 19.736"
3/6 RADIUS 40.968" 20.484" 22.734"

3/0 ARCH

35.968" 28.486" 7.247"

3/6 ARCH

41.968" 39.751" 6.934"

B

B

A

A

C

C

.875"

.750"

.500"

1.114" for 3/0

1.085" for 3/6
