Jambs, 9/16" jambs, 1/4" jambs – Therma-Tru COMP 10 Frame Parts - U1 Revised User Manual

Page 3: 9/16" patio jambs (for sliding screens)

background image

Frame Parts

Comp 10

2014 (U1 REVISED)

10.3

Jambs

4 9/16"

1 1/4"

1/2"

2 3/16"

3/4"

1/2"

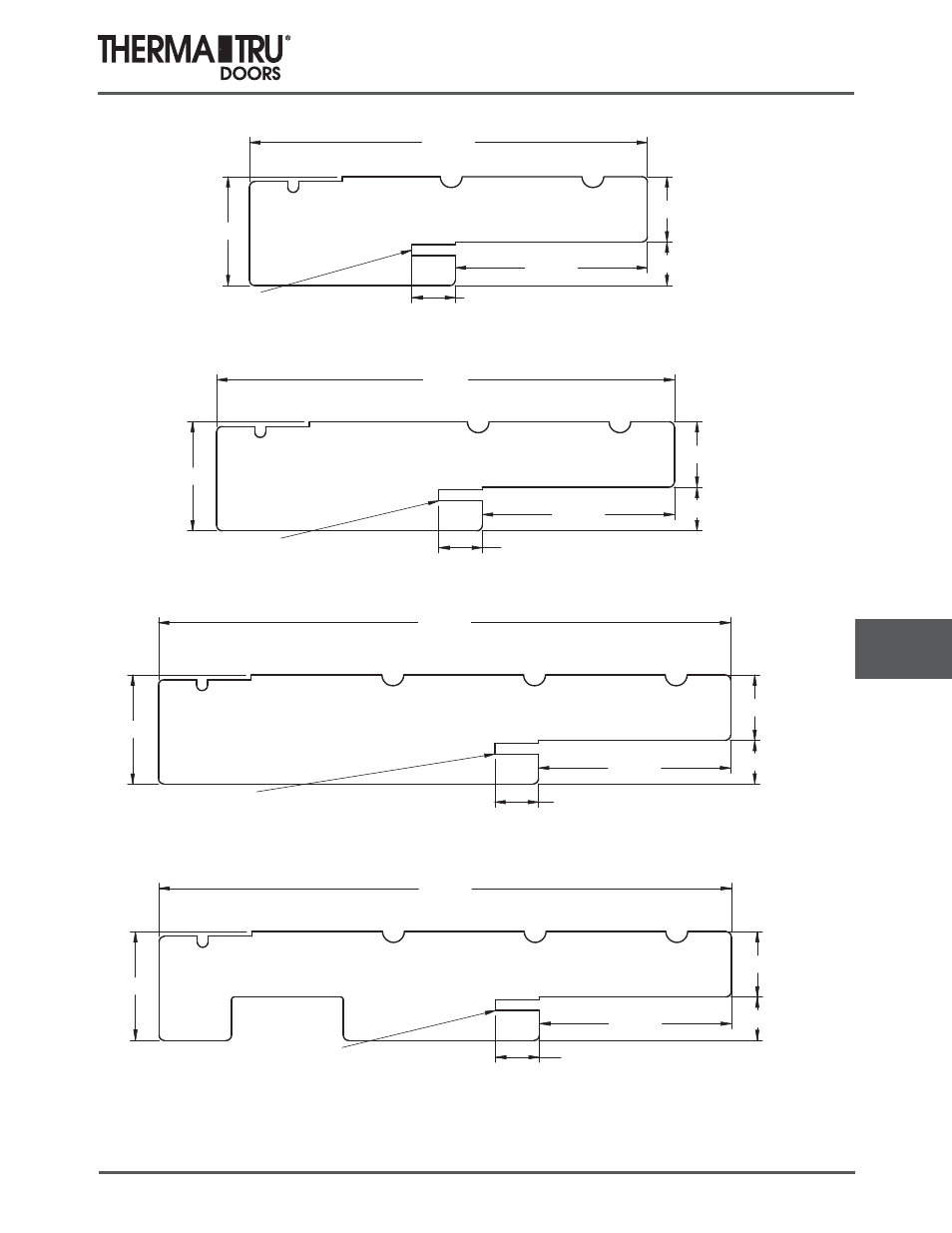

4-9/16" Jambs

Weather Strip Cutout

5 1/4"

1 1/4"

1/2"

2 3/16"

3/4"

1/2"

5-1/4" Jambs

6 9/16"

1 1/4"

3/4"

1/2"

2 3/16"

1/2"

6-9/16" Jambs

Weather Strip Cutout

Weather Strip Cutout

6 9/16"

1 1/4"

3/4"

1/2"

2 3/16"

1/2"

Weather Strip Cutout

6-9/16" Patio Jambs

(for sliding screens)
