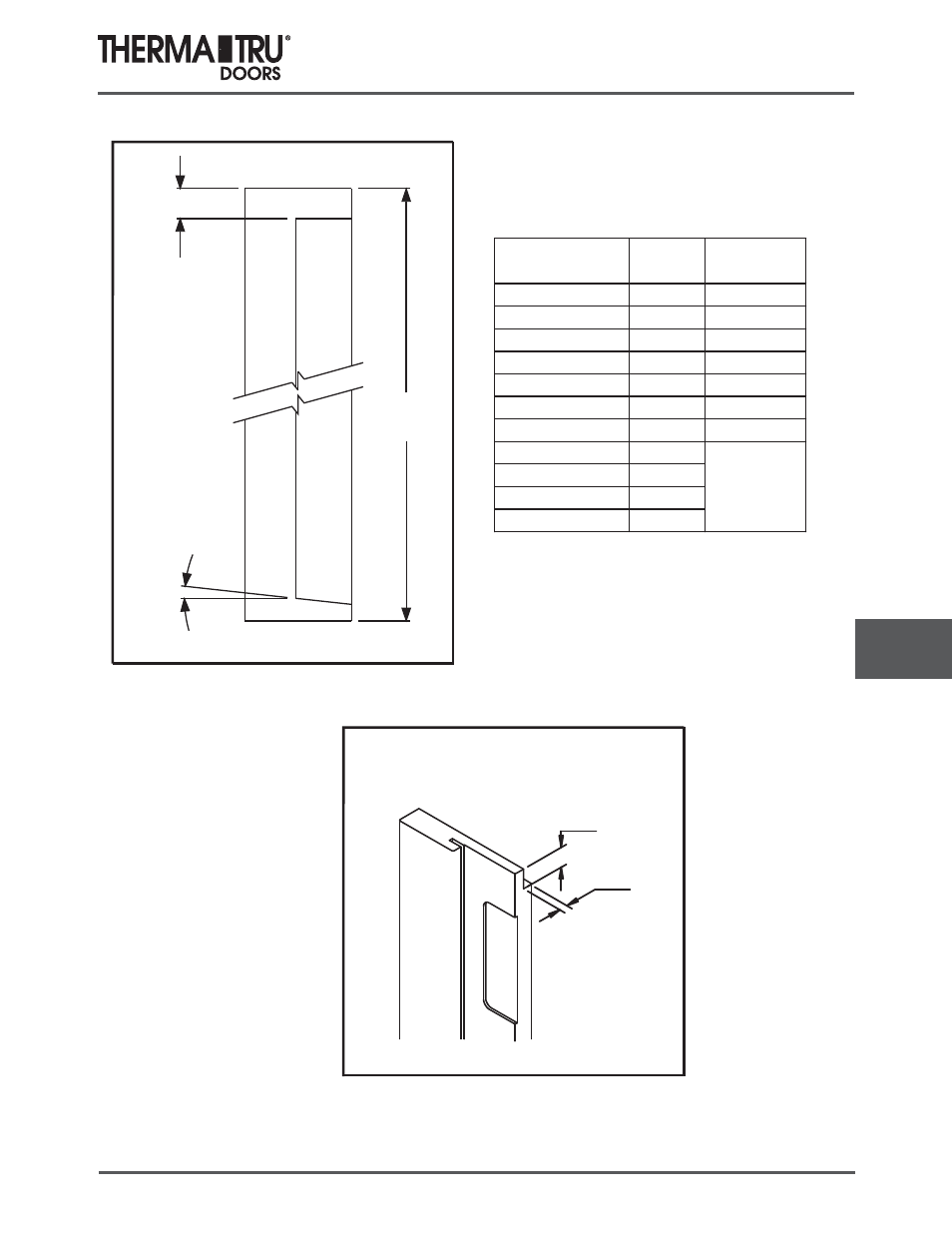

Frame Parts

Comp 10

2014 (U1 REVISED)

10.11

Side Jambs

Radius Head

Gain Detail

3/4"

5/16"

UNIT SIZE

Head Gain
See Chart

Length
“A”

Sill End

Head End

6°

LENGTH

"A"

HEAD GAIN

"B"

6/6

79.280"

1.250"

6/8

81.625"

1.250"

8/0

97.625"

1.250"

6/8 3/0 ARCH

75.948"

1.570"

6/8 3/6 ARCH

76.182"

1.491"

8/0 3/0 ARCH

91.948"

1.570"

8/0 3/6 ARCH

91.182"

1.491"

6/8 3/0 RADIUS 61.889"
6/8 3/6 RADIUS 58.889"
8/0 3/0 RADIUS 77.889"
8/0 3/6 RADIUS 79.889"

See Figure

Below
