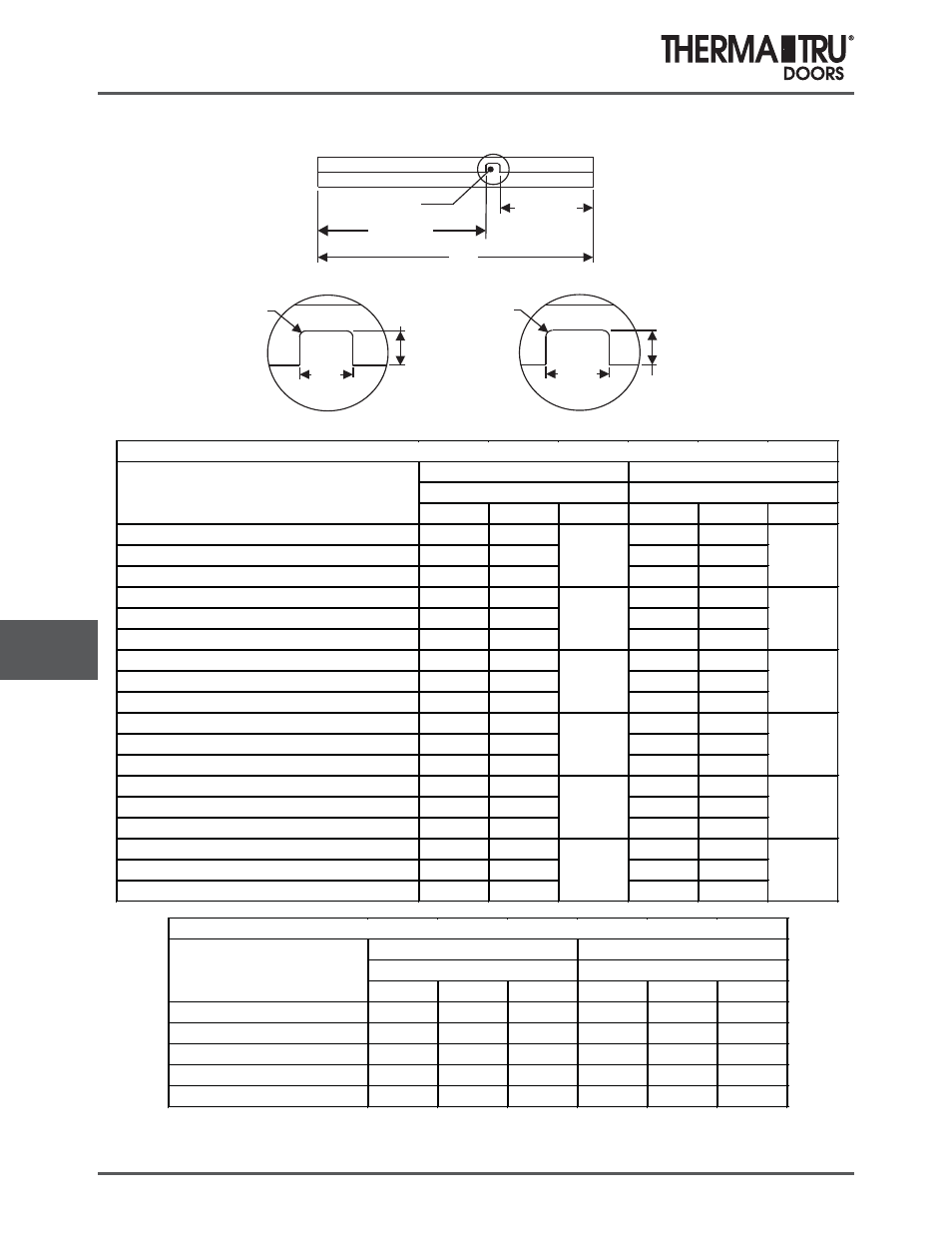

Frame Parts
10.6
2014 (U1 REVISED)
Comp 10
Head Jambs
R 0.250” (2)
Code E
A
2.020”
1.359”
Code F
2.520”
1.359”
C = Door
(Active)
B= Sidelite
(Fixed)
Inswing Active Left Shown
R 0.250” (2)
A
B
C
A
B
C
24UL10 / 24UR10 = 2/4 L(R) W/1-10" SL
39.000
9.490
39.500
9.490
24UL12 / 24UR12 = 2/4 L(R) W/1-12" SL
41.000
11.490
41.500
11.490
24UL14 / 24UR14 = 2/4 L(R) W/1-14" SL
43.000
13.490
43.500
13.490
26UL10 / 26UR10 = 2/6 L(R) W/1-10" SL
41.000
9.490
41.500
9.490
26UL12 / 26UR12 = 2/6 L(R) W/1-12" SL
43.000
11.490
43.500
11.490
26UL14 / 26UR14 = 2/6 L(R) W/1-14" SL
45.000
13.490
45.500
13.490
28UL10 / 28UR10 = 2/8 L(R) W/1-10" SL
43.000
9.490
43.500
9.490
28UL12 / 28UR12 = 2/8 L(R) W/1-12" SL
45.000
11.490
45.500
11.490
28UL14 / 28UR14 = 2/8 L(R) W/1-14" SL
47.000
13.490
47.500
13.490
21UL10 / 21UR10 = 2/10 L(R) W/1-10" SL
45.000
9.490
45.500
9.490
21UL12 / 21UR12 = 2/10 L(R) W/1-12" SL
47.000
11.490
47.500
11.490
21UL14 / 21UR14 = 2/10 L(R) W/1-14" SL
49.000
13.490
49.500
13.490
30UL10 / 30UR10 = 3/0 L(R) W/1-10" SL
47.000
9.490
47.500
9.490
30UL12 / 30UR12 = 3/0 L(R) W/1-12" SL
49.000
11.490
49.500
11.490
30UL14 / 30UR14 = 3/0 L(R) W/1-14" SL
51.000
13.490
51.500
13.490
36UL10 / 36UR10 = 3/6 L(R) W/1-10" SL
53.000
9.490
53.500
9.490
36UL12 / 36UR12 = 3/6 L(R) W/1-12" SL
55.000
11.490
55.500
11.490
36UL14 / 36UR14 = 3/6 L(R) W/1-14" SL
57.000
13.490
57.500
13.490
WIDE MULLION
(MACHINING CODE E)
(MACHINING CODE F)
CONTINUOUS WITH 1 SIDELITE
33.490
35.490
41.490
27.490
29.490
31.490
33.490
35.490
41.490
27.490
29.490
31.490
STANDARD MULLION
A
B
C
A
B
C
48U = 4/8 DOUBLE MULLION
57.000
27.490
27.490
57.500
27.490
27.490
50U = 5/0 DOUBLE MULLION
61.000
29.490
29.490
61.500
29.490
29.490
54U = 5/4 DOUBLE MULLION
65.000
31.490
31.490
65.500
31.490
31.490
58U = 5/8 DOUBLE MULLION
69.000
33.490
33.490
69.500
33.490
33.490
60U = 6/0 DOUBLE MULLION
73.000
35.490
35.490
73.500
35.490
35.490
DOUBLE DOOR
(MACHINING CODE E)
WIDE MULLION
STANDARD MULLION
(MACHINING CODE F)
Flush with
Door Rabbet
