Regency Horizon™ HZ42STE Gas Fireplace
INSTALLATION
BATTERY & ON | OFF SWITCH INSTALLATION
DFBC = digital fi replace burner control

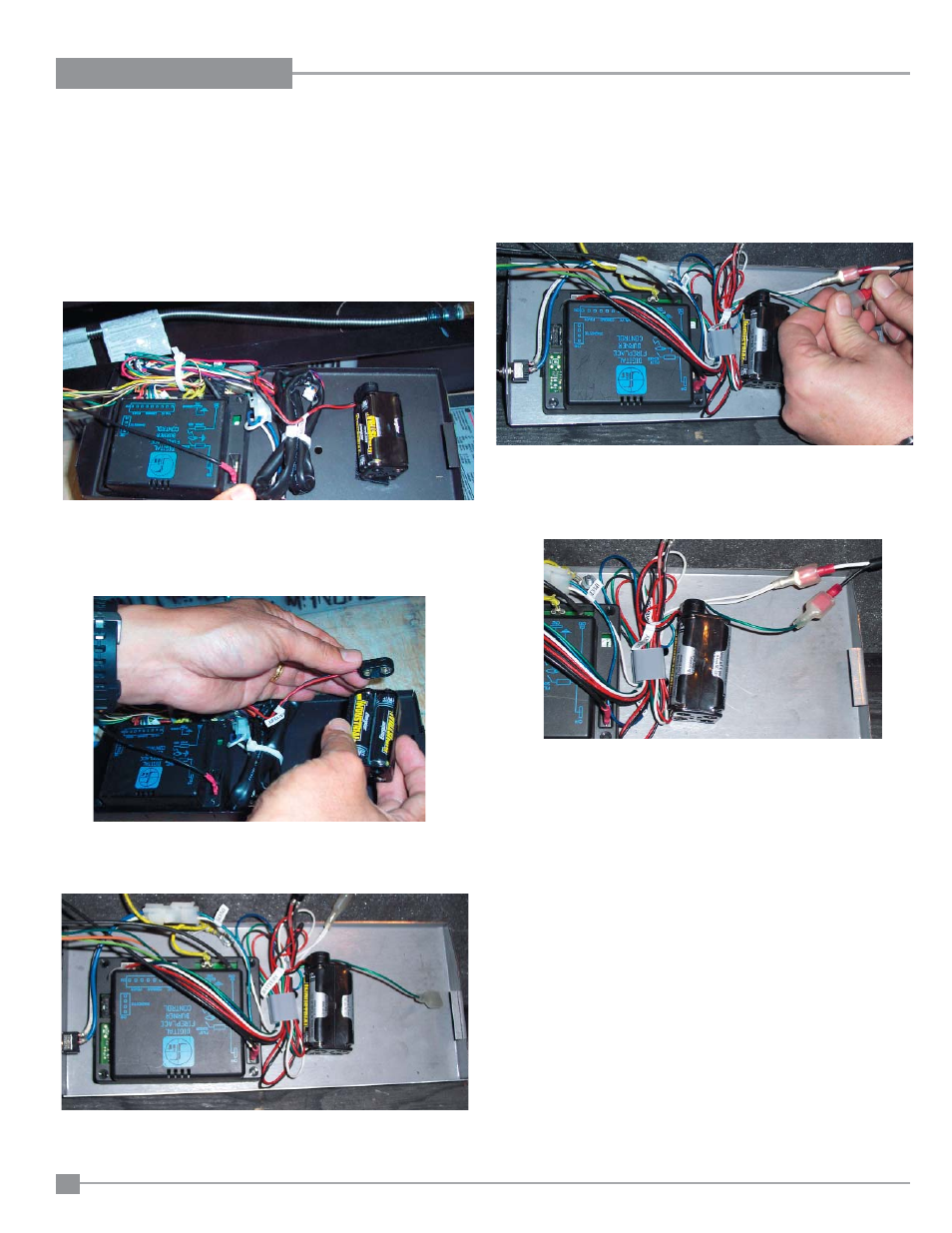

1)
Remove glass door and valve cover (see valve
cover removal section in this manual) to access to
DFBC & battery pack.
2)
Lift DFBC and battery pack up and out.
3) Disconnect connector from battery holder and remove
from tray – (battery holder is attached by Velcro to tray).
4) Install - 4 AA batteries, reconnect the connector to the
battery pack and put back onto Velcro strip
5) Locate the Green and White from the DFBC module wire
harness; connect the spade connectors from the On/Off
switch. Green to Black and White to White.
6) Reinstall the module and battery pack tray into the holder
