14
Regency Horizon™ HZ42STE Gas Fireplace
INSTALLATION

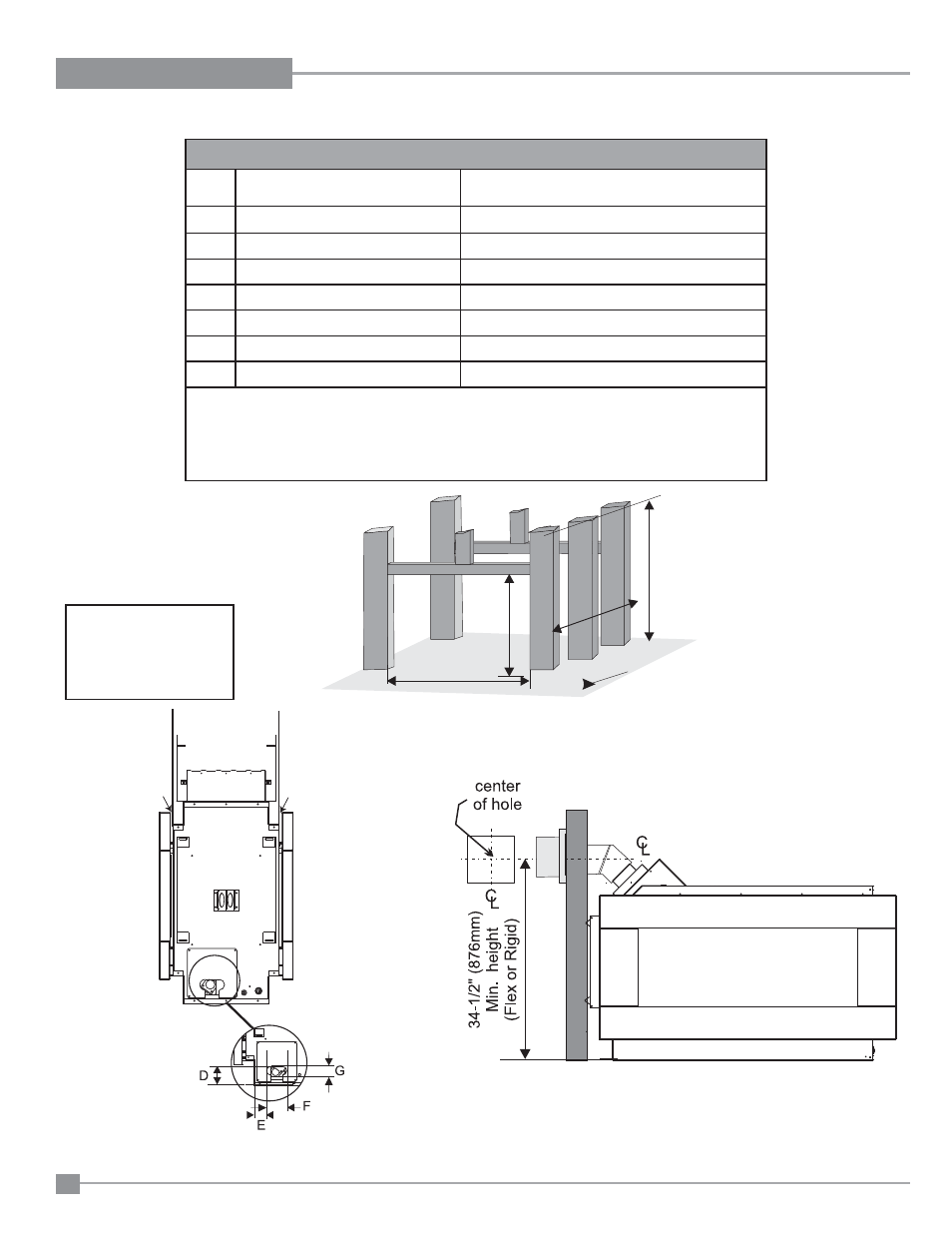

FRAMING DIMENSIONS
HZ42STE Framing Dimensions
A * Framing Depth * 15" (381mm)
**minus 2X the fi nished material thickness
B Framing Height 36-3/4" (933mm)
C Framing Width 50" (1270mm) Horizontal or Vertical Vent
D Gas Connection Height 4-1/2" (114mm)
E Gas Connection Inset 2-7/8" (73mm)
F Gas Connection Opening Width 4-5/8" (117mm)
G Gas Connection Opening Height 2" (51mm)
H Minimum Height to Combustibles 40-1/2" (1029mm)
* Framing depth measurement is noted with nailing strips (top & sides) set as far forward on the fi rebox
as possible. The nailing strips can be adjusted back up to 1" (on both sides) to allow for varying
thicknesses in non-combustible material and wall fi nishes.
**Finished material thickness includes: non combustible material, tile slate, etc.
(example framing = 13" - if 1" thick fi nishing material is used on both sides)
B
C
All studs
are metal
(on edge)
A
Finished
Floor
H
1/2” 1/2”
Note: All studs on top and sides of unit must be on edge.
Note: Gas hookup is on vent side of unit.
IMPORTANT:
1/2" gap required between
faceplate and fi nished wall.
Dangerous operating
conditions will occur if this is
not adhered to.
