Stainless Works Ford Mustang 2011-14 SideBurners Modular-Exhaust - Manual (Page 2)

WWW.STAINLESSWORKS.NET 800-878-3635 FAX: 440-543-9183

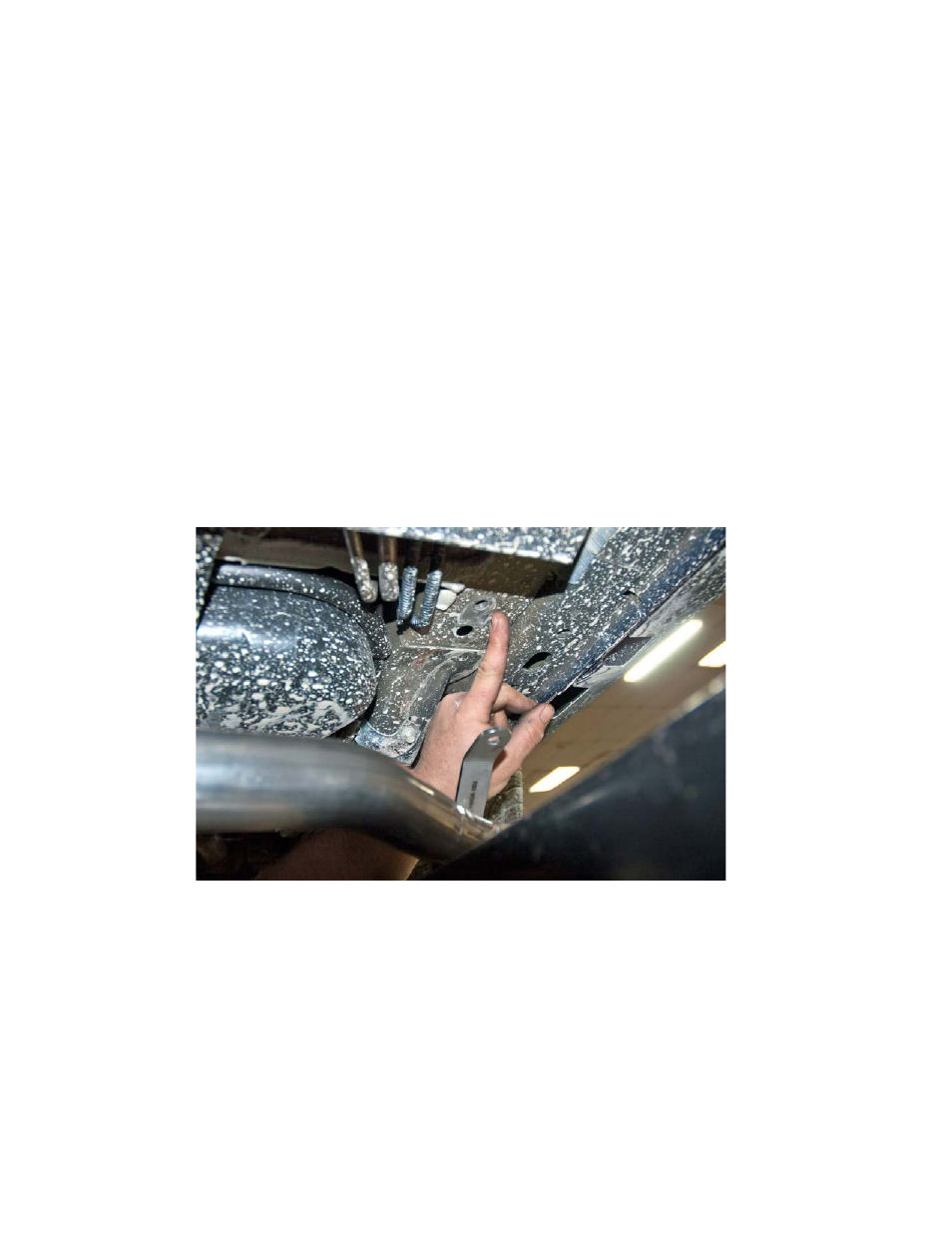

6. Locate the threaded holes in the rocker panel for the tip hangers (see photo
below).
7. The two formed half-tubes at the inlet ends of the Sideburners are formed to fit
around the 2-1/4” dia. factory exhaust. Place two of the 2-1/4” dia. clamps on
each of the factory pipes adjacent to the drilled hole locations.
8. Install the side exhaust tip onto the hangers using the provided 10mm bolts for
each side. Do not tighten yet.
9. Apply a 1/4” to 3/8” dia. bead of silicon around the drilled holes at both locations.
Install Sideburners onto factory exhaust pipes, and lightly snug up the clamps.
