Skyjacker 9150 - Manual (Page 2)

Installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Install the new Skyjacker bracket “A” (long bracket) against the slotted holes on the outside of the
frame & install the new Skyjacker backing plate bracket on the inside of the frame using the
supplied 3/8" x 1 1/2" bolts, washers, & nuts. (See Photo # 1) Models equipped with a front sway
bar will need to move the new bracket “A” back (away from the sway bar) until clearance of the
sway bar is obtained. Note: Do not tighten at this time.
4. Attach the new bracket “B” to the OEM tie rod using the supplied u-bolts, washers, & nuts. (See
Photo # 1) Note: Do not tighten at this time.
5. Attach the body end of the new Skyjacker steering stabilizer to the new bracket “A” using the
supplied bushings & washers. (See Photos # 1 & # 2)
6. Attach the shaft end of the new Skyjacker steering stabilizer to the new bracket “B” using the
supplied bushings & washers. (See Photos # 1 & # 2)
7. Extend the new Skyjacker steering stabilizer piston rod 4” (exactly half-way out). Rotate the new
brackets “A” & “B” as needed to obtain the best position & tighten all hardware.
Bracket “A”
Bracket “B”
Shock Stud
Stem Bushings
Retaining Washer
Retaining Washer
Bracket
Retaining Nut
I-7150 Pg 2

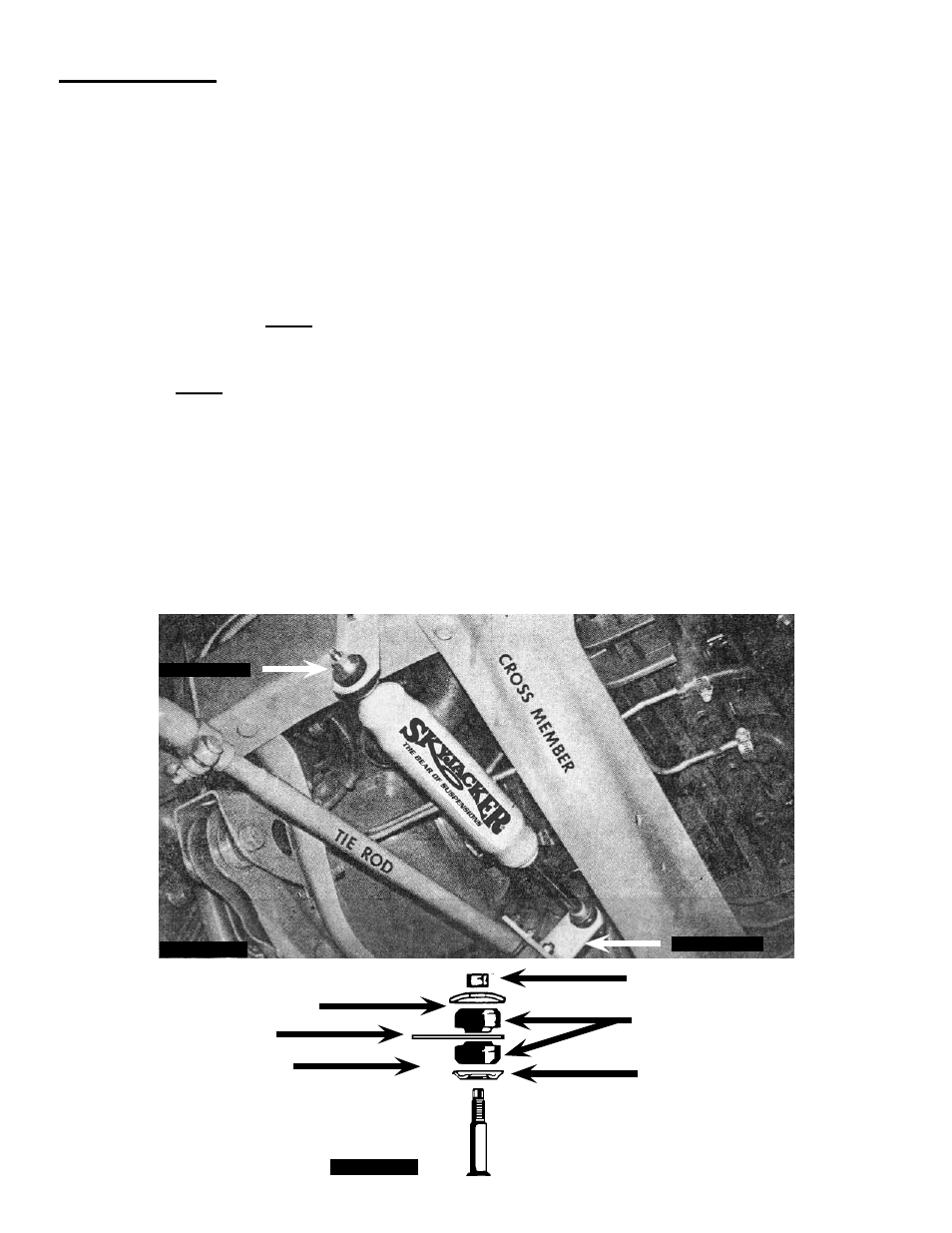

Photo # 1
Photo # 2
