Component Box Breakdown:
Part #: 7199 / 9199
Item # Description qty Item # Description qty
7000WS WHITE STEERING DAMPER 1 BTIE-K BLACK BOOT TIE 1
(Included With 7099) (Included With 9099)
9000WS SILVER STEERING DAMPER 1 HSS HYDRO SHOCK DECAL 1
(Included With 9099) (Included With 7099)
B10RS RED BOOT 1 SSD SILVER STABILIZER DECAL 1
(Included With 7099) (Included With 9099)
B10KS BLACK BOOT 1 HB-7199 HARDWARE BAG: 7199 / 9199 1
(Included With 9099) I-7099/7199 INST SHEET: 7099 / 9099 1
BTIE RED BOOT TIE 1
(Included With 7099)
Hardware Bag Breakdown:
Part # HB-7199
Item # Description qty Item # Description qty
7199-B BRACKET 1 141509 ES25 SLEEVE, 1.50" LONG 1
516X114X134U 5/16 X 1 1/4 X 1 3/4 U-BOLT 2 140629 EB6 STUD BAG 1
516CTN 5/16 COARSE THRD LOCK NUT 4 12X3FTB 1/2 X 3 FINE THREAD BOLT 1
516SAEW 5/16 SAE WASHER 4 12FTN 1/2 FINE THRD LOCK NUT 1
HOURGLASS 5/8 HOURGLASS 5/8 BUSHING 2 12SAEW 1/2 SAE WASHER 2
I-7099/7199 Pg 2
Installation: Part # 7099
1. Park the vehicle on a level concrete or asphalt
surface with the front tires / wheels pointing straight
forward.
2. Set the emergency brake & block the rear tires /
wheels.
3. Remove OEM steering stabilizer from the OEM
mounting brackets. Do not remove the OEM
brackets. (See Photo # 1)
4. Insert a new Skyjacker poly bushing & steel sleeve
into each eye of the new Skyjacker steering
stabilizer.
5. Position the new Skyjacker boot onto the new Skyjacker steering stabilizer & secure with the
supplied plastic tie.
6. Install the new Skyjacker steering stabilizer into the OEM mounting brackets using the OEM
hardware. (See Photo # 2)

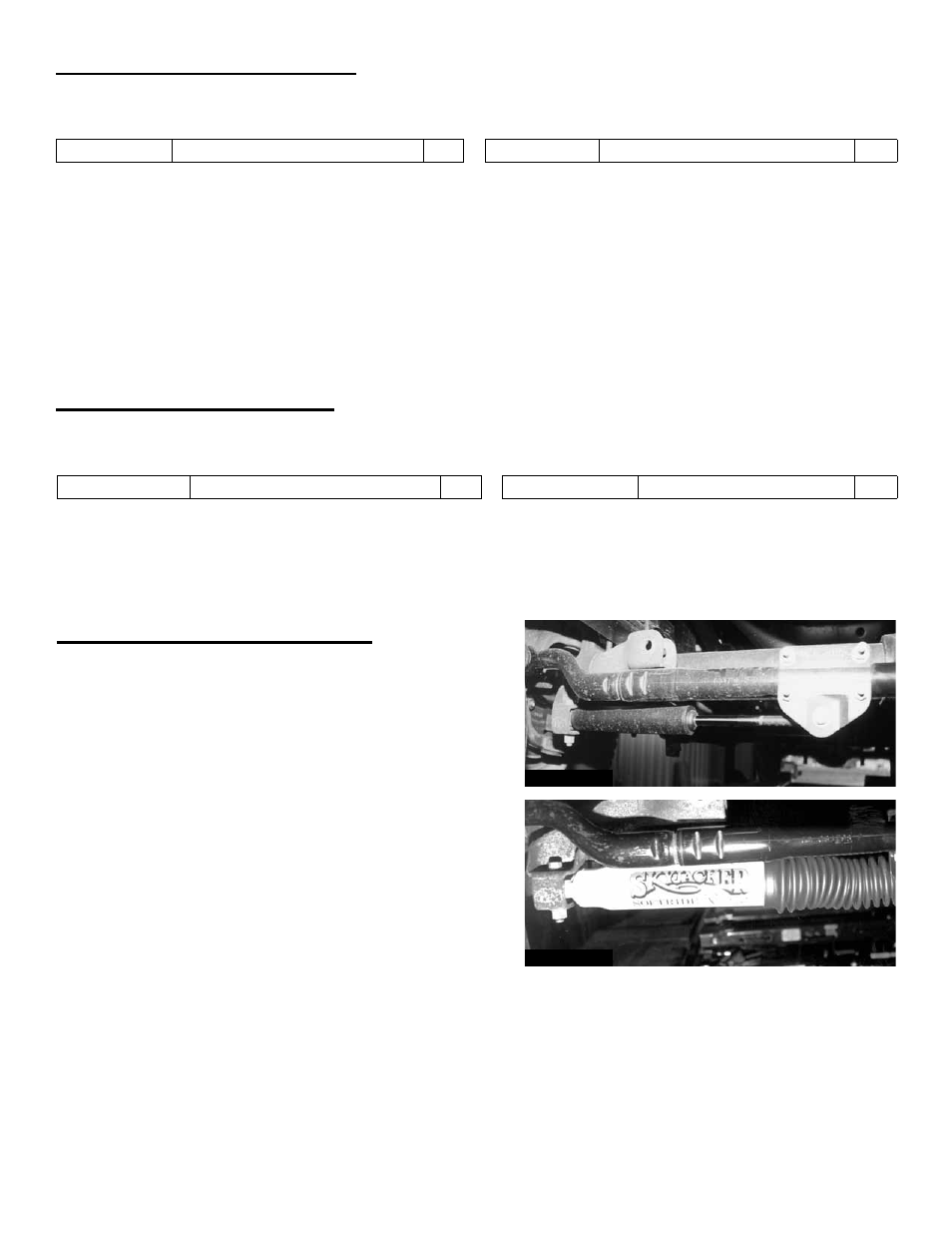

Photo # 1
Photo # 2
