installation:
1. Park the vehicle on a level concrete or asphalt surface with the front
tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Remove the OEM steering stabilizer using a 18mm socket. (See
Photo # 1)
4. Remove the OEM steering stabilizer axle bracket using a 13mm
socket. (See Photo # 2)
5. Install the new Skyjacker main bracket to the upper axle mounting
locations using the supplied crush sleeves, 10mm x 30mm bolts,
washers, & a 17mm socket. Note: The new crush sleeves will be
installed between the axle & the new main bracket. (See Photo # 3)
6. Install the new Skyjacker main bracket to the lower axle mounting
locations using the OEM hardware & a 13mm socket. (See Photo
# 4)
7. Install the new Skyjacker 3/8" x 4" x 5 5/8" u-bolt from
the rear of the axle tube using the supplied 3/8"
washers, nuts, & a 9/16" socket. (See Photo # 5)

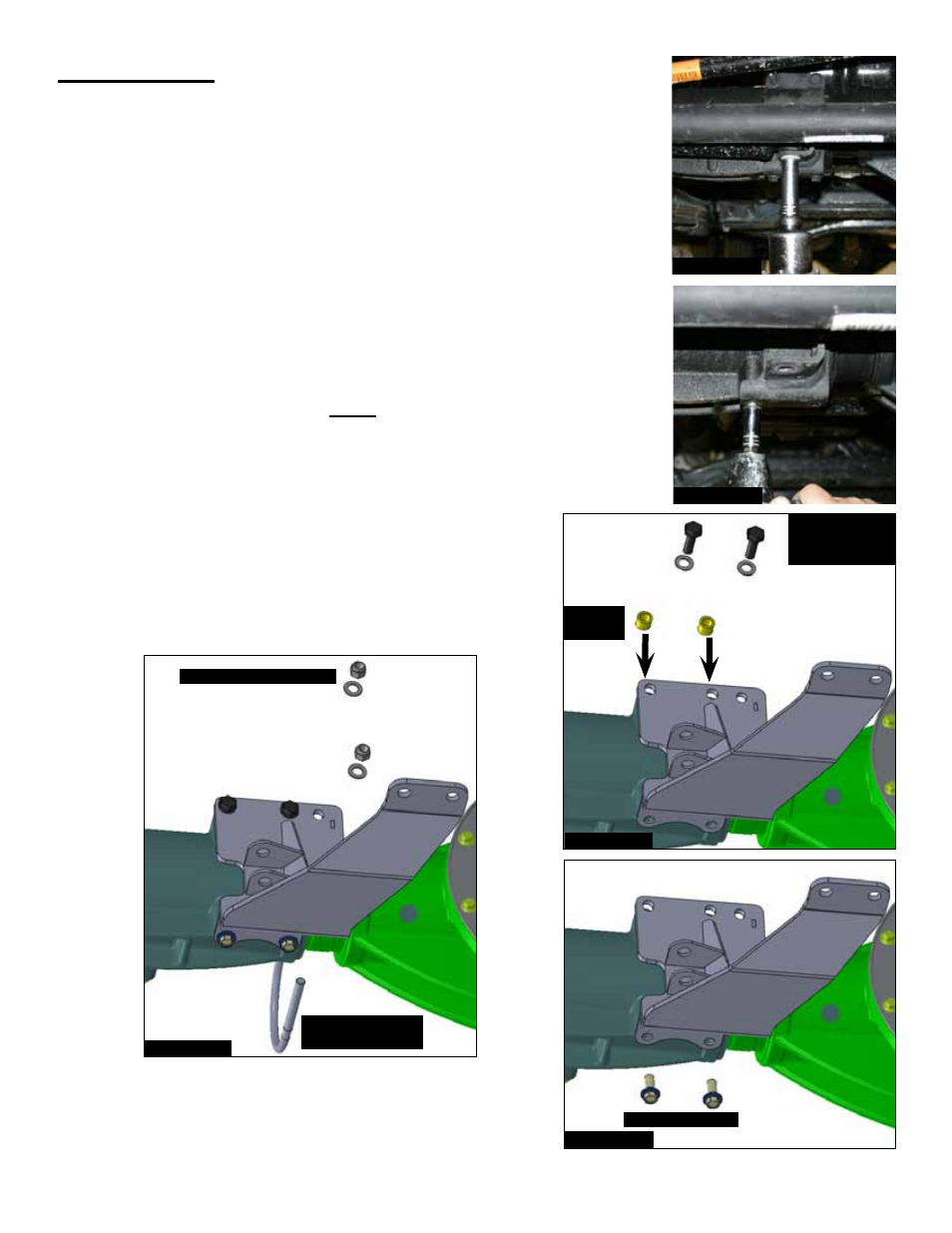

Photo # 1
Photo # 2
Photo # 3
Crush
Sleeves
Photo # 4
oeM Hardware
Photo # 5
3/8" Washers & Nuts
10MM x 30MM
Bolts & 3/8"
Washers
3/8"x 4" x 5 5/8"
u-bolt
