Front Installation:
1. With the vehicle on flat level ground, set the emergency brake &
block the rear tires.
2. Place a floor jack under the lower control arm’s front cross member
& raise the vehicle. Place jack stands under the frame rails, behind
the front wheel wells & lower the frame of the vehicle onto the jack
stands.
3. Remove the front tires / wheels.
4. Remove the ABS line from the upper A-arms using a 10mm socket &
disconnect the ABS / brake line from the steering knuckle. (See
Photo #1)
5. Disconnect the outer tie rod from the steering knuckle using a tie rod
remover or other suitable tool. (See Photo #2)
6. Disconnect the lower strut mount from the lower A-arm & disconnect
the sway bar end link. (See Photo #3)
7. Disconnect the upper A-arm ball joint from the top of the steering
knuckle using a ball joint remover or other suitable tool. (See
Photo #4)
8. Remove the upper strut mounting bolts from the upper frame mount
& remove the strut. (See Photo #5)
9. Using a spring compressor, unload the tension on the upper mount
of the coil assembly. Remove the upper strut retaining nut & remove
the strut from the bottom. (See Photo #6)
Pg 2 I-TT430ST
Kit Box Breakdown:

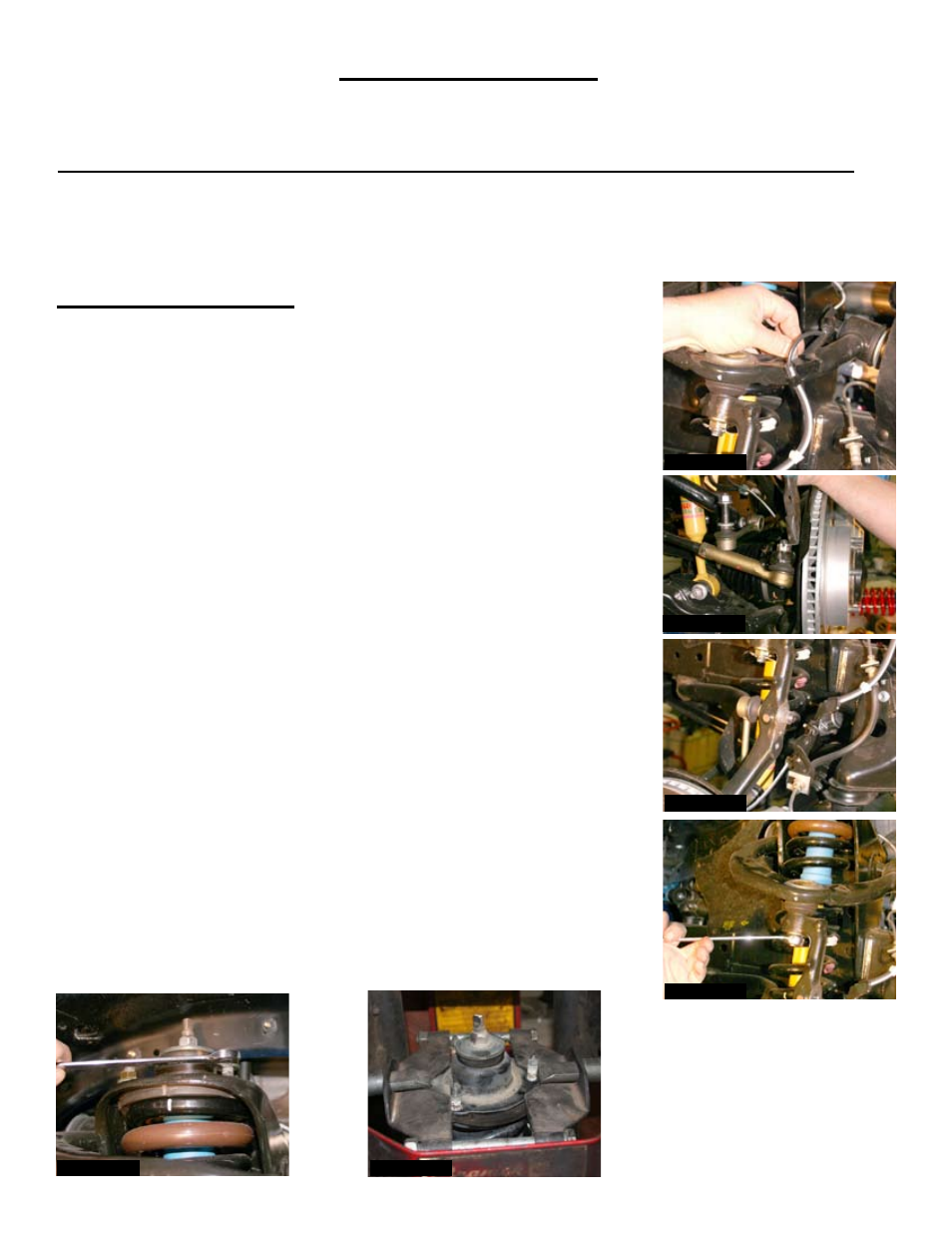

Photo #1
Photo #3
Photo #4
Photo #2
Part #: TT430ST
ITEM# DESCRIPTION QTY
413STS TOY 1-3" ADJ PERF STRUT 2
UTWR 4 U-BOLTS/916X212X7 SQUARE 1
I-TT430ST INST SHEET: 3" TOYOTA STRUT 1
Photo #5 Photo #6
