Chapter 3 Using Front Display
Display Operations
PM135 Powermeter Series
57
Relay outputs status

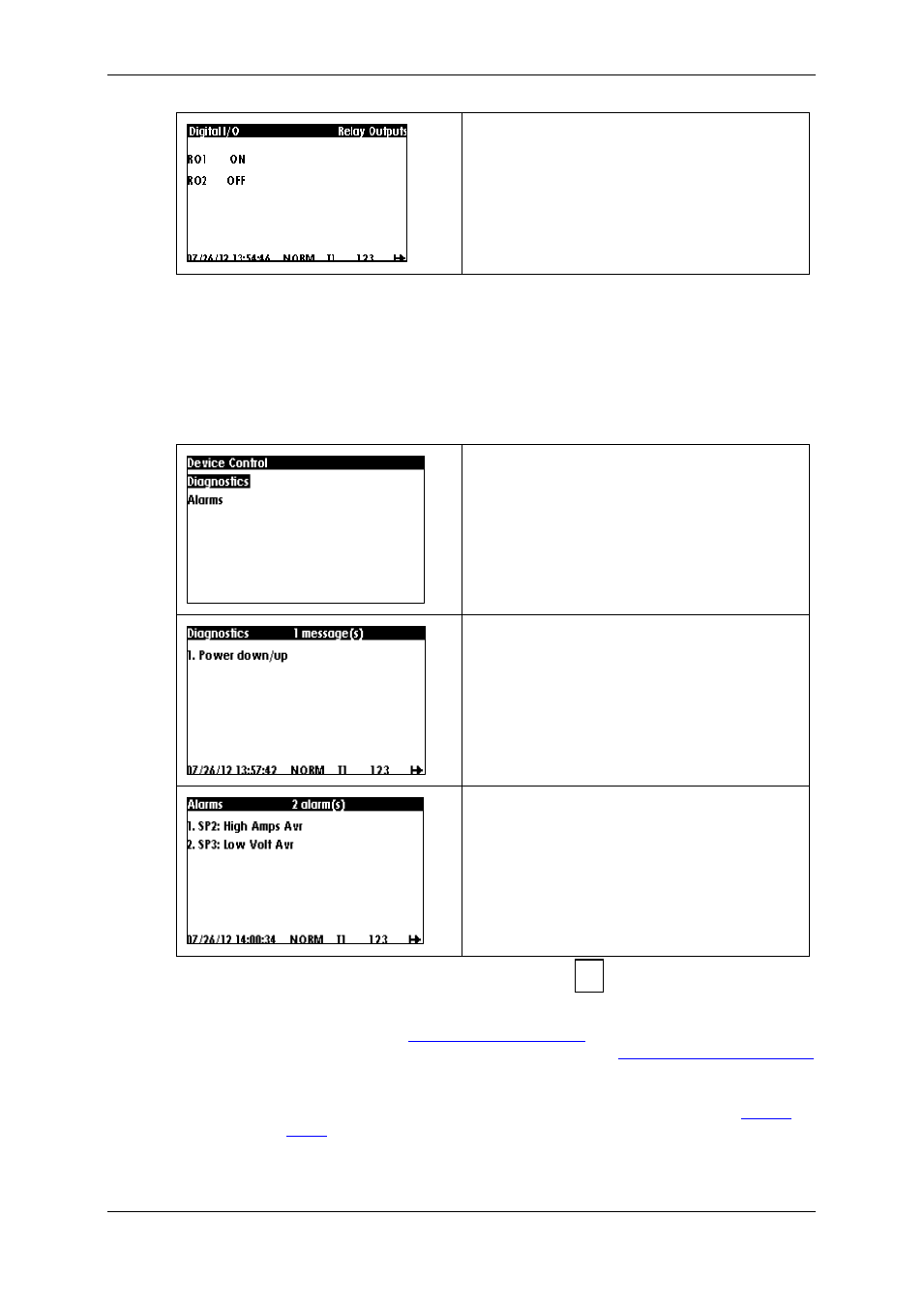

Device Control Display
The device control display shows two sub-menus: "Diagnostics" and
Alarms". The diagnostics display shows device diagnostic messages
recorded as a result of the meter self-test diagnostics during start-up and
operation, the alarm display shows a list of operated alarm setpoints
along with the alarm trigger labels if there are alarms recorded during
meter operation.
Device Control sub-menu, use the UP/DOWN button
to select whether Diagnostics or Alarms displays
List of diagnostics messages
List of alarms messages
If there are diagnostic messages, the diagnostic green led on the
device panel flashes until you clear the device diagnostics. Some of the
diagnostics events are cleared automatically as the event source
disappears. See
in Appendix H for a full list of
diagnostic messages and their meanings. See
for information on how to clear the device diagnostics from the display
and via PAS.
The diagnostic Led indication can be disabled or enabled via the
Display
Setup
menu.
