Chapter 3 Using Front Display
Display Operations
40
PM135 Powermeter Series
Chapter 3 Using Front Display
This chapter provides PM135 Power meter series front panel information
and operating procedures.

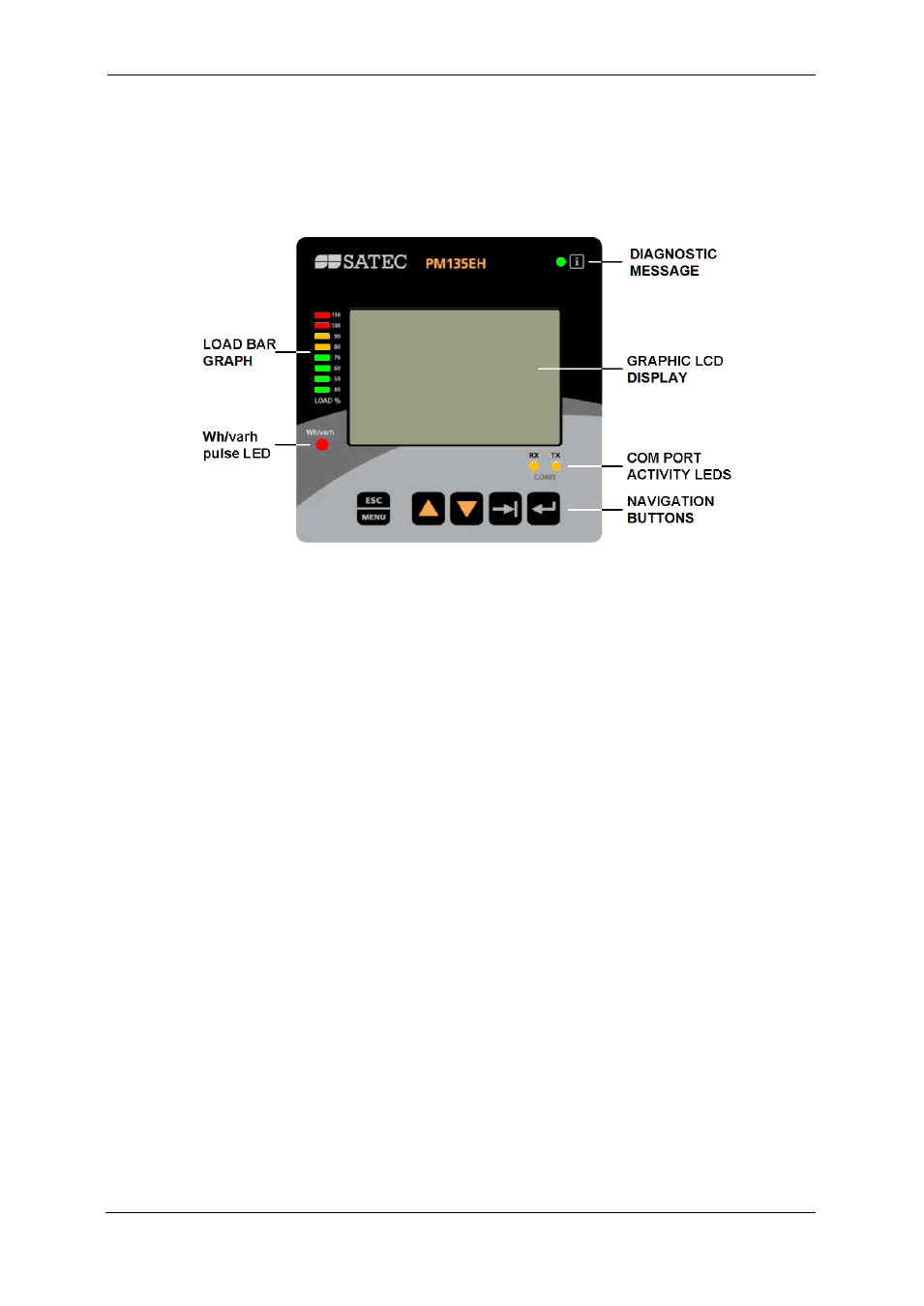

Figure 3-1: PM135 Unit
3.1 Display Operations
The PM135 has a high-contrast graphical LCD display with backlight for
local data read outs, meter setup and servicing.
The display operates in two modes:
Multi-page data display mode with Auto-Scroll
feature allows you to scroll through display screens
and pages to view various billing, instrumentation
and status data.
Programming mode allows you to enter menu-driven
device setups for inspecting and changing factory
set meter parameters, or resetting maximum
demands,
counters
and
device
diagnostics
messages.
The display is normally updated once per second.
