Chapter 3 Using Front Display
Display Operations
50
PM135 Powermeter Series

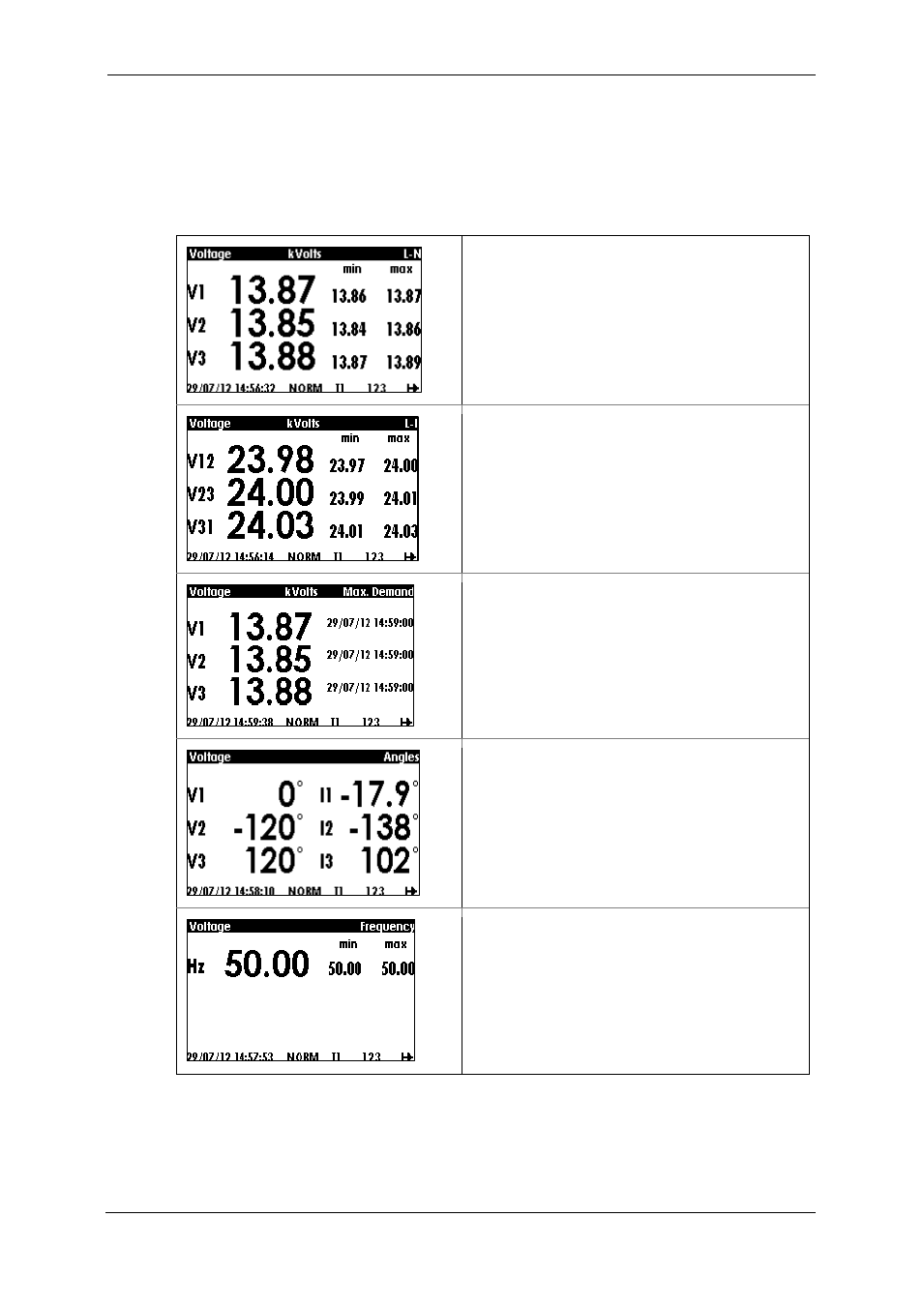

Measurements Data Display
Measurements data represent general instrumentation data you can use
while installation and inspecting the meter. Use phase angles displays to
check the order of phases when connecting wires to the meter terminals.
Use the UP/DOWN button to scroll to the desired data display
Phase-to-neutral voltages. Only displayed in 4-wire
configurations with a neutral.
Phase-to-phase voltages
Phase-to-neutral voltages maximum demand with
time stamp
Phase voltage/current angle
Line frequency
