MAINTENANCE AND SERVICING
Form 169454
74
Revision A

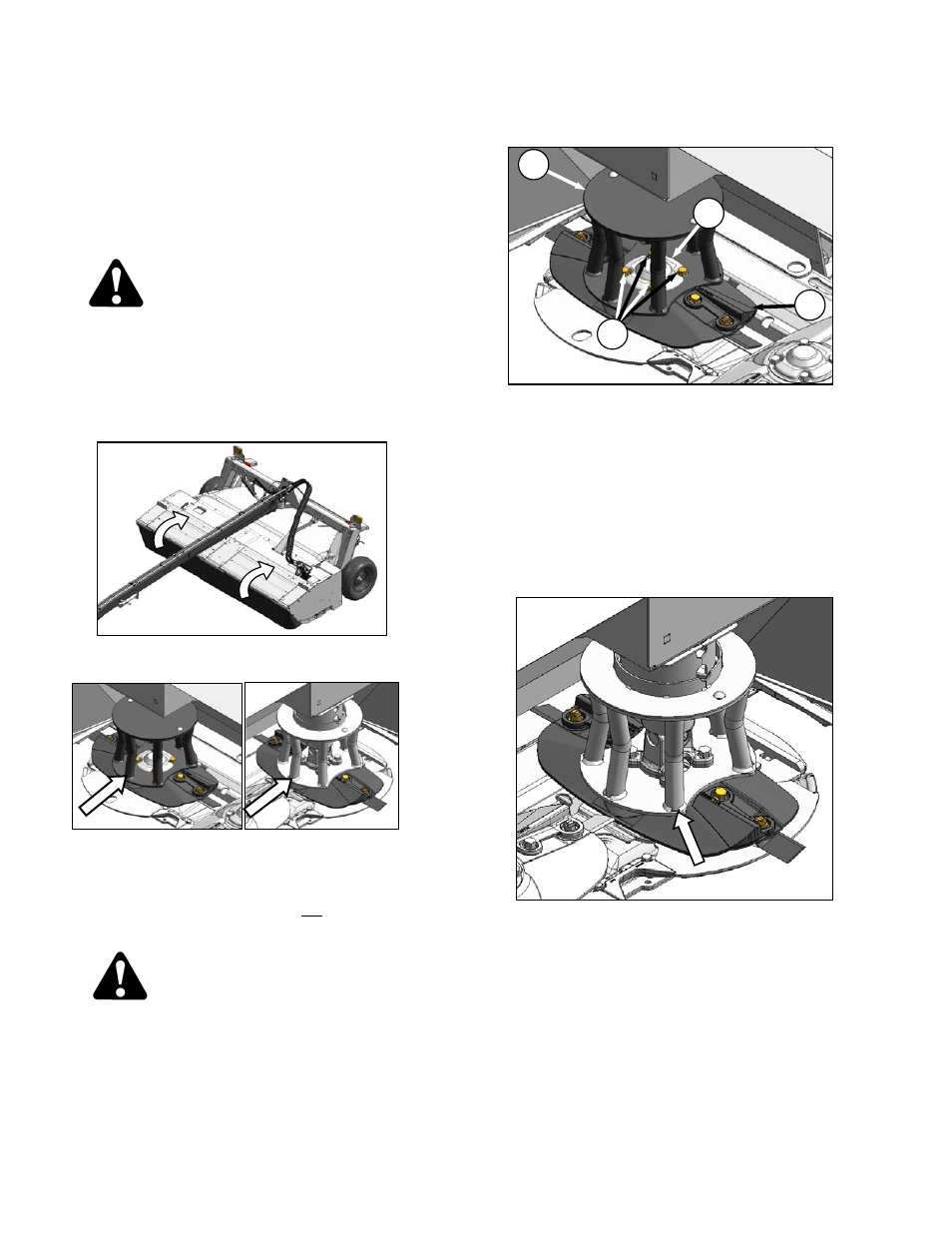

7.8.6 Rotary Deflectors
The rotary cage deflectors are designed to
deliver the cut material from the ends of the
cutterbar, and to assist in maintaining the even
flow of crop into the conditioner.
They should be checked daily for damage or
wear.
DANGER
Stop engine, and remove key from ignition
before leaving Operator's seat for any
reason. A child or even a pet could engage
an idling machine.
a. Lower header to ground, shut off engine, and
remove key.
b. Open cutterbar doors.
c. Check that deflectors are not damaged or bent
by rocks, and for loose fasteners.
d. Replace deflectors if they are severely damaged
or worn. See next section. Do not repair.
e. Tighten loose fasteners.
WARNING
Ensure cutterbar is completely clear of
foreign objects. These objects can be
ejected with considerable force when the
machine is started, and may result in
serious injury or machine damage.
f. Close cutterbar doors.
7.8.6.1 Deflector Removal/Installation
a. To replace driven deflector:
1. Remove four bolts (A).
2. Remove cover (B) and deflector (C).
3. Position new deflector (C) on spindle so that
it clears accelerators (D).
4. Install cover (B), and secure with four bolts
(A).
5. Tighten bolts to 92 ft·lbf (125 N·m).
6. Close cutterbar doors.
b. To replace driveline deflector:
Refer to the Technical Service Manual or your
MacDon Dealer.
C
B
A
D
