MacDon R85 Rotary Disc 13 Foot Pull-Type User Manual
Page 28
OPERATION
Form 169454
26
Revision A
f.

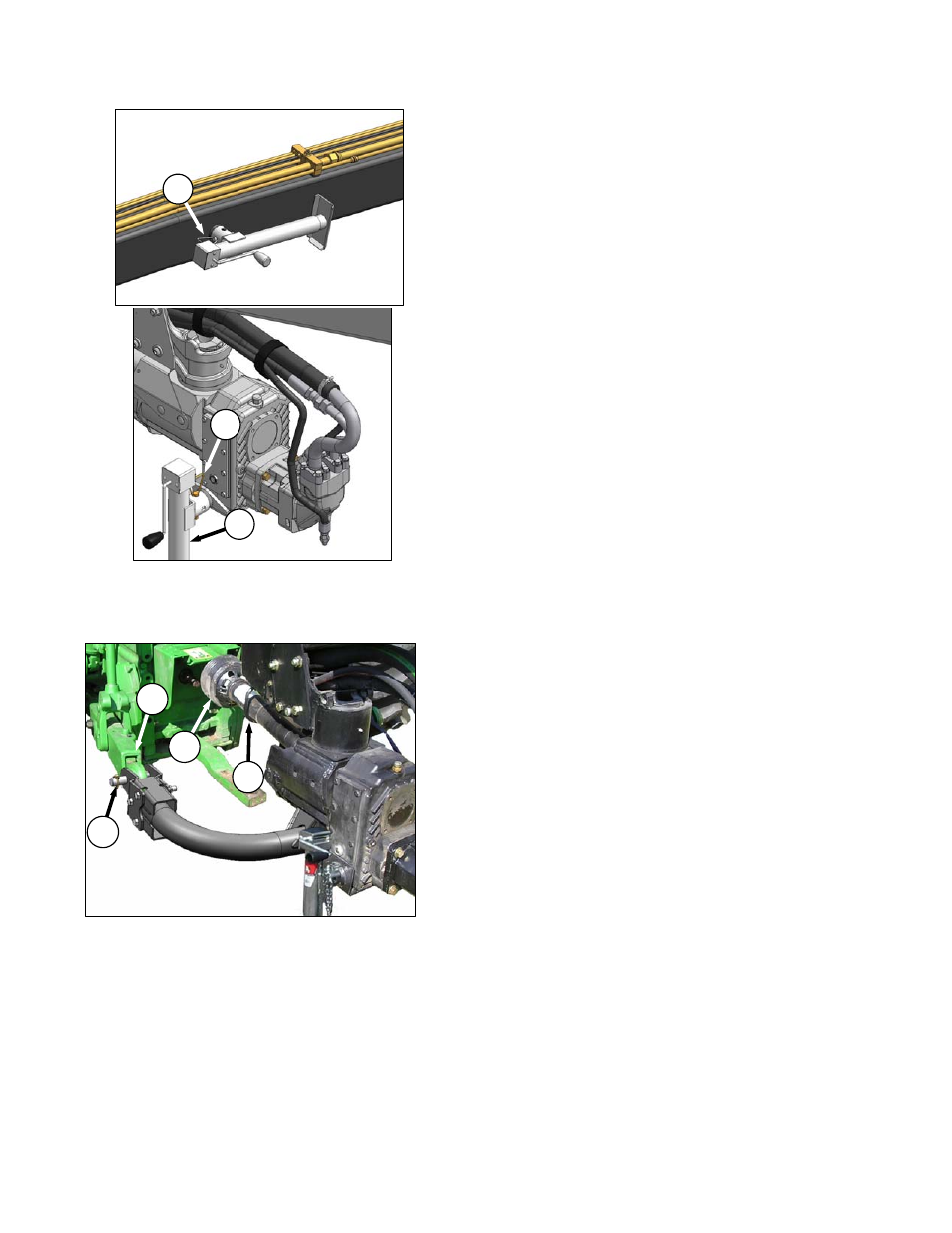

Pull pin (A) securing jack (B) at storage location,
and move to “working” position at front of APT.
Secure jack with pin (A).
g. Pull back collar on driveline (E), and slide
coupler off tractor PTO shaft.
h. Rotate hook (F) to “lower” position, and place
driveline in hook.
i. Lower jack to raise APT and take weight off
hitch arms.
NOTE
If tractor is equipped with a “quick hitch”
system, pins (G) do not need to be
removed.
j. Remove lynch pins (G), and swing hitch arms
(H) clear of APT.
k. Slowly drive tractor away from mower
conditioner.
A
A
B
E
F
H
G
