UNLOADING & ASSEMBLY
PREPARE HEADER FOR WINDROWER OR COMBINE (continued)
Moving Motors From Inboard to Outboard
1. The following parts must be purchased from
your dealer:
30' Header
Part No. 43615 - Hose , quantity 2
Part No. 101916 - R/H Line, quantity 2
Part No. 30558 - Union, 7/8 JIC, quantity 2
Part No. 32225 - Holder, quantity 4
Part No. 37167 - Holder, quantity 4
Part No. 50197 - Bolt, Carr. 3/8 x 1-3/4, qty.4
Part No. 30228 - Nut, Lock 3/8, Quantity 4
Part No. 103188 - Support, Quantity 1
Part No. 21484 - Bolt, Carr. 3/8 x 1-1/2, qty.1
36' Header
Part No. 43615 - Hose , quantity 4
Part No. 43671 - L/H Line, quantity 2
Part No. 43667 - R/H Line, quantity 2
Part No. 30558 - Union, 7/8 JIC, quantity 3
Part No. 32225 - Holder, quantity 6
Part No. 37167 - Holder, quantity 6
Part No. 50197 - Bolt, Carr. 3/8 x 1-3/4, qty.6
Part No. 30228 - Nut, Lock 3/8, Quantity 6
Part No. 103188 - Support, Quantity 1
Part No. 21484 - Bolt, Carr. 3/8 x 1-1/2, qty.1
2. Loosen and remove drapers.
3. Remove hoses from draper drive motors.
4. Remove hardware connecting opening
adjustment bars to deck and remove complete
drive roller assembly.
5. Remove drive roller assembly from opening
adjustment bars.
6. Remove hardware connecting idler roller
assembly to tensioning bars.
7. Install idler roller assembly on opening
adjustment bars.
8. Attach drive roller assembly to tensioning bars,
using hardware from inboard end. At R/H side,
install support 103188 as shown, using 1-1/2"
long carriage bolt instead of 1".
9. Install idler roller assembly in deck and adjust
opening size. See page 73.

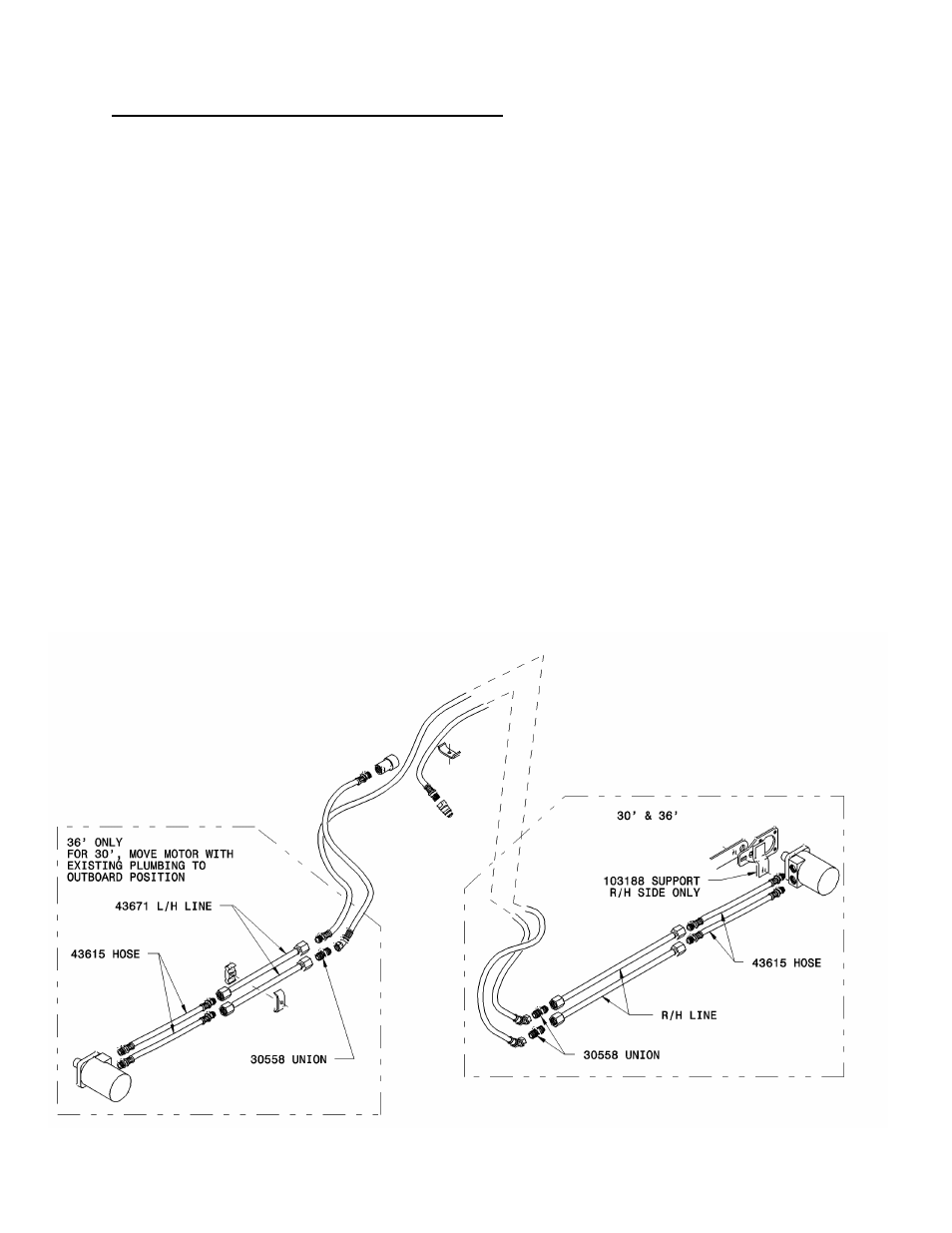

10. Route hoses as shown.
